Applicable Materials:
Non-metal materials, such as marble, granite, acrylic, wood, glass, crystal, cloth, leather, rubber, paper, ceramic tile, etc.
Applicable Industries:
Widely used in monument(tombstone/gravestone/marble/granite) processing industry, souvenirs, leather, gifts, clothes, models, ornaments, paper, etc.
Machine parameter :
Machine Model | FW-1390/6090 |
Working Area | 1300x 900mm/600*900mm |
Laser Power | 60W/80W(optional) |
Laser Type | Co2 laser tube |
Laser Power Control | 10% -100% software setting |
Engraving Speed | 0-66000mm/min |
Preposition Accuracy | ±0.01mm |
Min. Shaping Character | English 1*1mm |
Resolution | 4500DPI |
Graphic Format Supported | BMP, AI,DST, CDR, PLT, DXF, JPG, PGN |
Software Supported | CorelDraw, Photoshop, AutoCAD,LaserCut, Tajima |
Driving System | Stepper motor |
Control System | Ruida system |
Cooling Mode | Water cooling |
Working Voltage | AC 110 - 220V ± 10%, 50 - 60Hz |
Package | Wooden case |
Net Weight/Gross Weight | 510KGS/580KGS |
Package Dimensions | 2160mm* 1560mm* 1280mm |
Standard Accessories | Honey comb worktable Exhaust fan and exhaust pipe Air pump RUIDA System Control and Software Imported focus lens and reflecting mirrors Red light pointer tool box English user manual |
Optional Parts | Rotary attachment Knife worktable Up-down table(Z axis) |

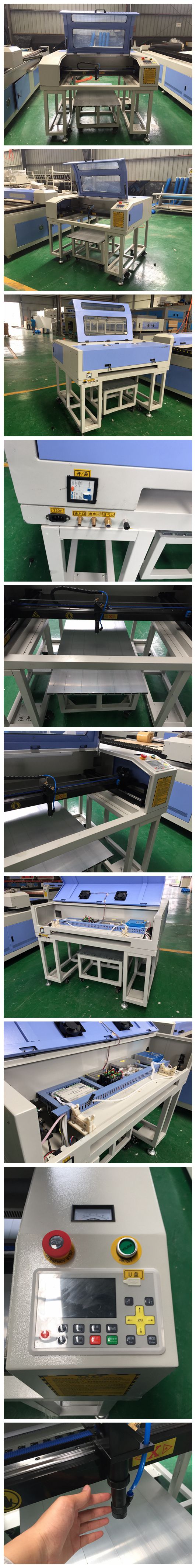

Machine spare part pictures
