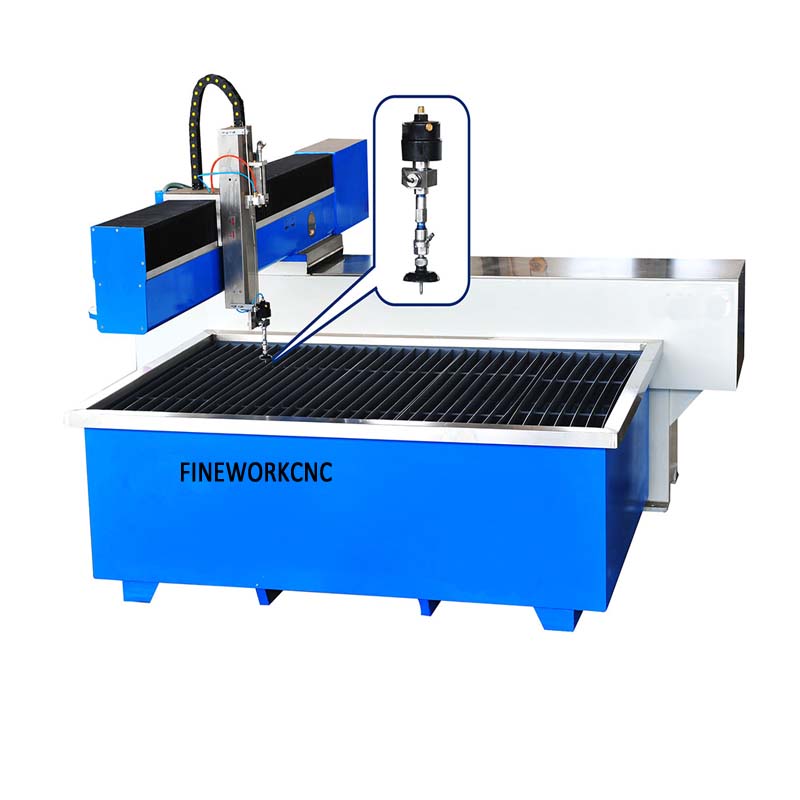

water jet cutting machine

Product ID : FW-1530

Product Attributes :

Product Description

This is a waterjet cutting machine which is popular with stones and tiles businessman.

Compared with the classical 3axis waterjet machine,AV-5axis jetting machine could be straight

 cutting and angles cutting.Its cutting application is wider. Compared with the traditional 4axis waterjet machine,AV-5axis jetting machine could auto
adjust the cutting angles.Its cutting precision would be higher and cutting speeo would be faster. When you need to cut the stones and ceramic tiles as the floor inlay,you couldchoose the 2-4 degrees
and realize any shape cutting.
No need for the secondary machining after the cutting.It can help you save the production costespecially
 the places which own not too much population or labor cost is huge high. Due to the high-pressure water line has the feature of distribution, if you choose straight cutting
and the lower surface would be bigger than the upper surface.

So that if you request the surface between the upper and lower is the sameespecially
when you need to cut the metals the better way is to choose small angles cutting Each of the metals,
like steel platestainless steel platealuminum platecopper plate.
You can cut with different angles according to your machining requirement, and the precision would be higher.

Item	Water jet cutting machine
Model	1313	1325	1530	2515	2030	2040
Working size (mm)	1300*1300	1300*2500	1500*3000	2500*1500	2000*3000	2000*4000
Cutting Degree	AV 5 axis +-5 degree
Noise level	< 90db
Cutting Accuracy	+/- 0.02mm
Maximum pressure	413Mpa(60000psi) Axial Plunger pump
Maximum flow rate	3.8L/min Hydraulic system
Power supply	380v 50HZ 3P Hp Cylinder only support 380V three phase
Motor rated power	66A
Motor	Japan servo motor and driver
Screw	TBI/ Taiwan enterprise
Guide-way	Hiwin/ Taiwan enterprise

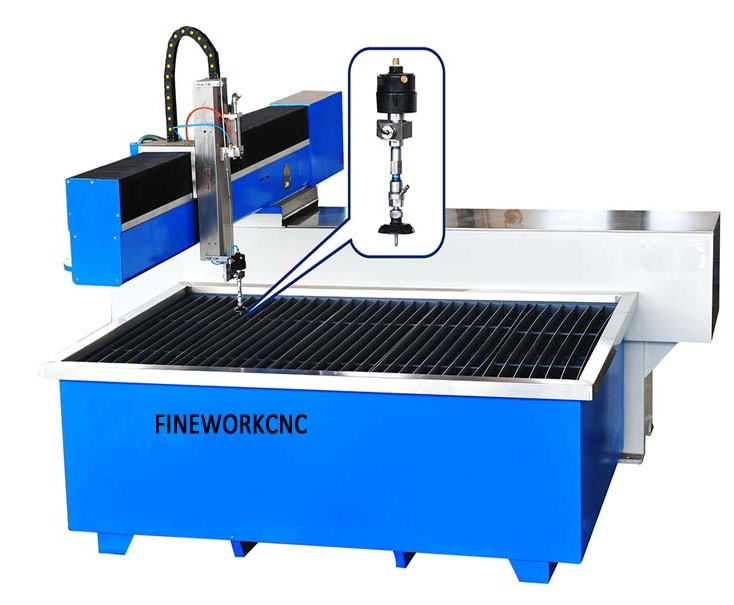

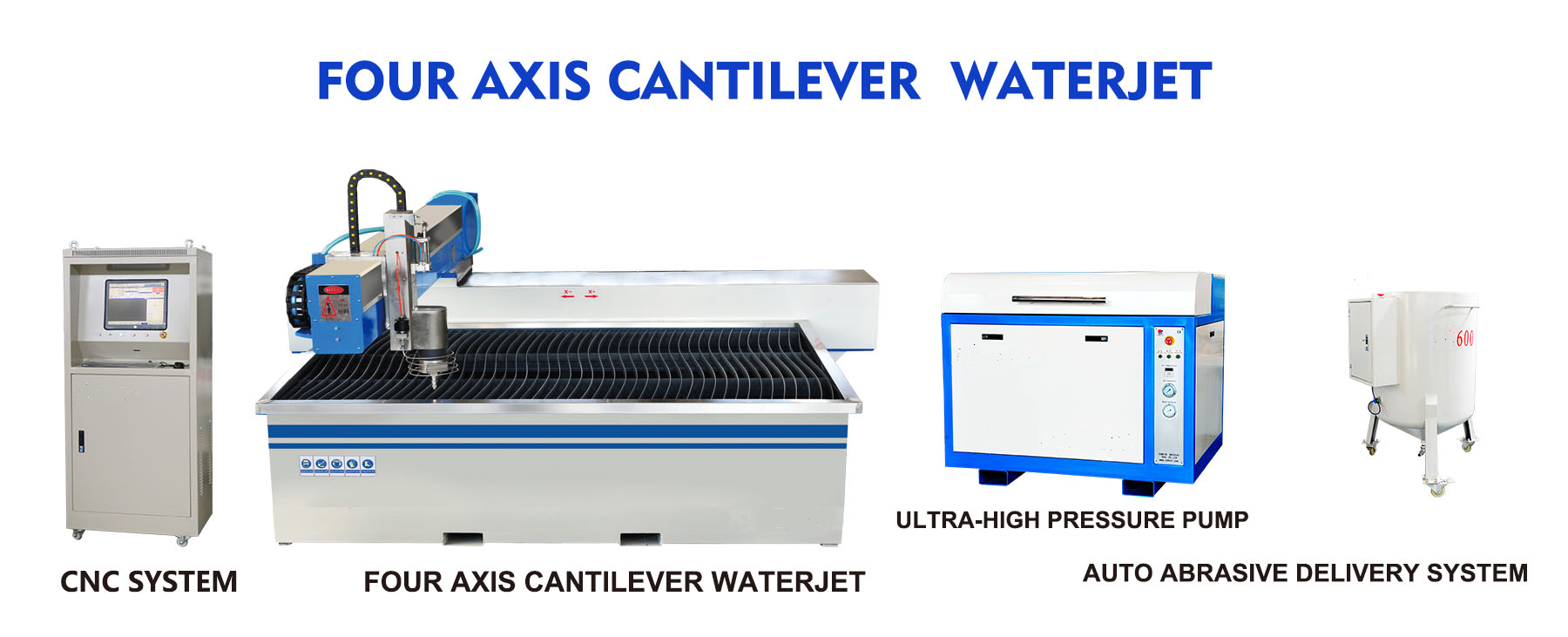

CUTTING TABLE

Cutting Tank:Tank is welded by double steel plate total weight is up to3000-4000kgs.Strong tank ensures the cutting being more stable. Servo Motor:Machines running is driven by famous brand servo motor.Servo motor can better improve cutting precision. Screw &Guide Rail:HIWIN ball screw &quide rail. with oil-immersed structurecan make cutting being more precise and protect elements. Sand Valve:Patent design of sand valvecan save10%-15% sand per hour.It can help customers ive more cost.

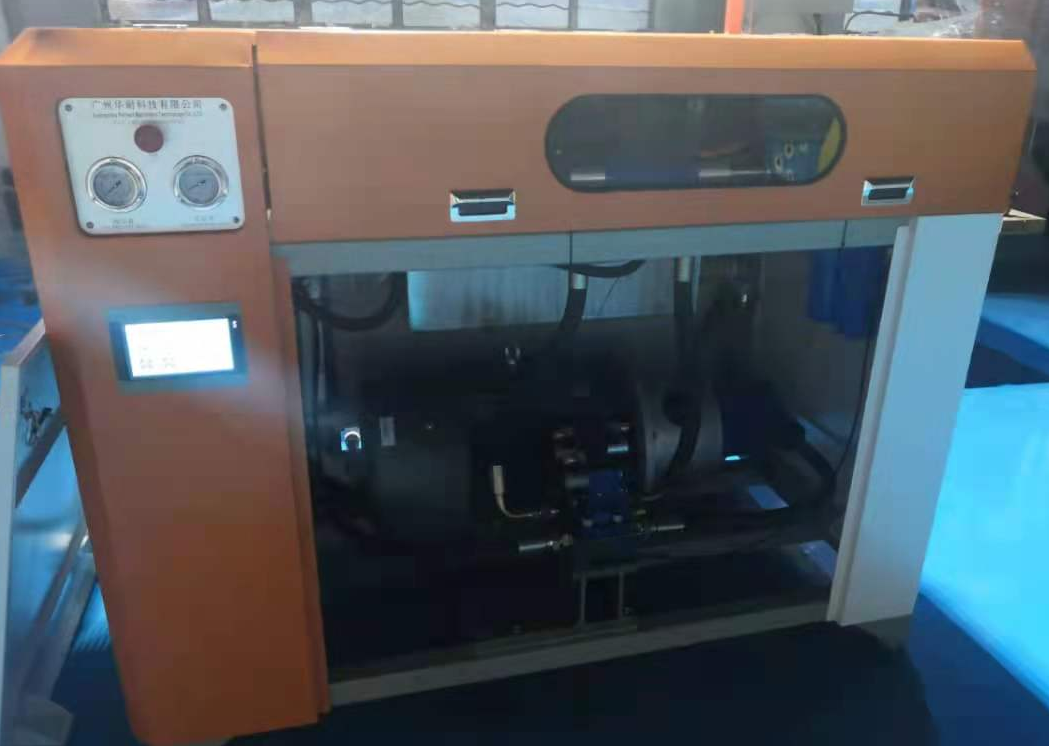

INTENSIFIER PUMP

Pump Motor:37kw/50hp Siemens motor is equipped in the pumpcan better help cut being thicker faster more stable Electrical Equipment:ABB famous Germany brans as AC contactor.Fully protect using safety for elec- tricity and being more stable. Detection Device:Micro touch screen computer detects equipments statecan help customer oper- ate. and do the maintenance easier. Cooling Device:Wing cooling structure is equipped inside the pump; better help save the spaces and protect elements.

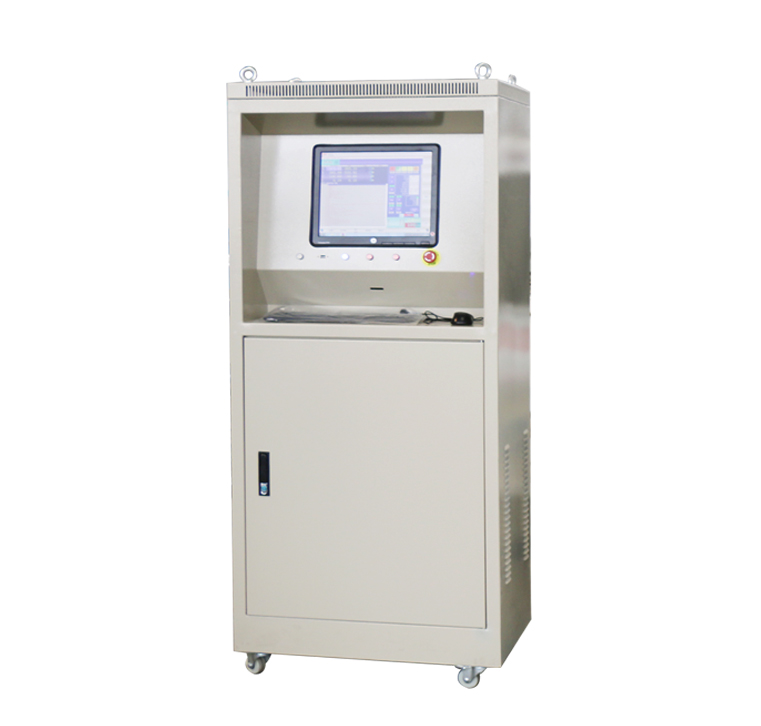

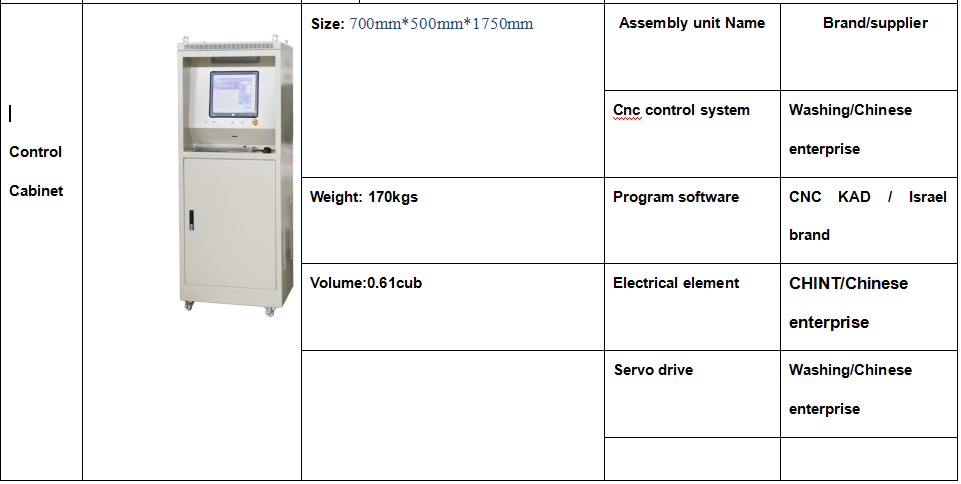

CONTROLCABINET

 Cutting Software:NcStudio software,has English& Chinese language,help new uses better study operation easier and faster Servo Driver:A series of servo drivers are arranged inside the cabinet detect the machinesrunning all the time. Operate Device:Wireless keyboard & mouseas easier operate devicebetter help improve the working efficiency.

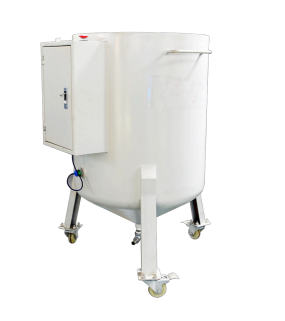

ABRASIVE FEEDER

FUNCTION:Use pneumaticstechnologyrealize automatic sand supply. FEATURE:Automatic;high efficiency;less cost ADVANTAGE:Can provide two machinesworking100L can provide 300-500mins sand quantity.
