Machine parameter :
| Working area | 1600*1000mm |
Laser tube | 80W/100W/150W/180W |
Transmission system | Fulong belt and HIWIN guild |

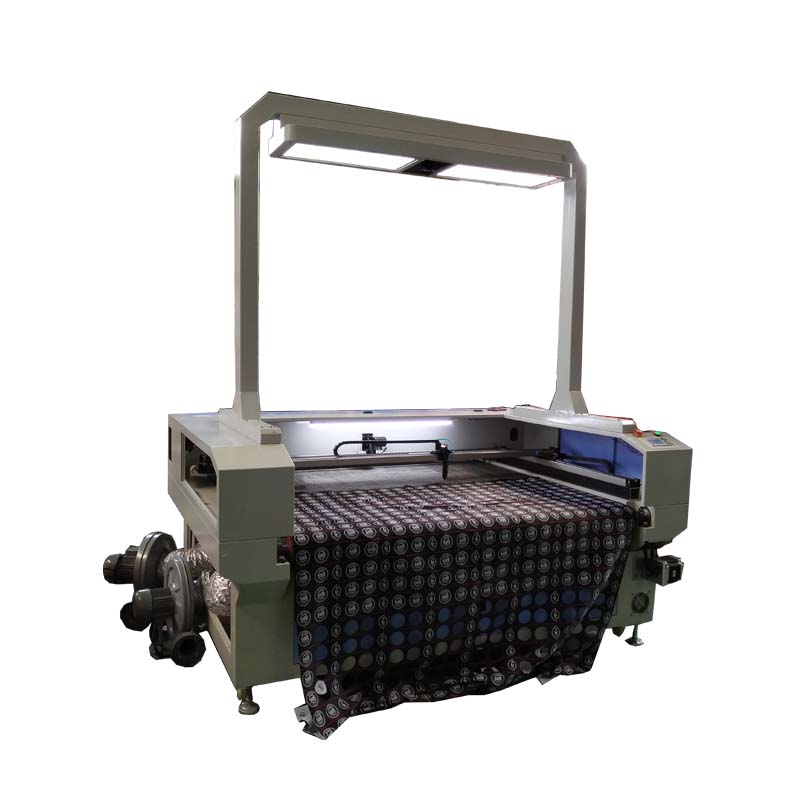

Big CCD camera | 1 set |
Driving system | Leadshine step motor and driver |
Working table | Conveyor platform with auto feeding system |
Cooling Type | Water cooling |
Working Speed | 0-400mm/s |
Laser Output Control | 0-100% |
Min. Engraving Size | Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm |
Highest Scanning Precision | 2500DPI |
Locating Accuracy | ≤ ±0.01mm |
Control Software | Laser cut |
Graphic Format Supported | DST, PLT, BMP, DXF, AI |
Compatible Software | CORELDRAW,PHOTOSHOP, AUTOCAD, TAJIMA ,etc. |
Power Supply | AC110V/220V+10%,50HZ/60HZ |
Working Environment | Temperature:0-45C,Humidity 5-95%(No Condensate Water) |
Machine working video :
1.FW1610 Big camera hang up cutting 200mm/s speed
2.FW1610 Big camera hang up cutting 400mm/s speed

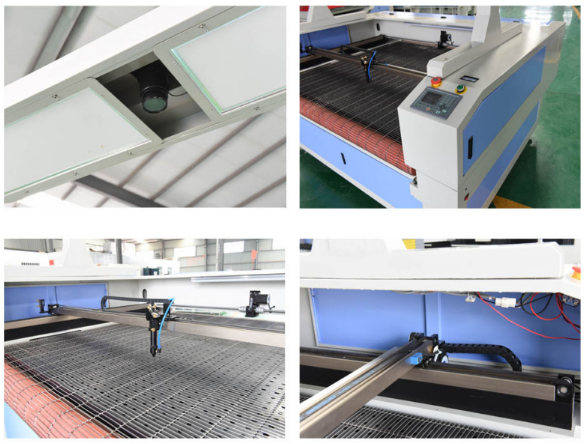

Machine spare part show :
Machine sample show :
