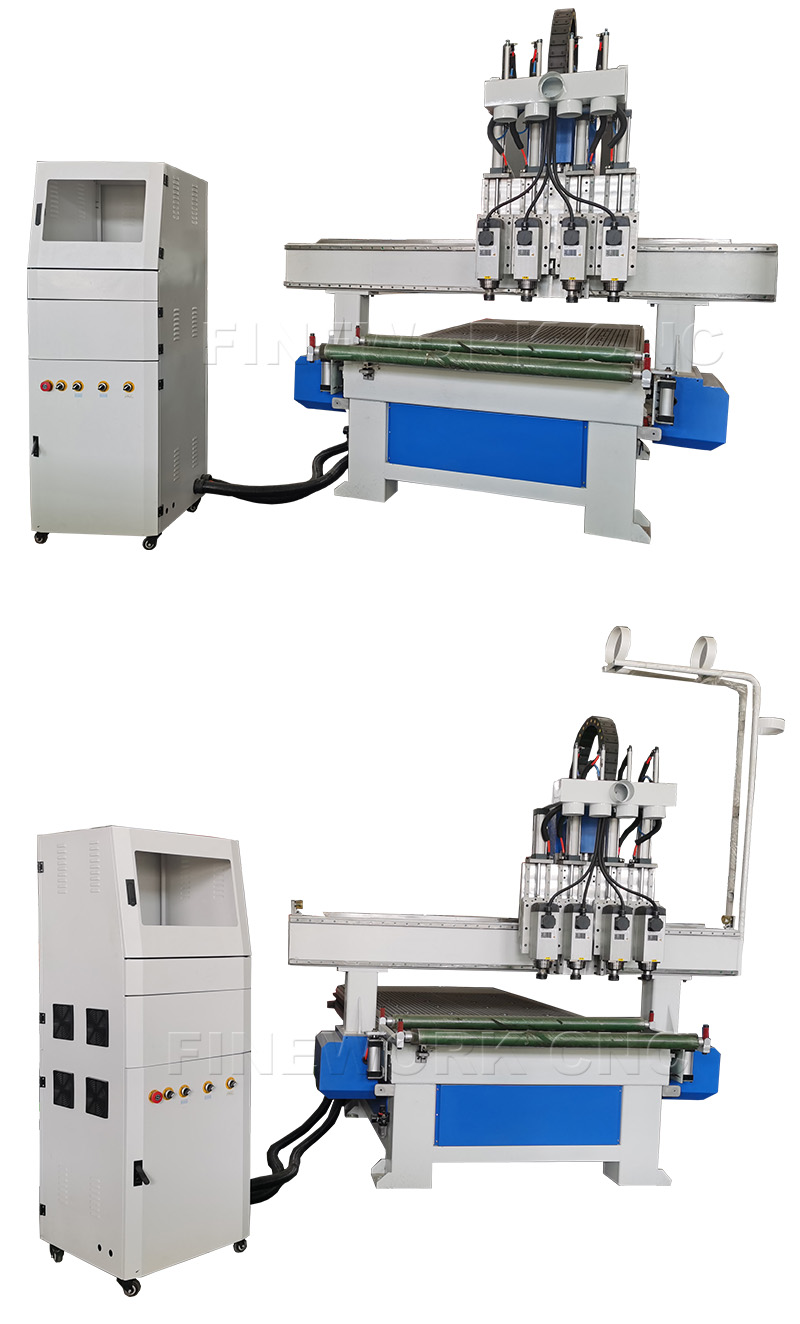

4 heads pneumatic tool change machine

Product ID : FW-1325

Product Attributes :

Advantage 1

This machine with 4 spindles alternately working. It not need the high cost ATC spindle, but has the ATC function.

Advantage 2

Three 6kw air cooling spindle give the big working power and better working speed.

Advantage 3

The machine body is heavy duty welded frame. This stronger body is more stable and more durable using.

Advantage 4

Vacuum working table and T slot double using table, it can fix material automaticaclly.

Advantage 5

Original Sanlong or Baoyuan system, support four head pneumatic tool changer function. Easy to operate and easy to learn.

Advantage 6

Position cylinder used to find the right positon of material, high working efficiency.

Product Description

Specification

Item	Description
Working area	13002500300mm
Positioning Accuracy	±0.03/300mm
Max. Working Speed	45m/min
Special function	Pneumatic tool changer cnc router
Spindle	6kw air cooling spindle * 4
Inverter	7.5 KW Fuling inverter* one
Control system	Original Sanlong or Baoyuan system
Frame	New Type Heavy Duty Body
Drive Motors	Leadshine servo motor and servo driver
Gantry structure	Thick Steel Gantry
Spindle Speed	0-18000RPM
Command Language	G code
Wire	High Soft Shjeld with Copper Wire to Protect Against Static Electricity
Limited Switch	Japan Omron Limited Switch
Collet	Collet
X,Y Resolution	<0.03mm

Details Images

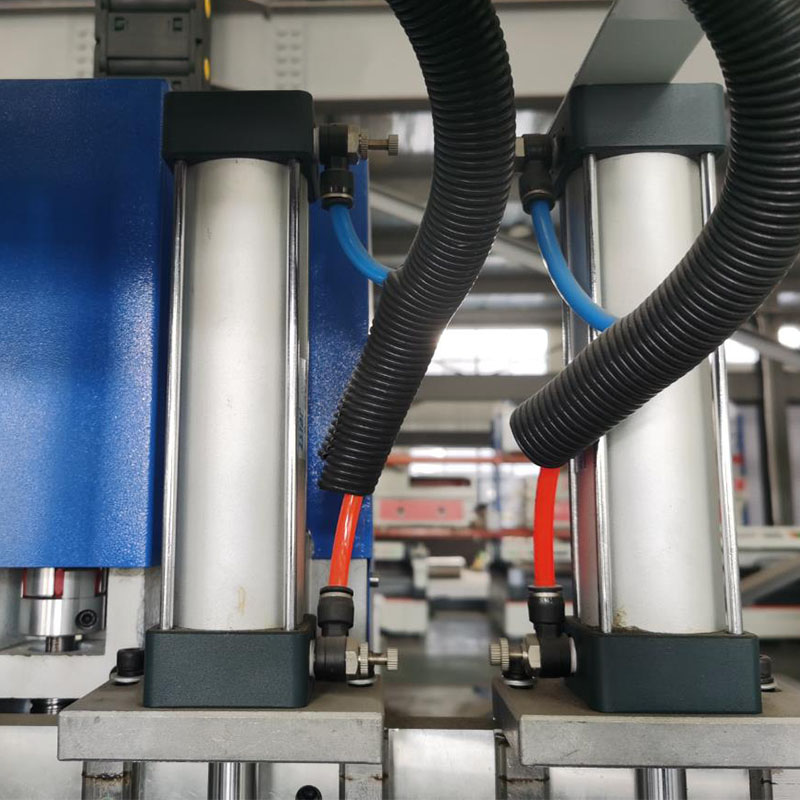

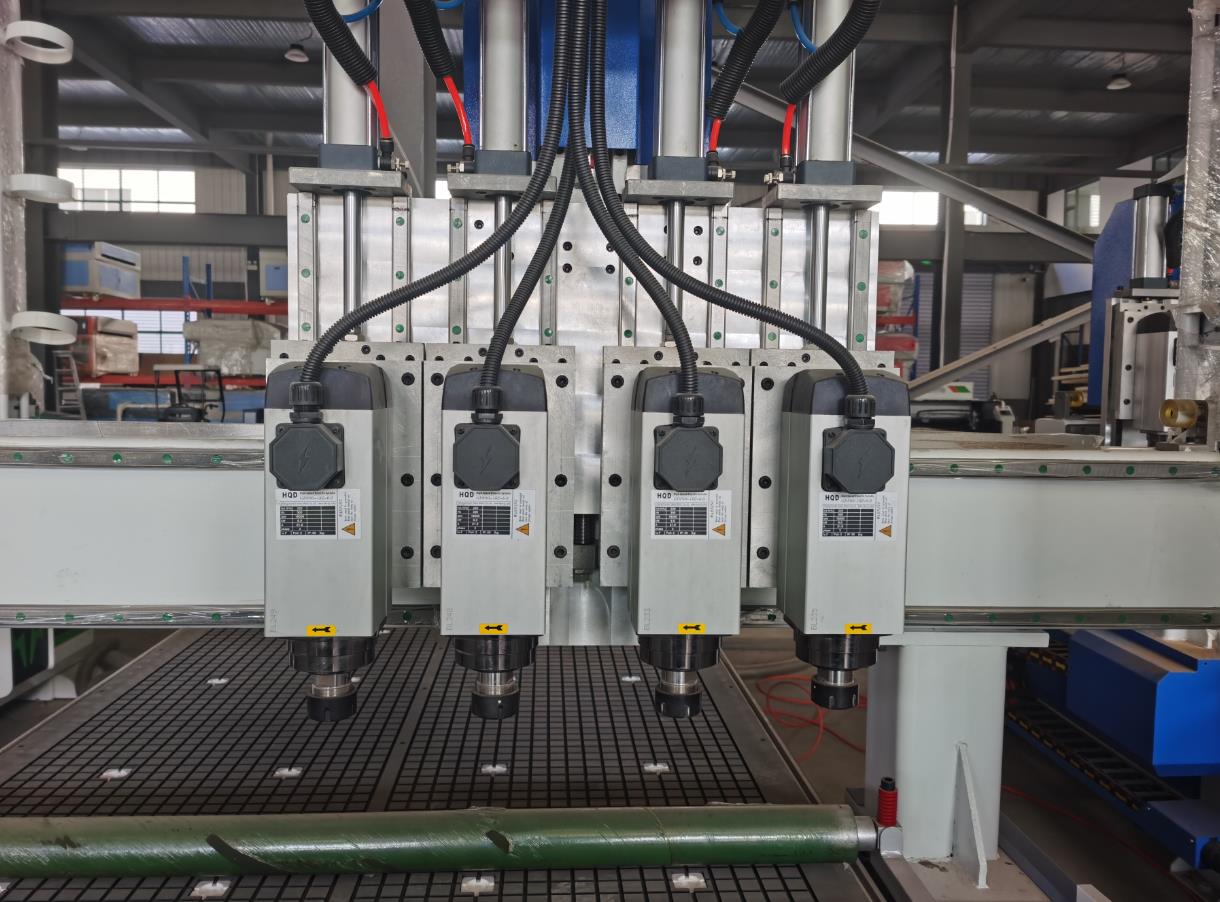

Three pneumatic tool changer function. It not need to use high ATC spindle, but it can have ATC function.

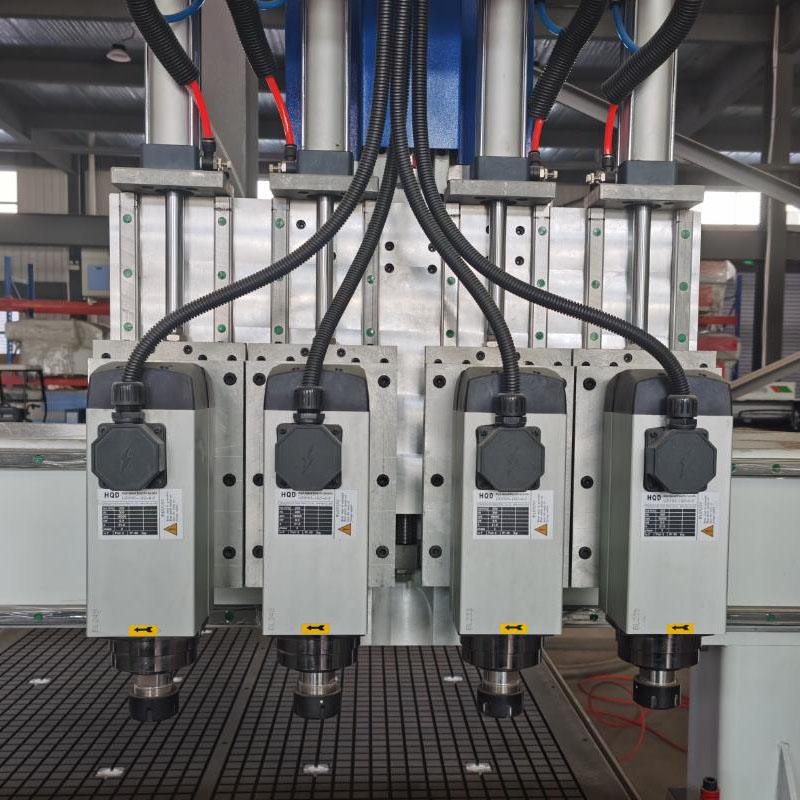

All spindle are 6kw HQD air cooled spindle. Big working strength.

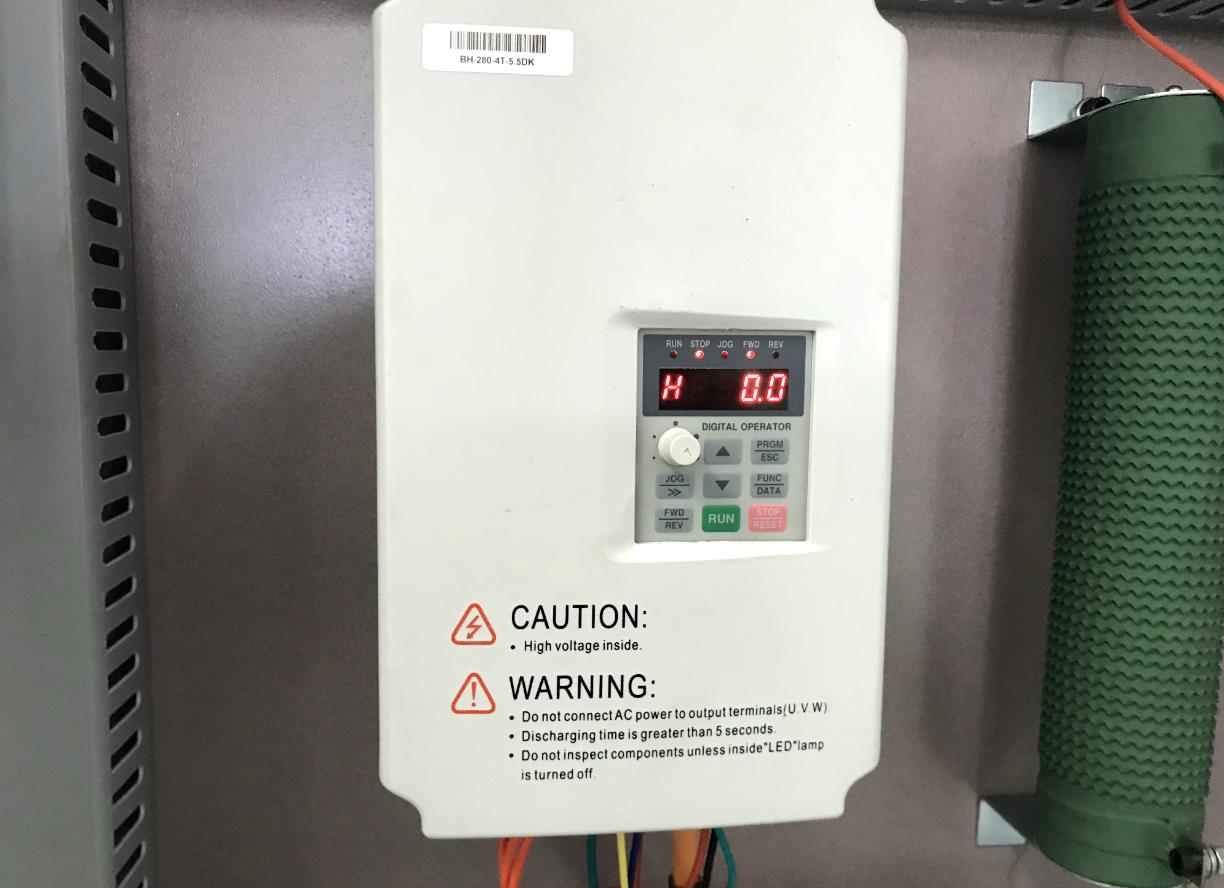

7.5KW Fuling inverter, the famous brand in China, working with 6kw spindle

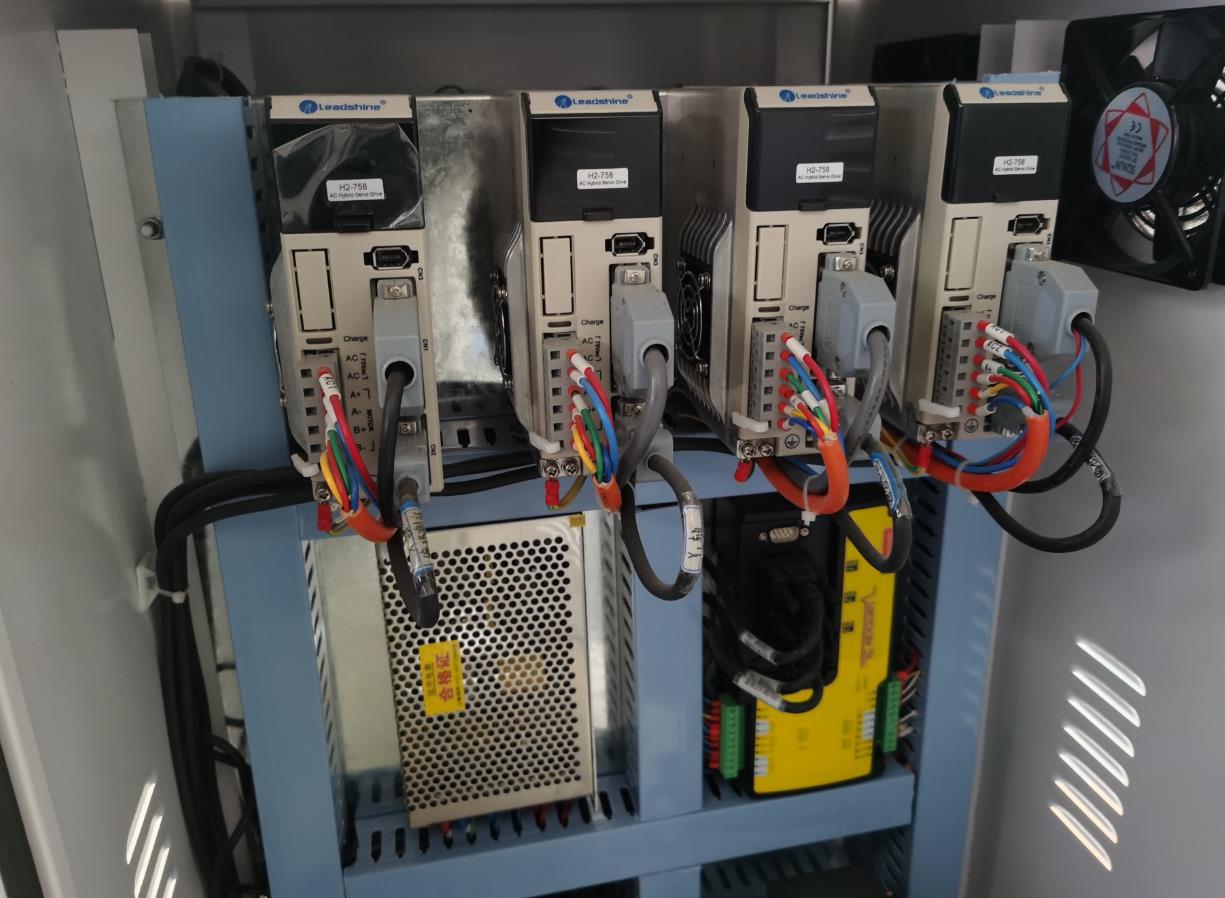

Leadshine servo motor and servo driver, more powerful than stepper motor.
Japan servo motor is optional.

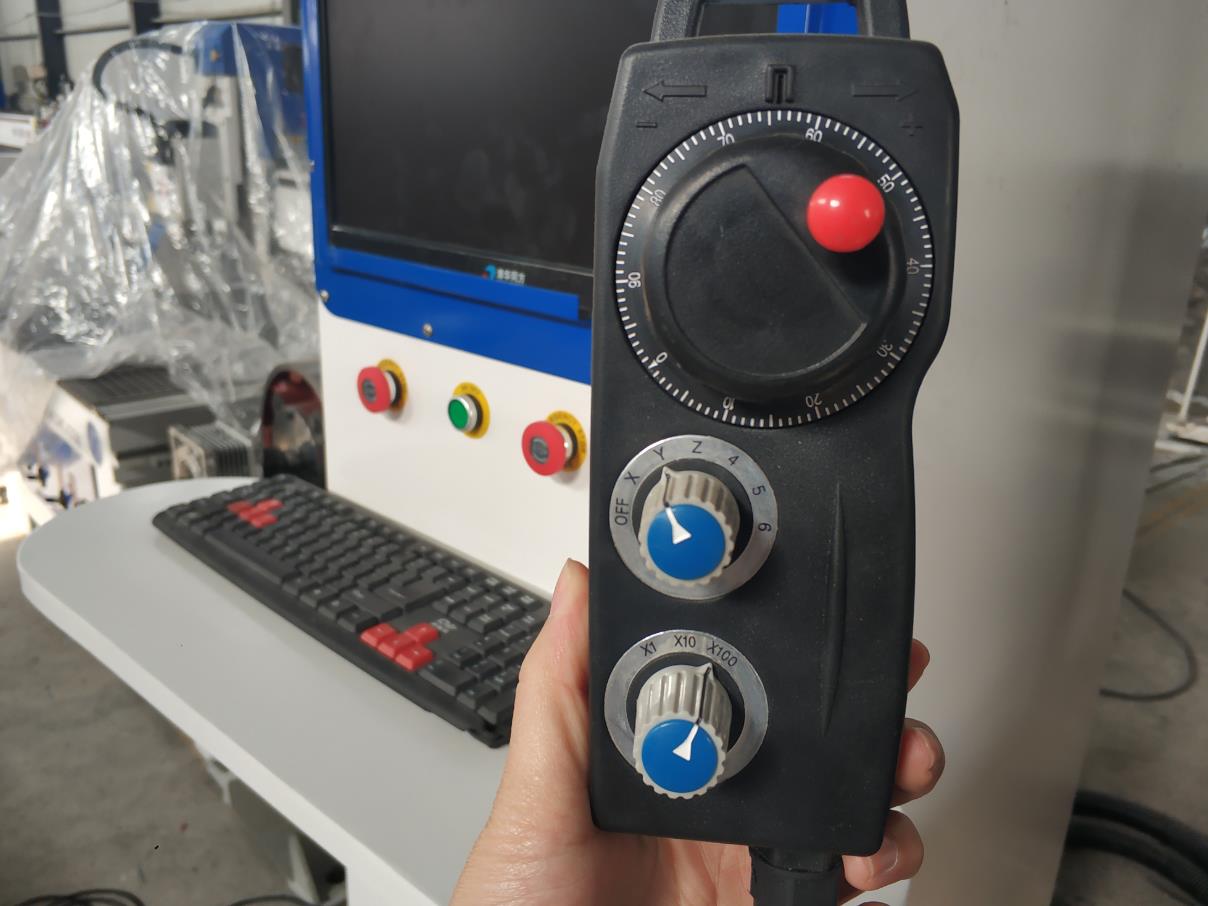

Original Sanlong or Baoyuan system, professional for four head puematic tool changer machine.

High Z axis, with stronger arm design

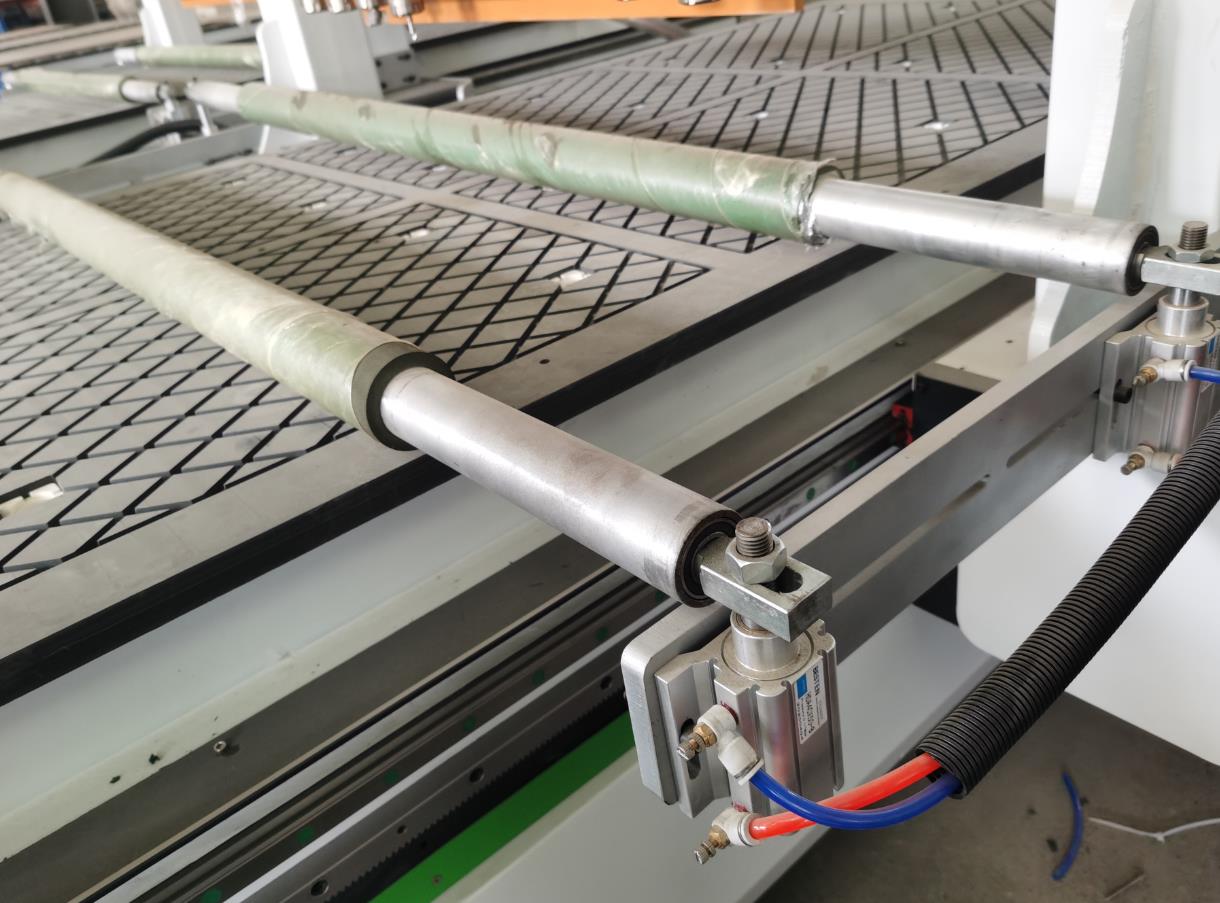

Wheels to fix material on table

Sample

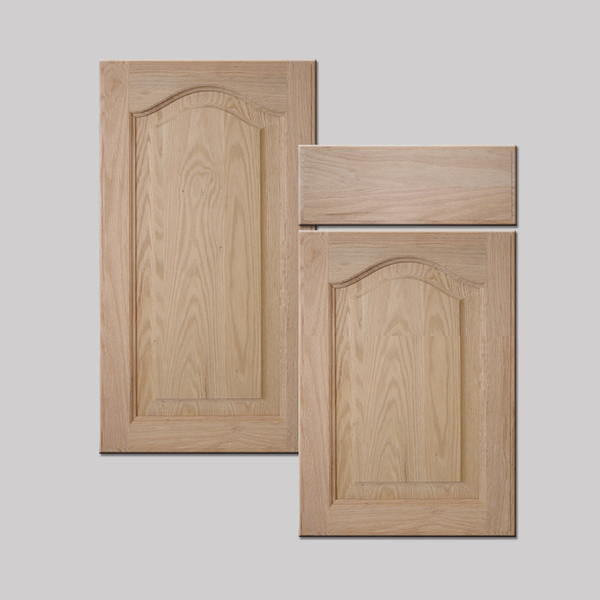

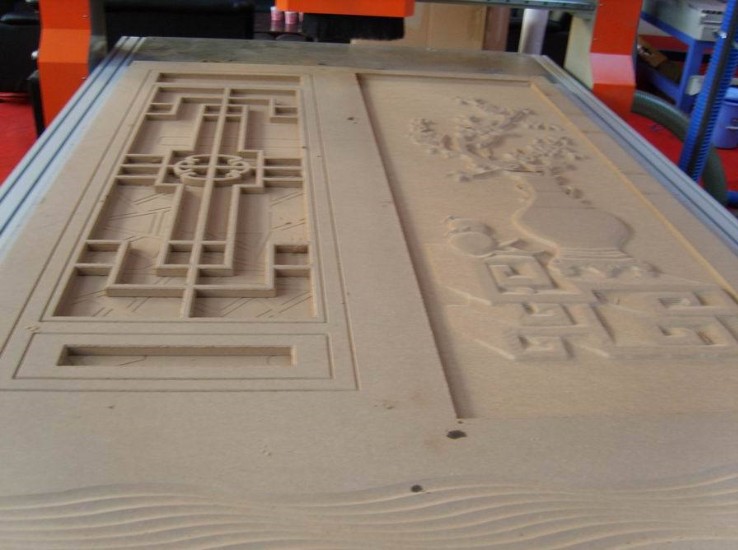

Wood Furniture Industry:

Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite
gates,cupboarddoors, interior doors, sofa legs, headboards and so on.

Advertising Industry:

Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster
molding,and other advertising materials derivatives making.

Workshop Show

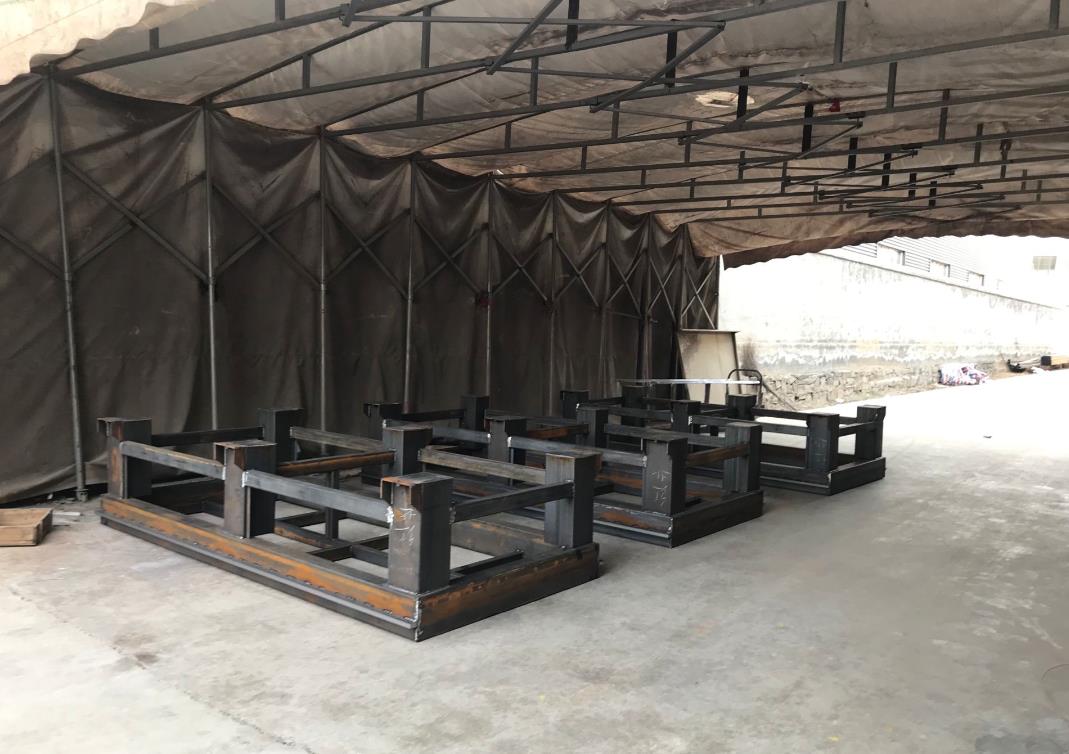

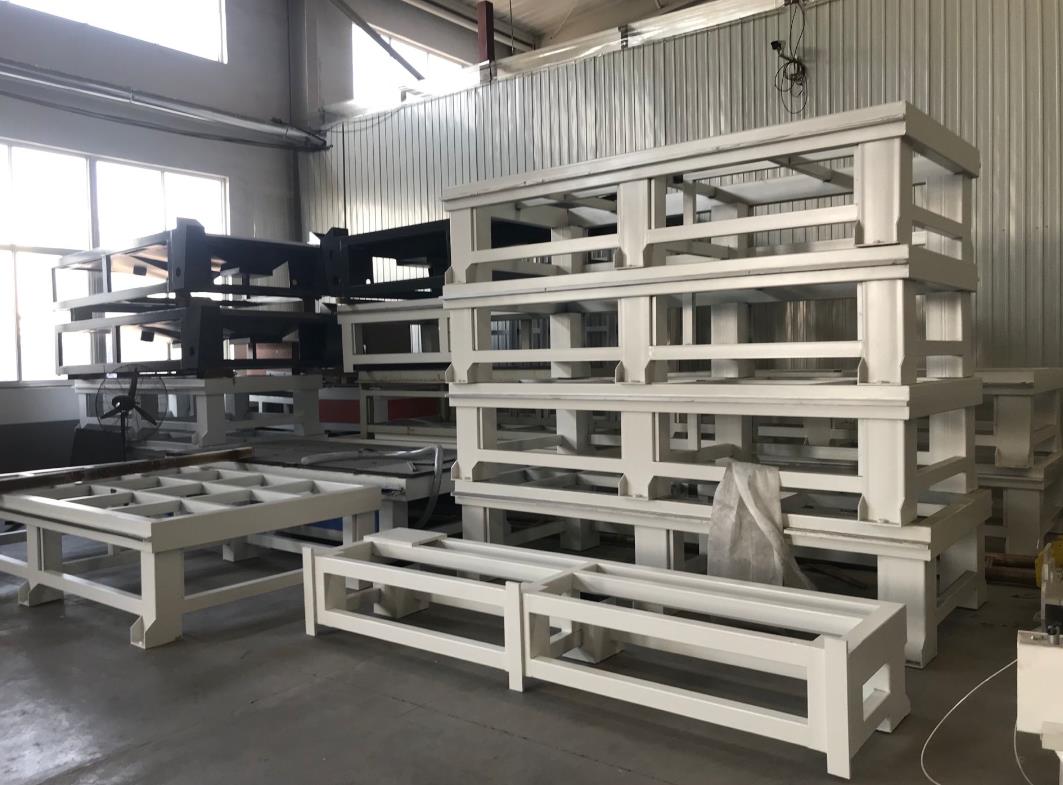

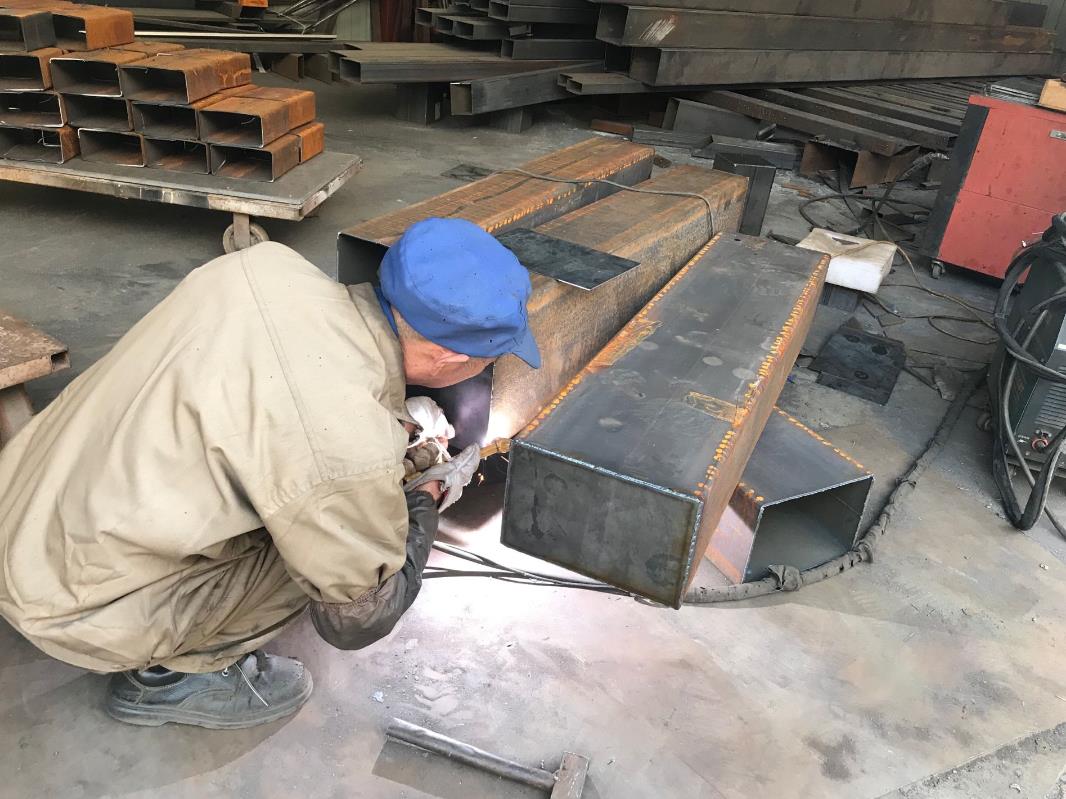

Welding works

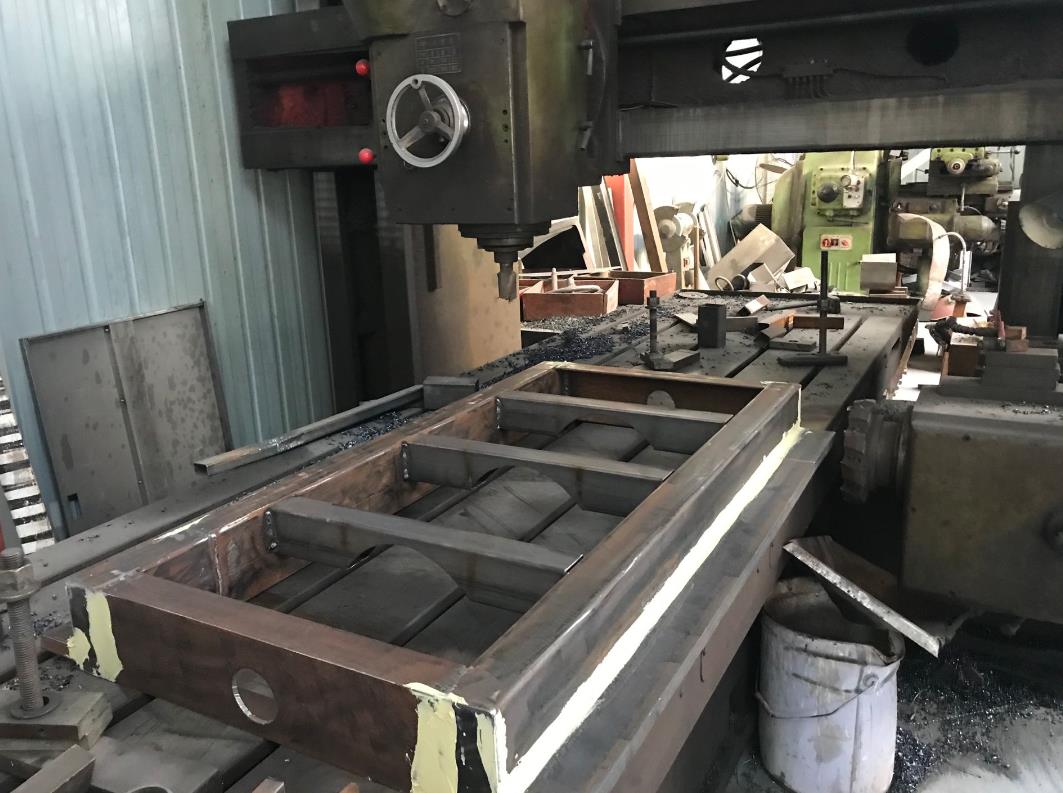

Milling the machine bed

The machine bed wait for painting

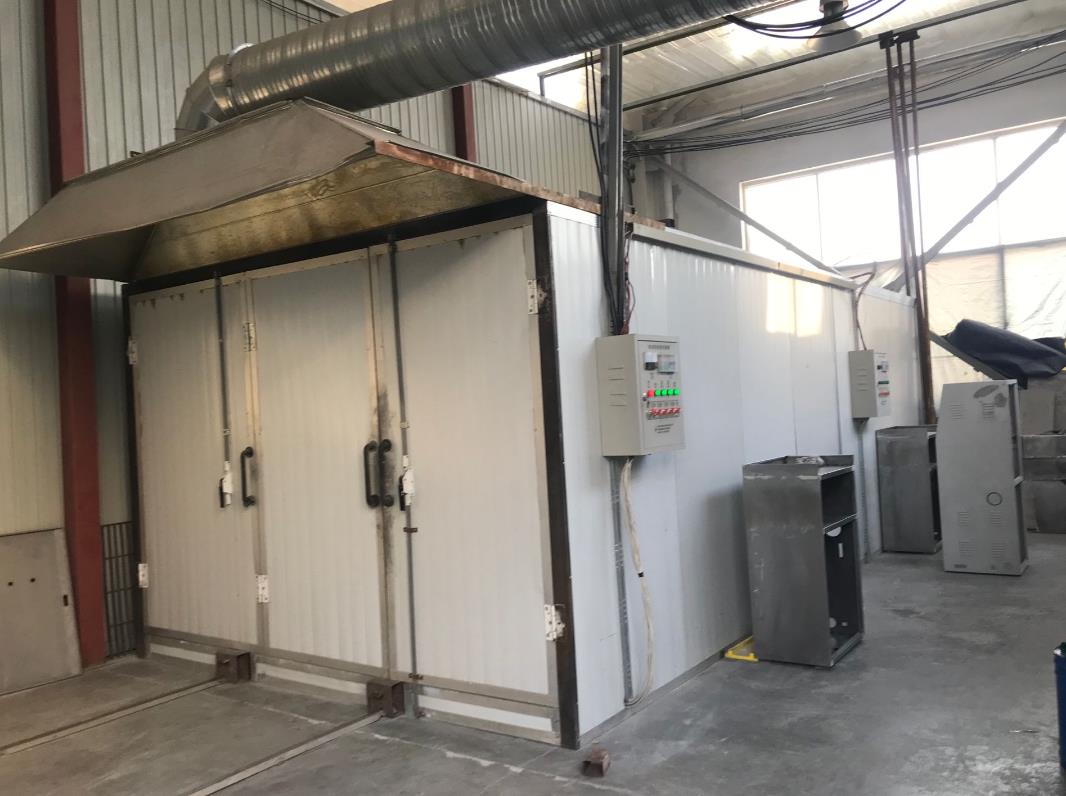

Painting works

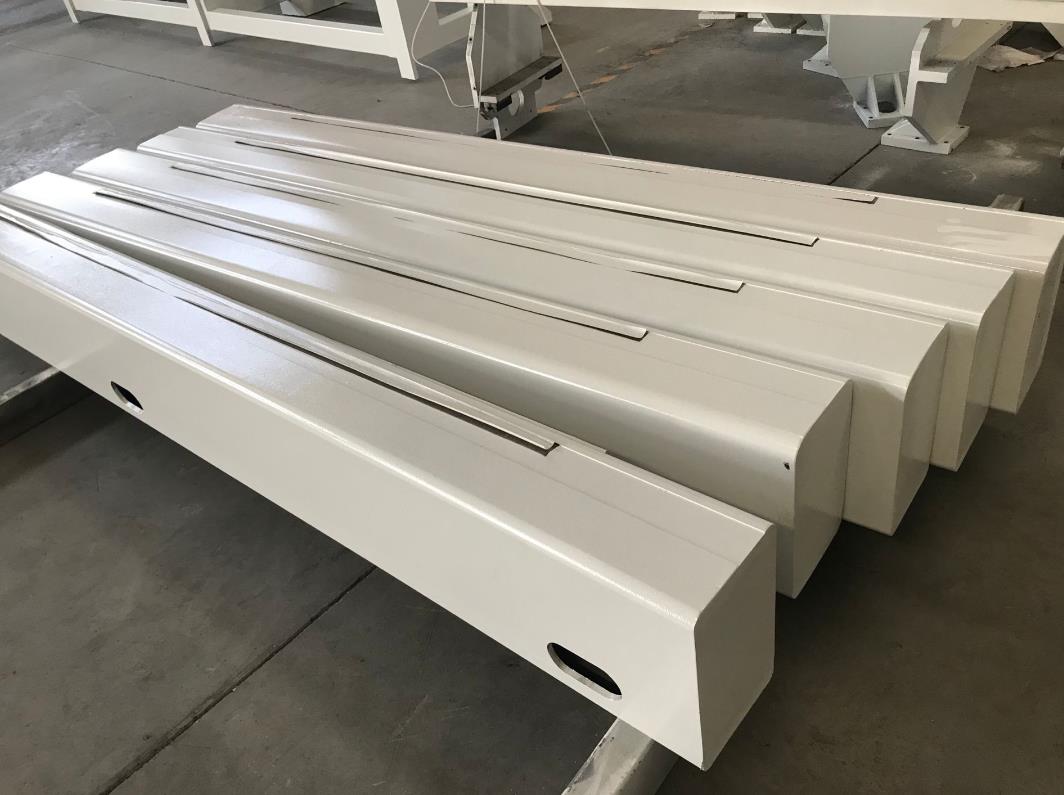

Gantry after painting

Machine bed after painting

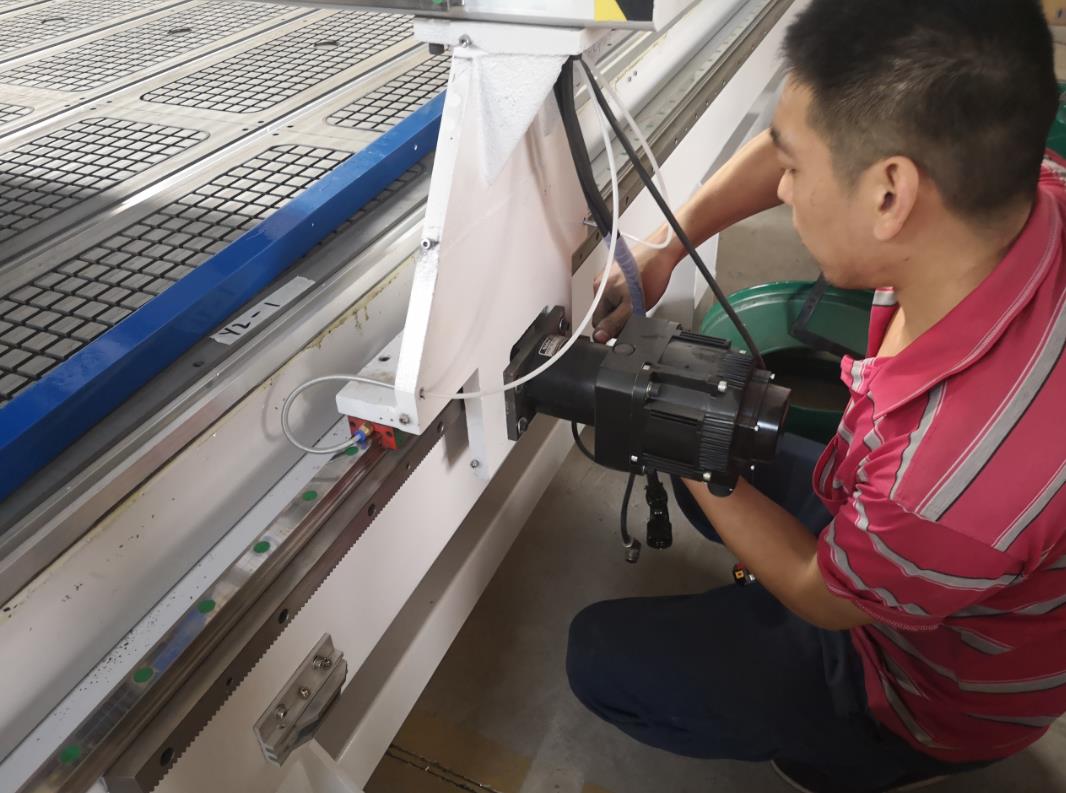

Installation
