Machine parameter :

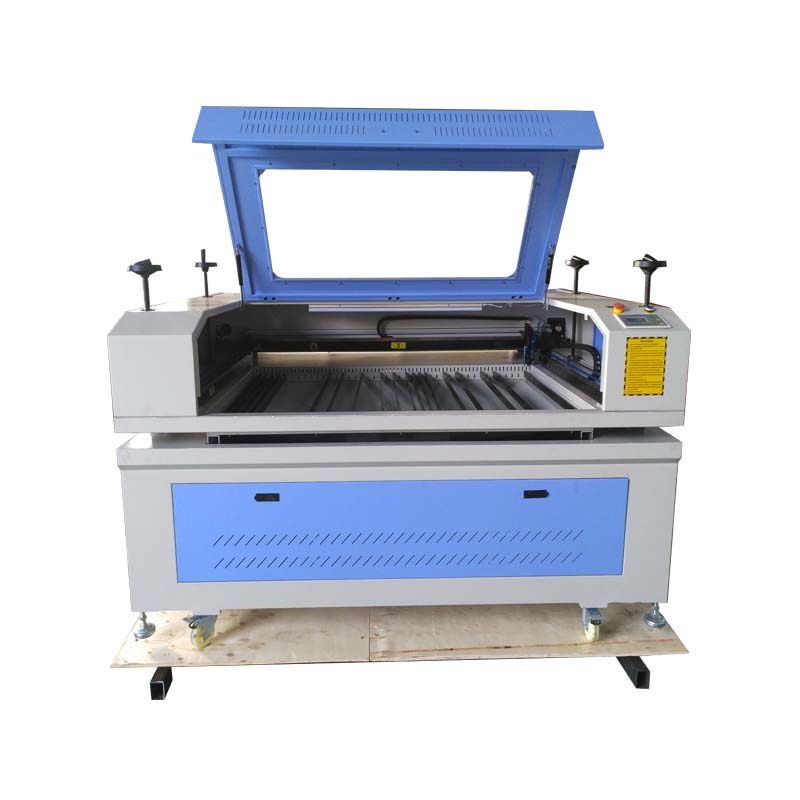

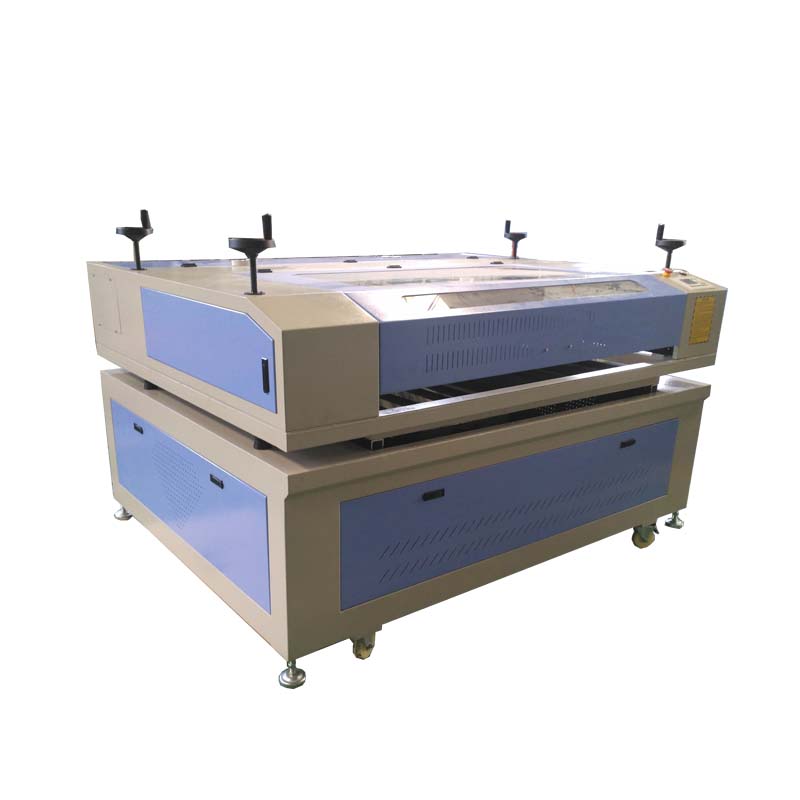

Machine model: | FW-1390 granite lazer engraver machine |
Laser type: | Sealed CO2 laser tube, wavelength: 10.64μm |
Laser power: | 60W / 80W / 100W |
Cooling mode: | Circulating water cooling |
Laser power control: | 0-100% software control |
Control system: | DSP offline control system |
Max. engraving speed: | 60000mm/min |
Max cutting speed: | 50000mm/min |
Repetition accuracy: | 0.01mm |
Min. letter: | Chinese: 1.5mm; English: 1mm |
Table size: | 1300x900mm |
Working voltage: | 110V/220V,50~60Hz |
Working conditions: | temperature: 0-45°C, humidity: 5%-95% |
Control software language: | English / Chinese |
File formats: | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, *doc |

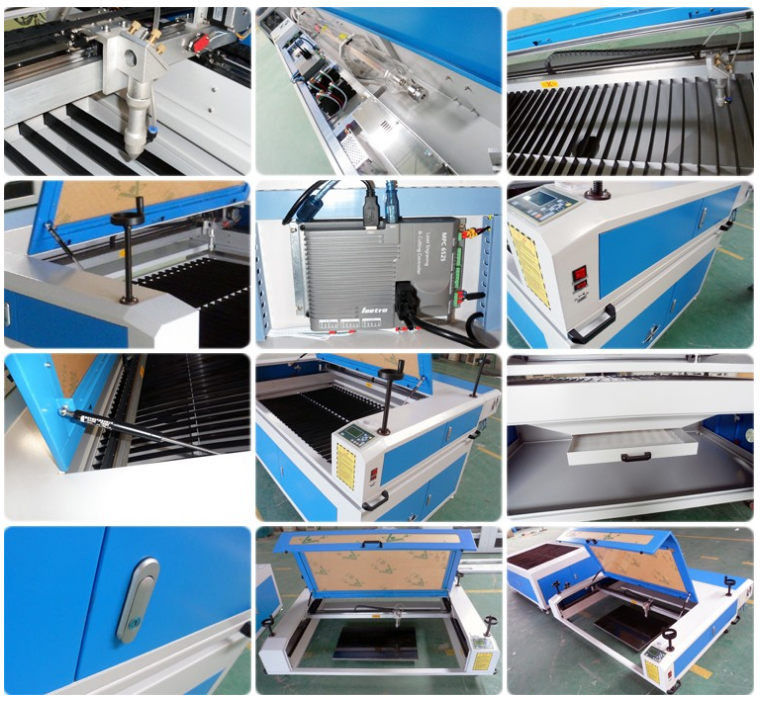

Machine spare part picture show:

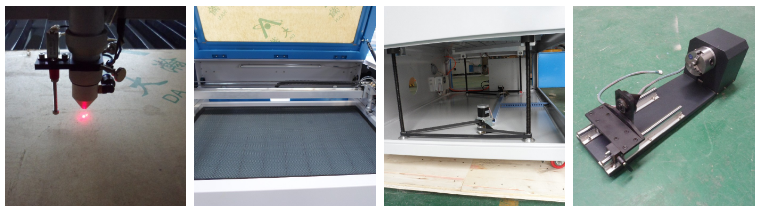

Optional spare part :
1. Red dot
The laser is invisible. Red dot shows the position of the laser on the material. It’s more convenient for location.
2. Honeycomb or blade table optional
Aluminum blade table is for processing acrylic, wood and other hard materials;
Honeycomb table is for processing cloth, leather and other soft materials.
3. Up/down Z-axis
You can adjust the table height by operating the Z-axis to process thick materials. Z-axis is also a must when you need to use auto focusing and rotary.
4. Auto focusing
Auto focusing automatically adjust the focusing distance.
5. Rotary
Rotary is used when processing cylindrical objects like bottles, cups, sticks, etc.
