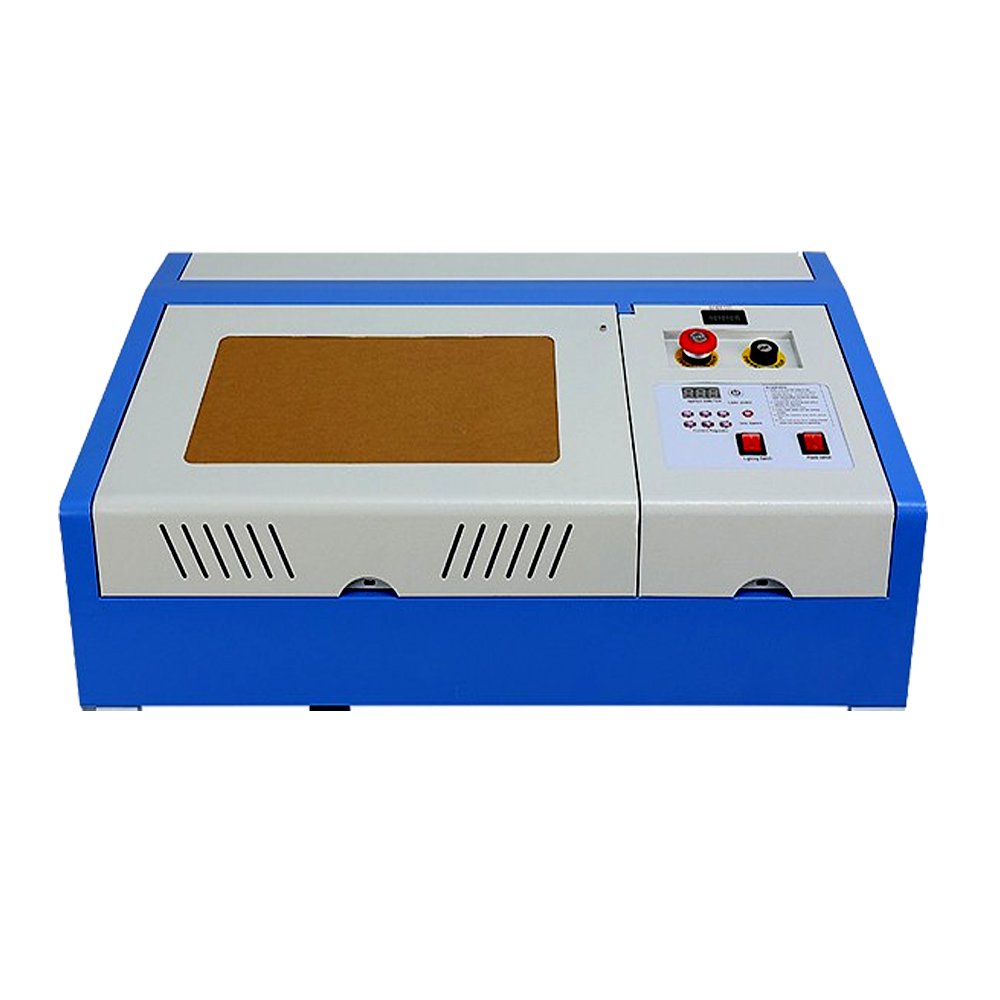

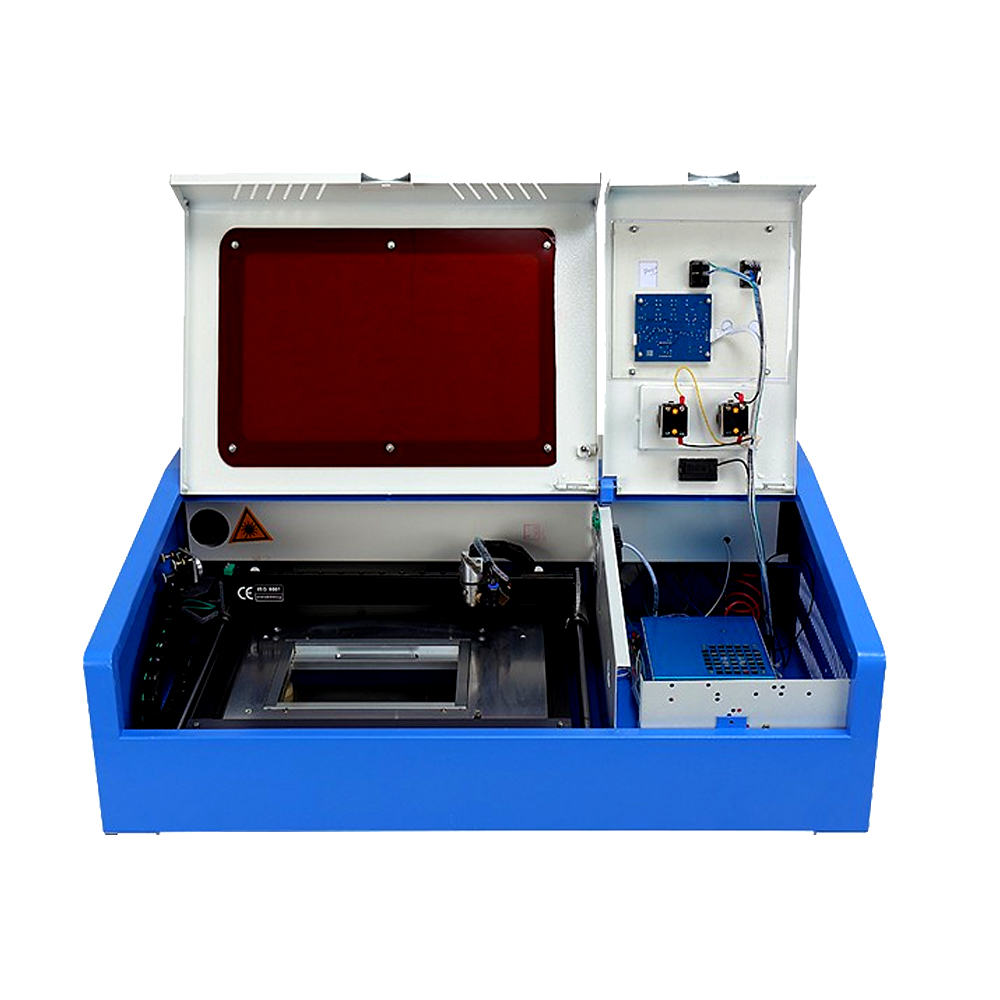

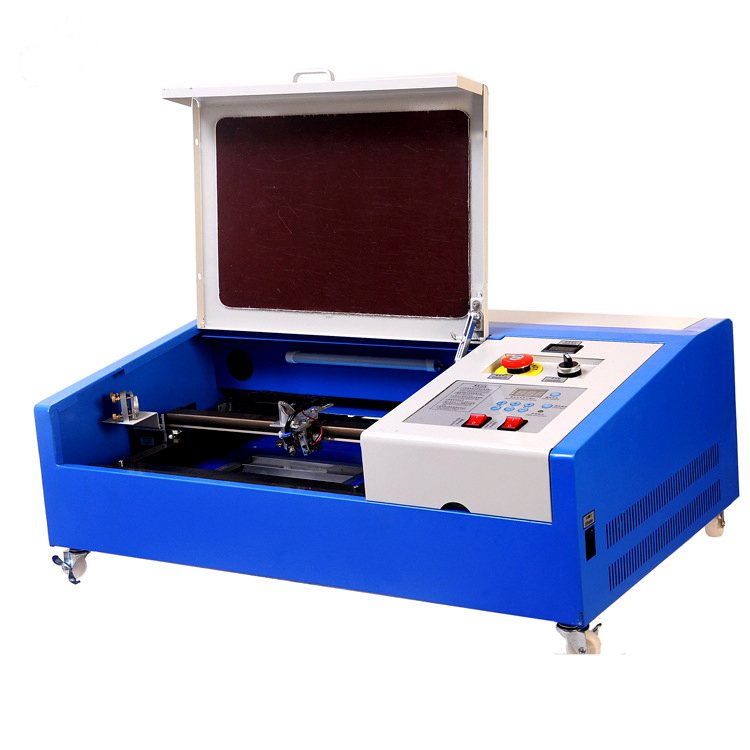

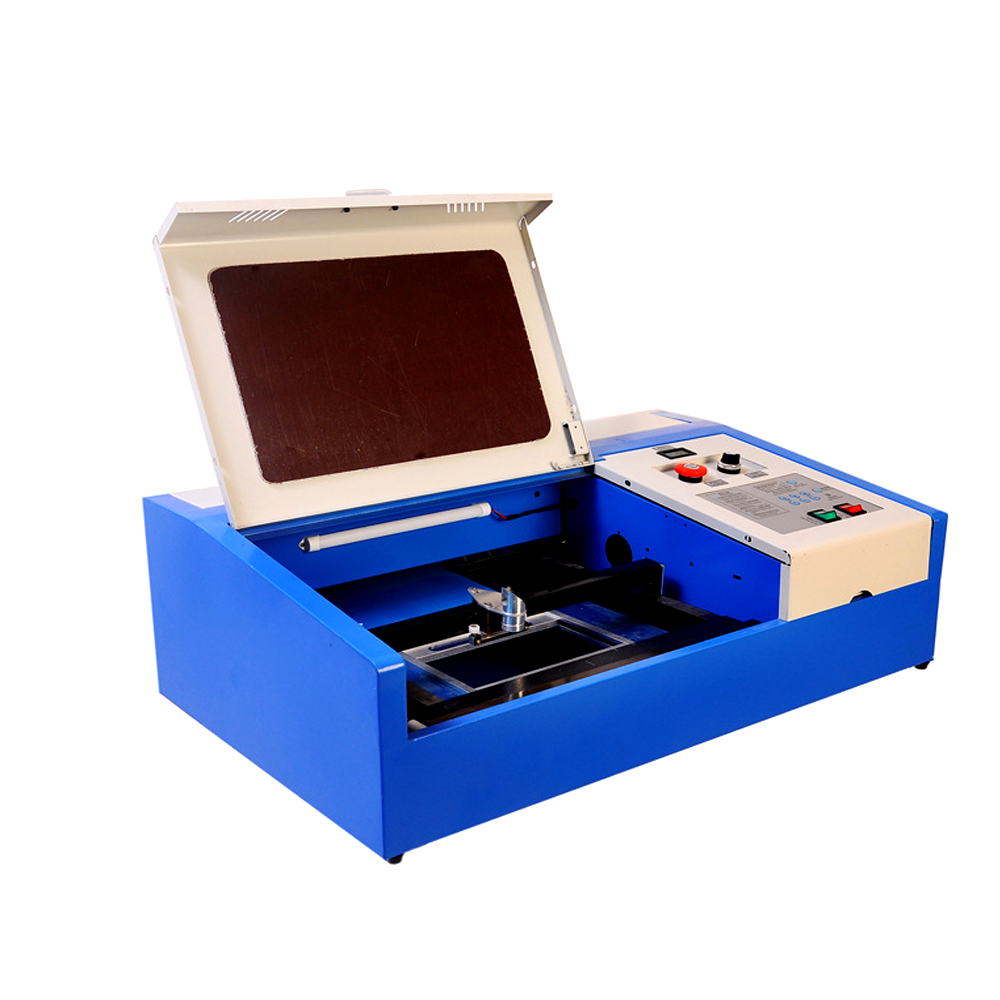

High precision and High speed laser engraver with up and down working table | |||||||
| Applicable Material | |||||||
The Computerized Mini Laser Engraving and Cutting Machine is suitable for various materials, such as bamboo piece, doubledolor planks, boulder, horns, leather, crystal, wood, organic plastic, fabrics, paper , film, canvas , Acrylic, Plastics and painted/coated metals (metals that are not coated or painted will require a LMM spray). If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you. Just email me for details. | |||||||
| Applicable Industry | |||||||
This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, , shoemaking, furniture , model industry, craftwork and other industries. |
| Technical Parameters | |||||||
| Communication Interface | USB Port | ||||||
| USB Port | CO2 Gas | ||||||
| Tube Trigger Volt | 20KV | ||||||
| Tube Operating Volt | 15KV | ||||||
| Current | 18~22mA | ||||||
| Engraving Area | 12x8in.(30x20cm) | ||||||
| Maximum Item Size to Engrave | 10.25W x 8.75L x 2.85H in. | ||||||
| Laser Tube (life hours) | 1500-2000 Hours | ||||||
| Laser Power | 40W | ||||||
| Engraving Speed | 0-180mm/s (0-7 in./s) | ||||||
| Cutting Speed | 0-18mm/s (0-0.7 in./s) | ||||||
| Minimum Shaping Character | 1 X 1mm (0.04 X0.04)in | ||||||
| Resolution Ratio | 0.026mm / 0.001 in. (1000dpi) | ||||||
| Power Supply | 110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item. | ||||||
| Resetting Positioning | less than 0.01mm (0.0004 in.) | ||||||
| Motor Type | Stepper Motor | ||||||
| Software Supported | CORELLASER (CAN SUPPORT CORELDRAW DIRECTLY). It can support Window 7/8/vista/XP | ||||||
| Power Consumption | less than 250W | ||||||
| Operating Temperature | 32-113F (0-45C) | ||||||
| Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF etc | ||||||
| Water Cooling | Water Pump include | ||||||
| Recommended Spare Parts/Consumables | Laser Tube, Focal lens, Reflection lens | ||||||

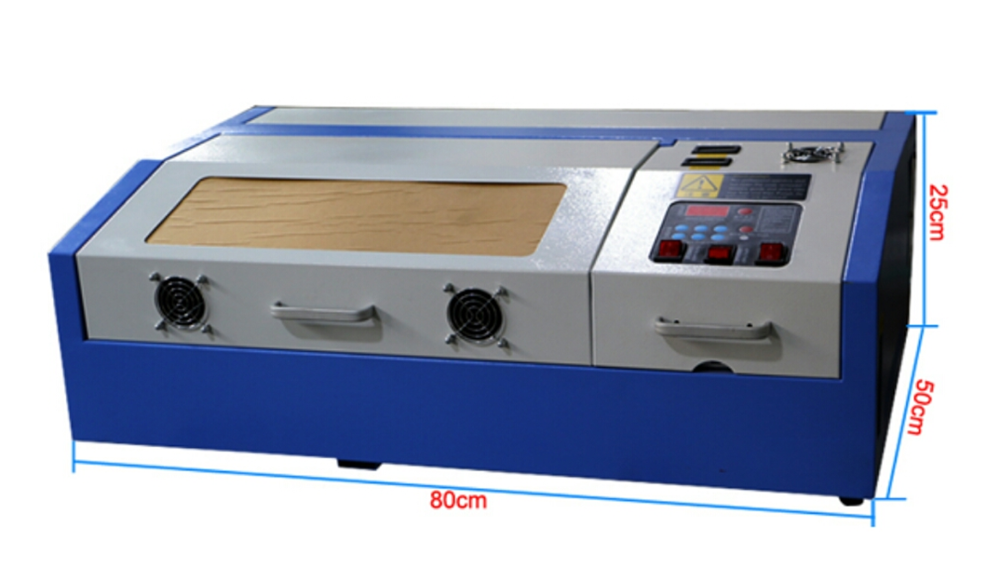

| Dimension OF this machine | 95*63*49cm, and weight (included the plywood) is 40kgs. | ||||||

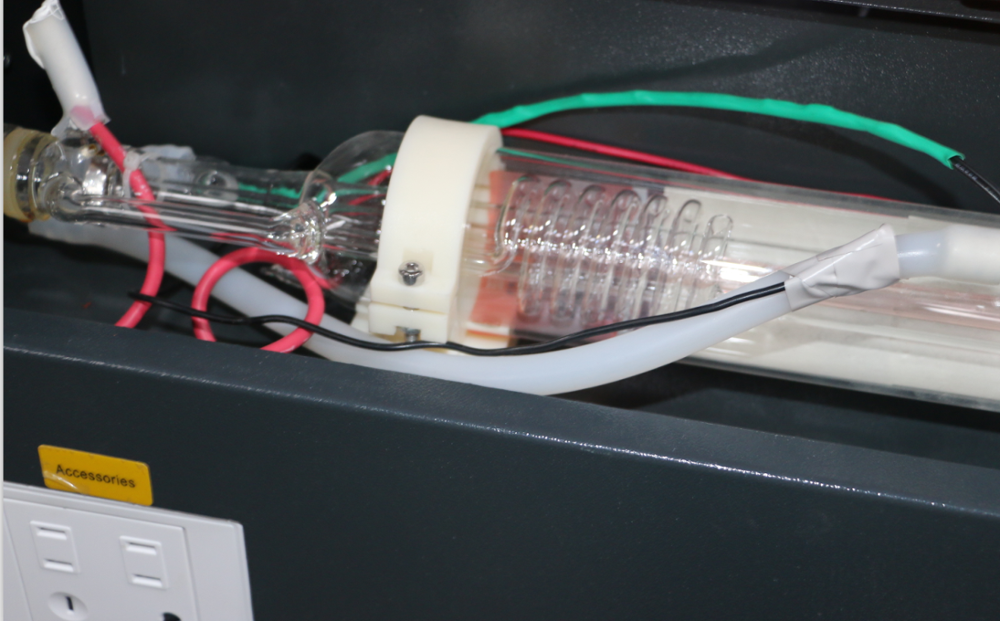

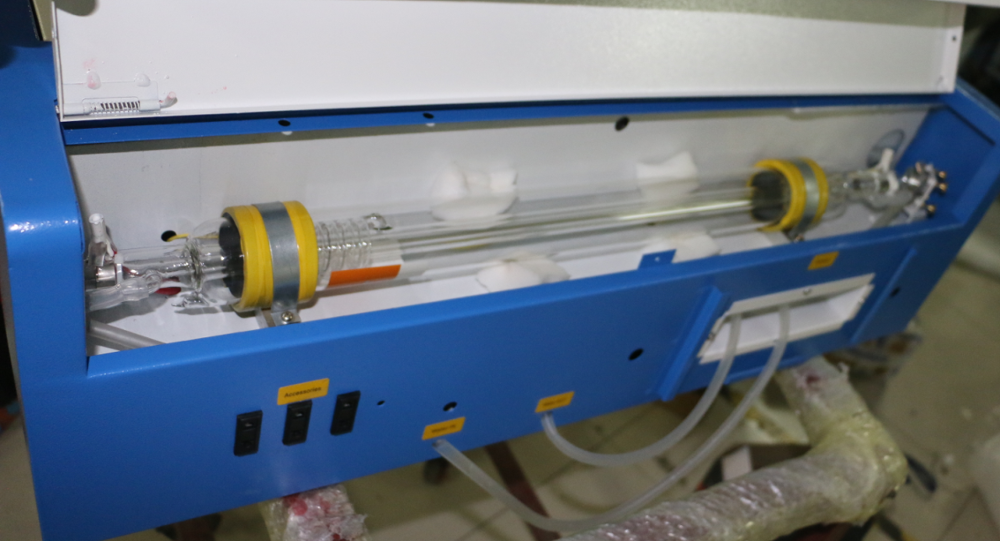

Laser tube :

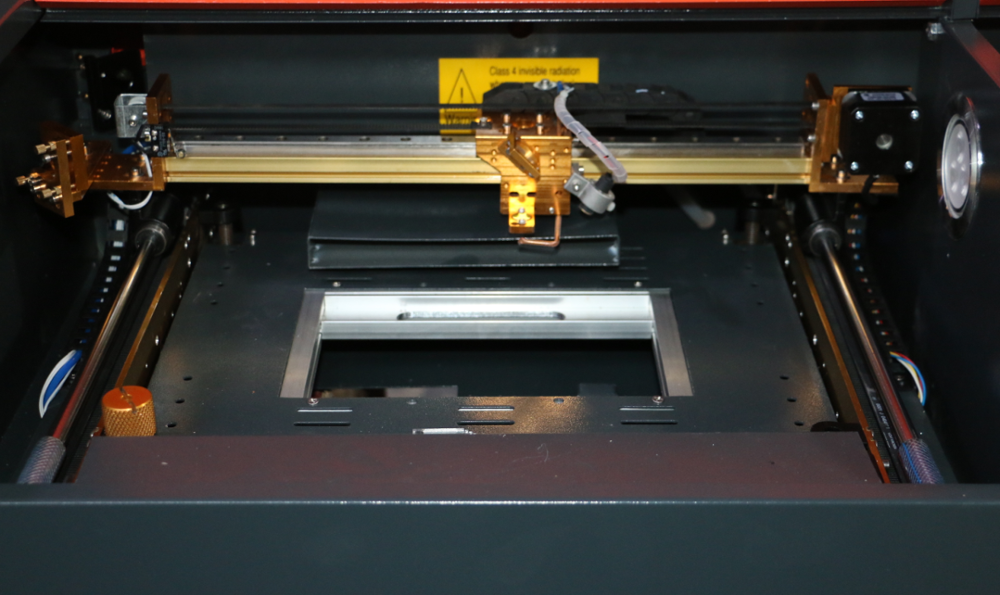

Inside table
Question 1: I want to buy this machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?
Question 2: What's the delivery cost & time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.
