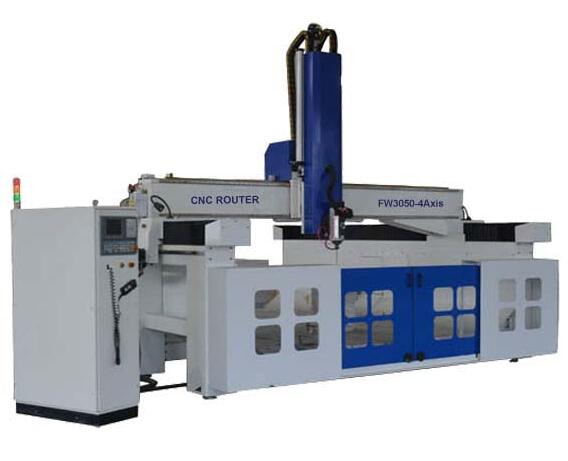

Jinan Finework CNC Machinery Co.,Ltd
Self-lubricating, life-long maintenance-free Taiwan guide rail.
Italian high-speed spindle, with top speed of 24000rpm, guaranteering maximum processing efficiency and productivity.
Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
Taiwan controller reads the codes in an efficient manner. Online simulation and monitoring function are available. Processing efficiency and safety are guaranteed.
Parameter:
Technical parameters | ||
No | Description | FW-3050 |
1 | Working size | 3000*5000*1000mm |
2 | The 4th axis | ±90° |
3 | Transmission | X /Y rack and pinion drive Z Taiwan TBI ball screw |
4 | Table structure | Cast steel structure |
5 | Spindle power | Italy 9kw HSD ATC air cooling spindle |
6 | Spindle speed | 24000rpm |
7 | Working speed | 20m/min |
8 | Motor driver | 850w YASKAWA servo,1 kw YASKAWA servo driver |
9 | Inverter | 11kw Taiwan Delta Inverter |
10 | collet | BT40 |
11 | Computer Interface | Ethernet |
12 | Flash Memory | 256M(with CF card) |
13 | Table Surface | Milling steel table(T-slot) |
14 | Control System | Taiwan SYNTEC |
PS. All the working size and specifications can be customized according to your requests | ||
Application:
The machine is particularly suitable for automotive foam mold, wooden ship model, wooden model aviation, trains and other wooden mold.
We use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine. It can balance the force in all directions to ensure the machine’s accuracy and strength when engraving.
The route of Z axis can be heightened to 1000mm, so it is suitable for processing large-scale and super-thick material.
The design documents of intelligent processing cross-border protection can prevent the excessive process caused by mechanical impact.
The diversified processing speed can be controlled separately. The speed of idle running and roll setting improve the quality of processed products and processing efficiency greatly.

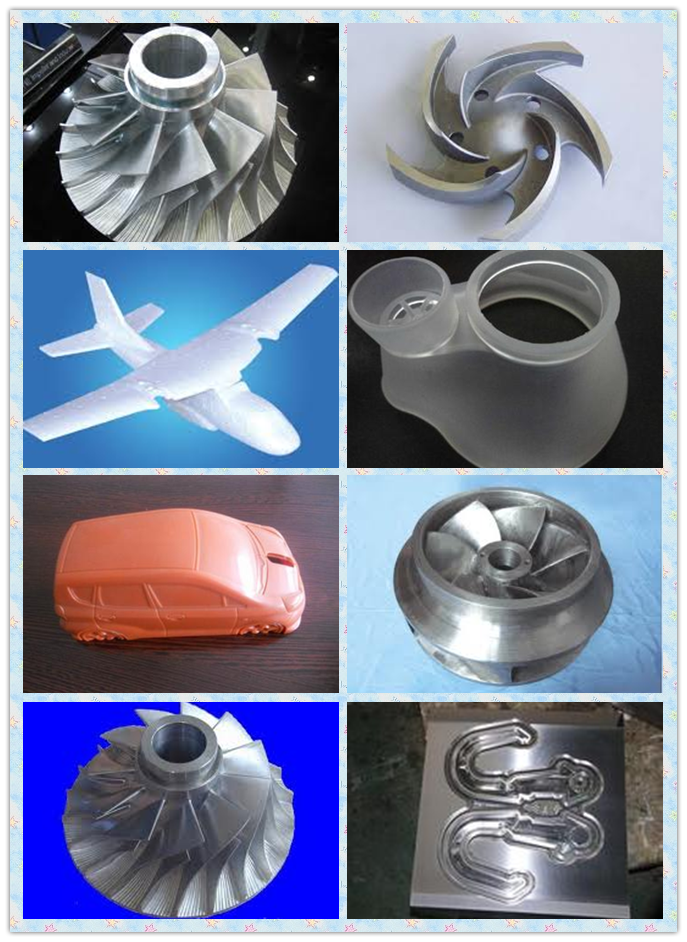

Samples:
