Jinan Finework CNC Machinery Co.,Ltd
Ncstudio control system, convenient operation.
3KW water cooling spindle, Chinese air cooling spindle for option.
It offers a high power drive and motor, high-speed operation after long time working.
It is compatible with software CAD/CAM, like Type3/ArtCAM/CoreDraw and other software.
T-slot working table, double using table.
Description |
Parameter |
Working area |
1300*2500*200mm |
Positioning Accuracy |
±0.03/300mm |
Max. Working Speed |
45000mm/min |
Spindle |
3kw water cooling spindle, air cooling spindle for option |
Inverter |
3.7KW Fuling inverter |
Frame |
New Type Heavy Duty Body |
Drive Motors |
Leadshine servo motor and servo driver, stepper motor for option |
Gantry structure |
Thick Steel Gantry |
Spindle Speed |
0-24000RPM |
Command Language |
G code |
Wire |
High Soft Shjeld with Copper Wire to Protect Against Static Electricity |
Limited Switch |
Japan Omron Limited Switch |
Control system |
DSP A11 system |
Collet |
ER20 |
X,Y Resolution |
<0.03mm |
Computer Interface |
USB |
1. 24-hours online Inquiry and consulting support.
2. Sample testing support.

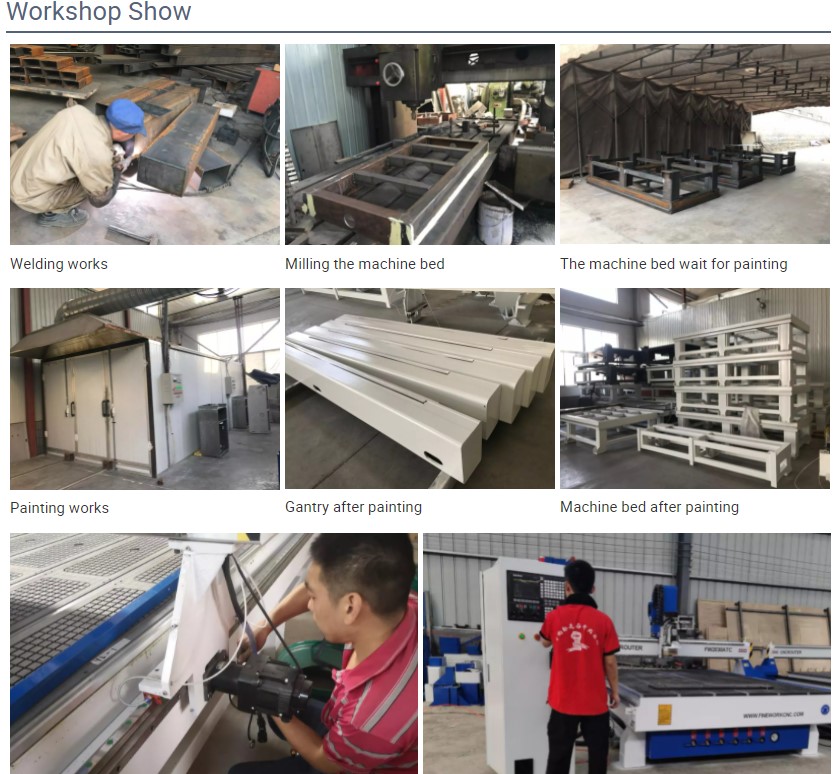

3. We welcome you to visit our factory.
