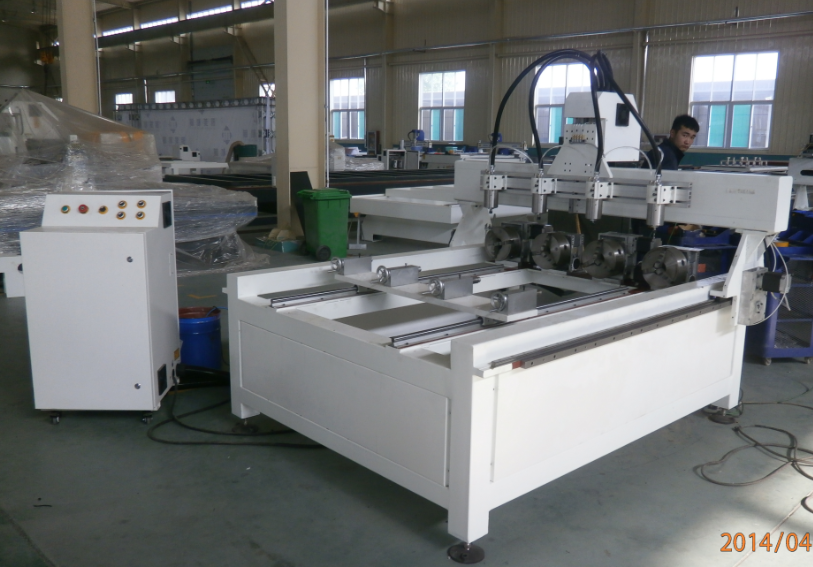

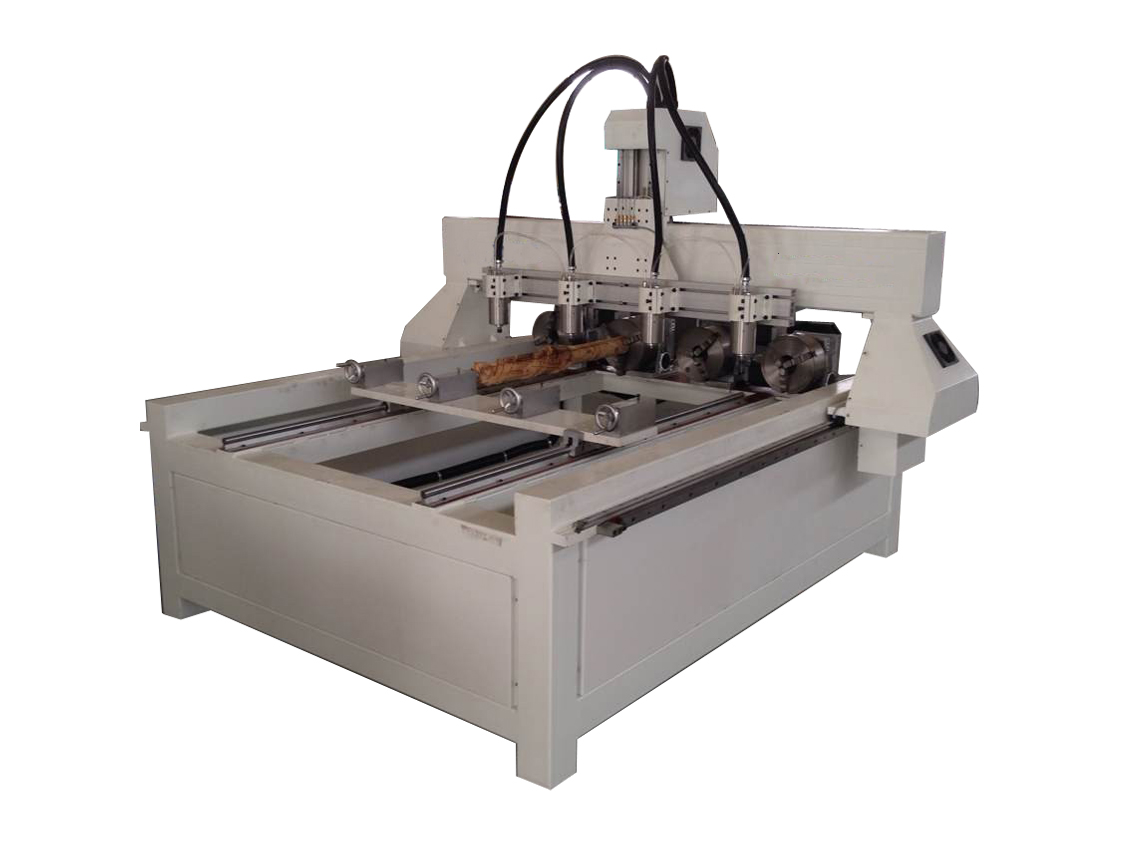

FW0809-4A 4 axis cnc router

Product Attributes :

1.Working Area: 800*900*200mm

2.Nomal frame, but no distortion, to ensure the stable, low inertia and no distortion during high speed working.

3.Assembled with original HIWIN linear square guide rail and dual-nuts anti-gap rod ballscrew, and Germany made slanting rack,to ensure high accuracy, low noise and long life.

4.Adpot high-speed 2.2kw Changsheng water cooling spindle(top brand in China) with constant torque,high-performance drive motor to ensure the long time and stable working.

5.DSP A18 control system for 4 axis cnc router

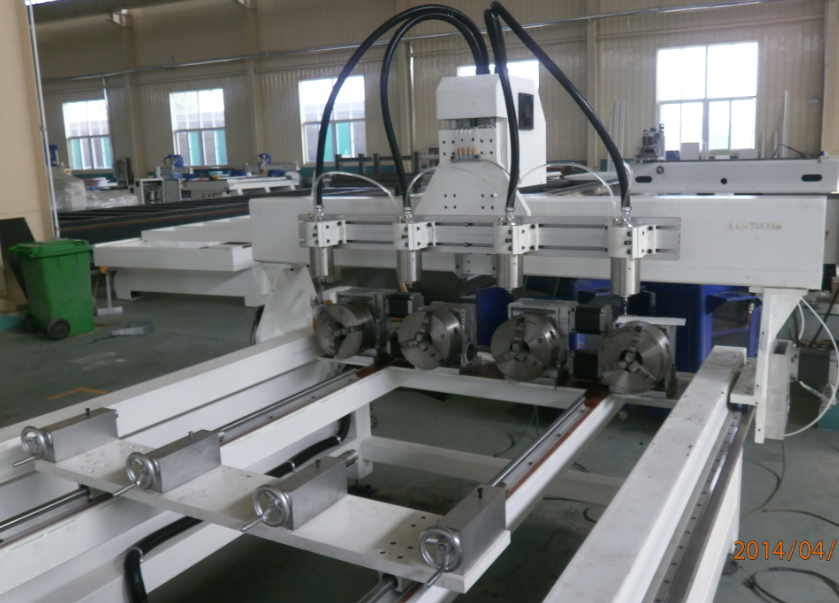

6.Rotary Device:diameter:200mm;length:900mm,4pcs

The rotary device’s diameter, length and position can be customized according to your requests.

Product Description

Parameters:

Working area	800900200mm
Spindle	2.2kw*4pcs
Spindle rotating speed	24000RPM
Motor	FL118
Driver	YAKO2608
Inverter	2.2kw FULING

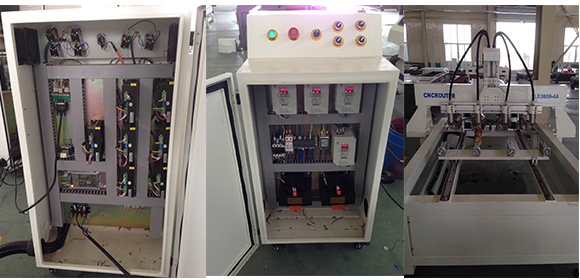

Control system	DSP A18 for 4th axis
X,Y,Z	Ball screw imported from Taiwan
Table surface	T-slot working table
Rotary	200mm diameter;900mm length
Positioning accuracy	±0.02/300mm
Repositioning accuracy	±0.01mm
Max. engraving speed	6,000mm/min
Max. motion speed	8,000mm/min
Tools diameter	ER20
Dictate format	G code,U00,mmg,plt/HPGL/NC
Compatible software	Type3,Ucancam,ArtCAM
Support software	Windows98/2000/XP
Working supply	AC220V, 1 phase,50/60HZ(110V for option)
Guarantee	One year
option	vacuum table, dust collector, rotary device, mist sprayer, flume
Application	Furniture, wood craft, decorative products, signs, building models, metal, embossed pictures.
Technical support	24 Hours technical support by email or calling User friendly English manual and Video CD for machine operation and maintain
