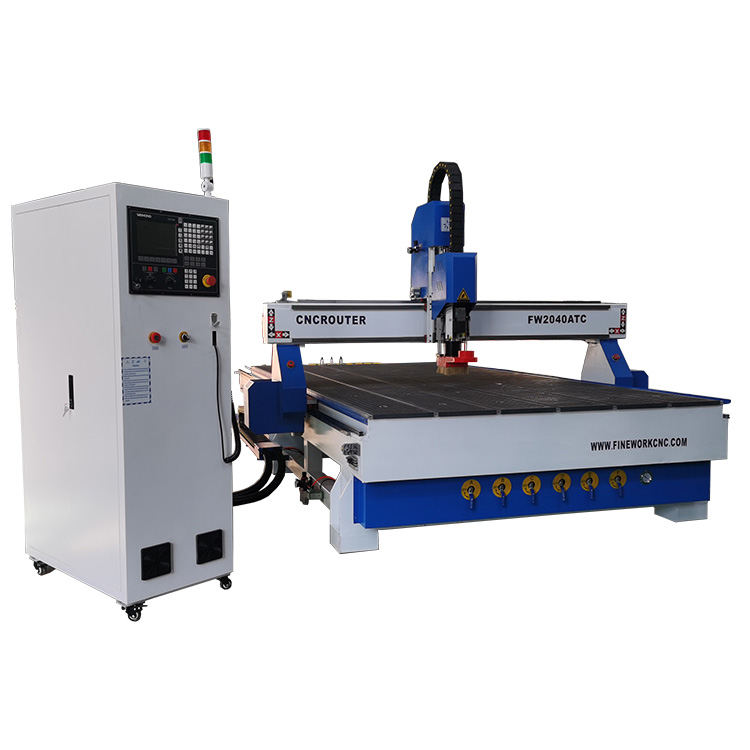

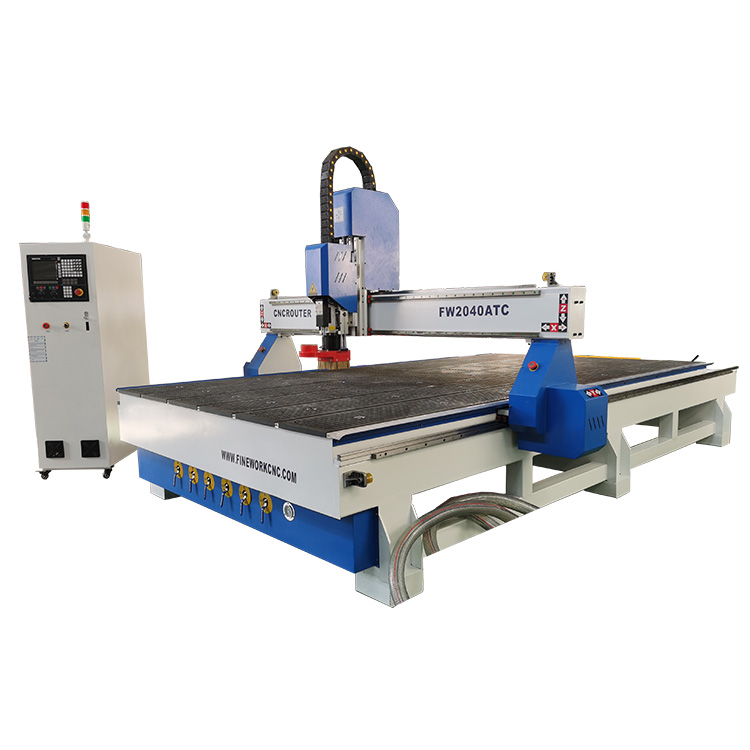

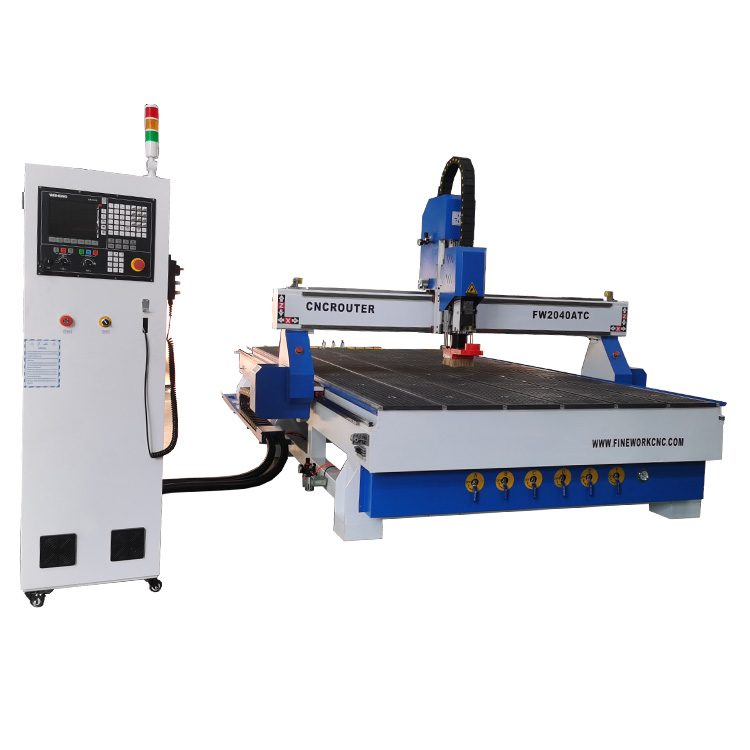

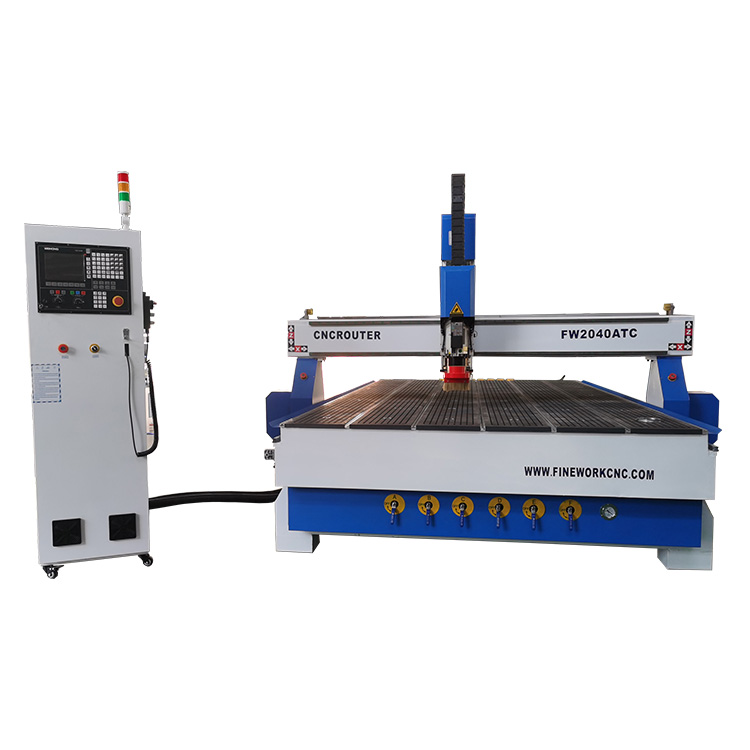

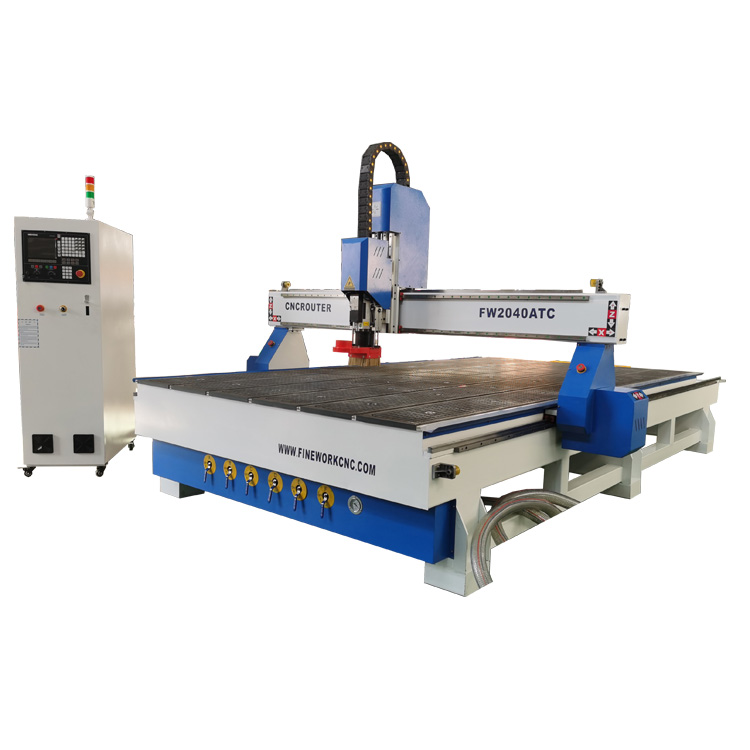

Atc Cnc Router Wood Carving Machine
Atc Cnc Router Wood Carving Machine Atc Cnc Router Wood Carving Machine Atc Cnc Router Wood Carving Machine Atc Cnc Router Wood Carving Machine Atc Cnc Router Wood Carving Machine

Atc Cnc Router Wood Carving Machine

Product Tags : CNC Router Machine
Product Attributes :

1.  2000mm*3000mm /2000*4000mm,for the Z axis can be increased.

2.   9kw air cooled ATC spindle with 11kw  inverter(top brand in China)

3.   Ncstudio servo system (famous brand in the servo system)

4.  Ncstudio NK280 system (famous brand, mulifunctional, and longer life time)

5.  Taiwan Original TBI ball screw for Z travel

6.  Taiwan HIWIN Linear guide

7.  The linear type tool storage with 8 pieces




Product Description




Agent Want Finework 1530 Atc Cnc Router Wood Carving Machine With Rota


For furnniture carving and cutting, carbinet, office furniture, furnish ,decorative works.

It can change 6-8 knives within 15 seconds, highly improve the working speed, and save a lot of human labourface.



Features of 1530 Atc Cnc Router Wood Carving Machine With Rota machine:

1.  2000mm*3000mm /2000*4000mm,for the Z axis can be increased.

2.   9kw air cooled ATC spindle with 11kw  inverter(top brand in China)

3.   Ncstudio servo system (famous brand in the servo system)

4.  Ncstudio NK280 system (famous brand, mulifunctional, and longer life time)

5.  Taiwan Original TBI ball screw for Z travel

6.  Taiwan HIWIN Linear guide

7.  The linear type tool storage with 8 pieces



Parameters of 1530 Atc Cnc Router Wood Carving Machine With Rota machine:

Item

Description

Option

Model

FW2030ATC/FW2040ATC

Customize sizes available

Work area

2000*3000*300mm/ 2000x4000x300mm

Table size

3650*2300*1500mm

Transmission

X/Y rack and pinion drive, Z ball screw drive


Motor

Ncstudio servo motor and driver

Delta/Panasonic servo

Spindle

Power

9kw ATC air cooled spindle


Cooling

Air cooling


speed

0-24000rpm


Table type

vacuum absorption t-slot table


Travel Speed

0-40m/min


working speed

0-25m/min


Reposition Accuracy

0.005mm


Control System

Ncstudio NK280

Germany SIMENS

Command code

G code,HPGL,U00,mmg,plt,


Design software

ARTCAM/TYPE3/ CAD/CAM


Working Voltage

AC380v 3phase/50HZ


Temperature

0-45℃


Automatic tool changer

Disk 8 pieces tool changer

Linear  8 pieces tool changer

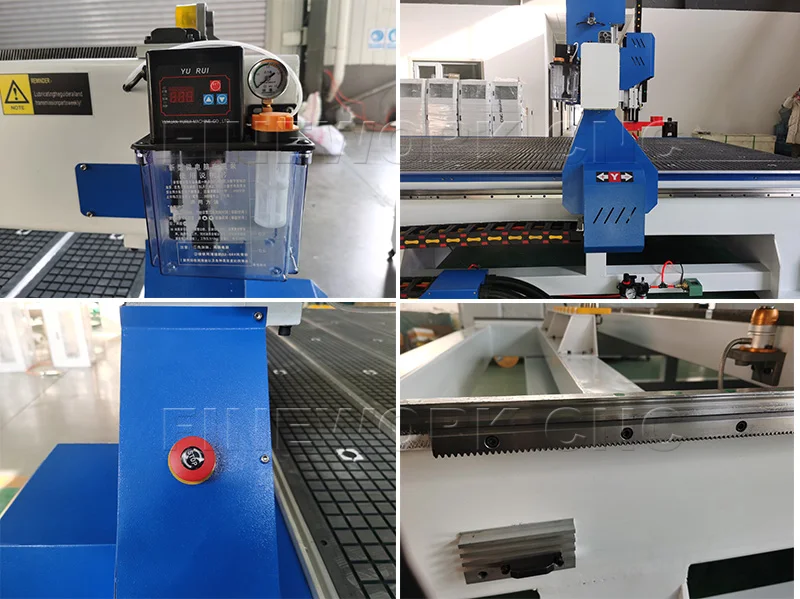

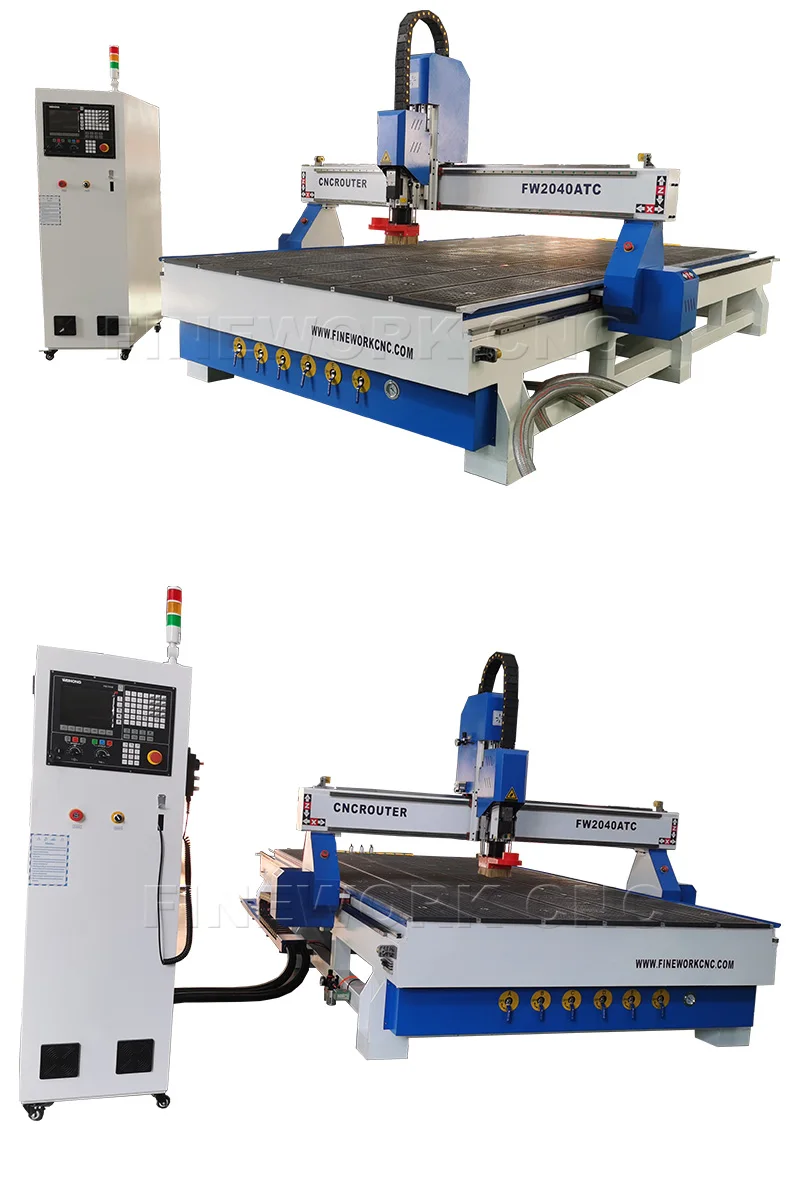

Main parts of 1530 Atc Cnc Router Wood Carving Machine With Rota machine:

 Agent Want Finework 1530 Atc Cnc Router Wood Carving Machine With Rota

Agent Want Finework 1530 Atc Cnc Router Wood Carving Machine With Rota

Agent Want Finework 1530 Atc Cnc Router Wood Carving Machine With Rota

Agent Want Finework 1530 Atc Cnc Router Wood Carving Machine With Rota
