Jinan Finework CNC Machinery Co.,Ltd
Effective working area:2000*3000*200mm
DSP A11 control system
Italy HSD 3kw air cooling spindle(with 24000rpm)
Taiwan Delta 3.7kw inverter
Vacuum & T-slot working table(with 42 vacuum holes)
Taiwan TBI ball screw
Taiwan HIWIN (or PMI ) Square linear guide
Japan 850w YASKAWA servo system(1kw driver+850w motor)
Heavy duty thicker and bigger welded steel tube frame

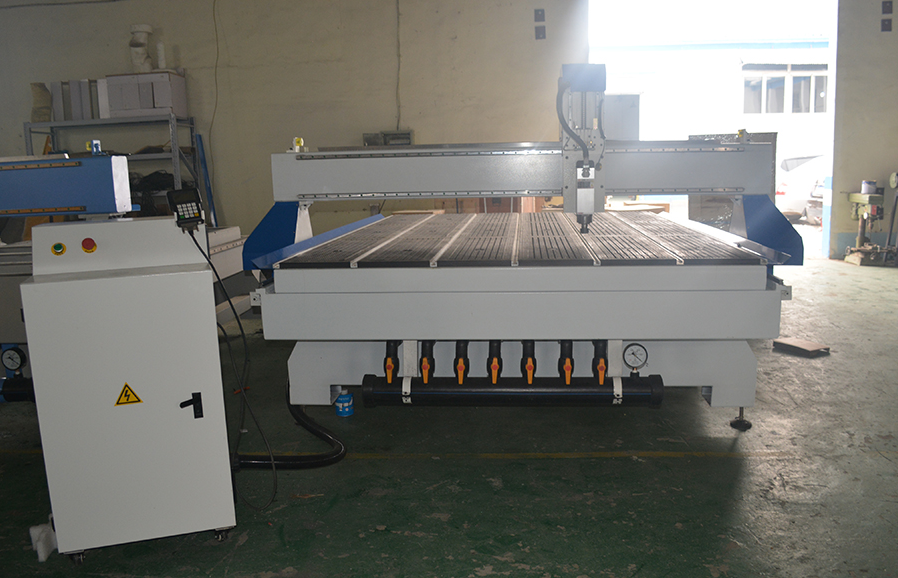

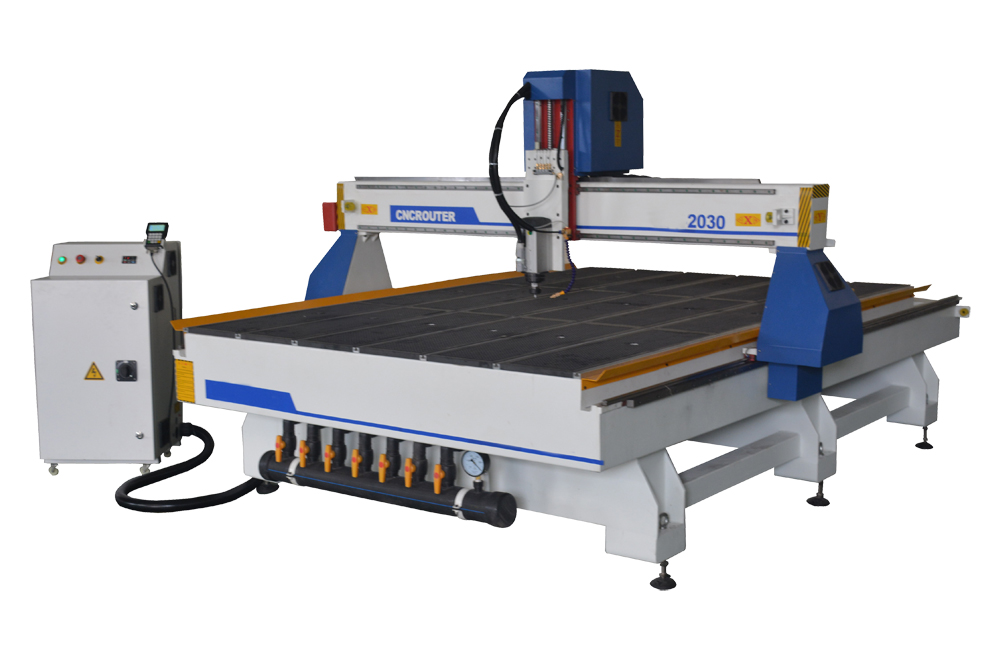

Machine picture：
Parameter:
| Descriptions | Parameters |
| Modle | FW2030 |
| Working area | 2000*3000*200mm |
| Control system | DSP A11 Control System |
| Spindle | 3kw Italy HSD air cooling spindle |
| Spindle speed | 0-24000RPM |
| Motor | 850w YASKAWA servo motor |
| Driver | 1kw YASKAWA driver |
| Inverter | 3.7kw E type Taiwan DELTA Inverter |
| Table surface | T-slot and vacuum working table |
| Frame | Heavy duty thicker and bigger welded steel tube frame |
| X,Y axis transmission | Helical rack and pinion drive for X,Y axis |
| Z axis transmission | Taiwan TBI ball screw for z axis |
| Linear rail | Taiwan HIWIN 20# linear guide |
| Dust Collector | 3kw dust collection with 2 pockets |
| vacuum pump | 7.5kw Tongyou oil vacuum pump |
| Options | Oil Lubrication System Japan OMRON limit switch for X,Y,Z axis Soft limit switch Tool sensor calibration Shanghai Cardiff cable The air gun |
Applications:
1.Wood furnitur industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: Advertising indentification, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, wooden planjs and other non-metallic mold.
