Cnc 4 Axis Atc Wood Router Cnc Engraving Machine for Wood Japan Canada
Cnc 4 Axis Atc Wood Router Cnc Engraving Machine for Wood Japan Canada Cnc 4 Axis Atc Wood Router Cnc Engraving Machine for Wood Japan Canada Cnc 4 Axis Atc Wood Router Cnc Engraving Machine for Wood Japan Canada Cnc 4 Axis Atc Wood Router Cnc Engraving Machine for Wood Japan Canada

Cnc 4 Axis Atc Wood Router Cnc Engraving Machine for Wood Japan Canada

Product Tags : CNC Router Machine
Product Attributes :

Working Table Size(mm):1300×2500

Condition:New

Range of Spindle Speed(r.p.m):1 - 24000 rpm

Positioning Accuracy (mm):0.01 mmNo. of Spindles:Single

Machine Type:CNC Router

Travel (X Axis)(mm):1300 mm

Travel (Y Axis)(mm):2500 mm

Repeatability (X/Y/Z) (mm):0.01 mm

Spindle Motor Power(kW):6KW

CNC or Not:CNC

Place of Origin:China

Brand Name:FINEWORKCNC

Voltage:AC380V 3phase (Option:220V1 phase or 3phase)


Product Description

Product Description

Specification
Description
Description


Working area
1300*2500*200mm


Positioning Accuracy
±0.03/300mm


Max. Working Speed
45000mm/min


Spindle
6kw air cooling spindle


Inverter
7.5 KW Fuling inverter


Frame
New Type Heavy Duty Body


Drive Motors
Leadshine servo motor and servo driver


Gantry structure
Thick Steel Gantry


Spindle Speed
0-18000RPM


Command Language
G code
Wire
High Soft Shjeld with Copper Wire to Protect Against Static Electricity


Limited Switch
Japan Omron Limited Switch


Collet
ER25


X,Y Resolution
<0.03mm


Details Images
6KW air cooled spindle with spindle cover protecting
DSP A11 control system, support offline operation, it is easy to operate and easy to learn.

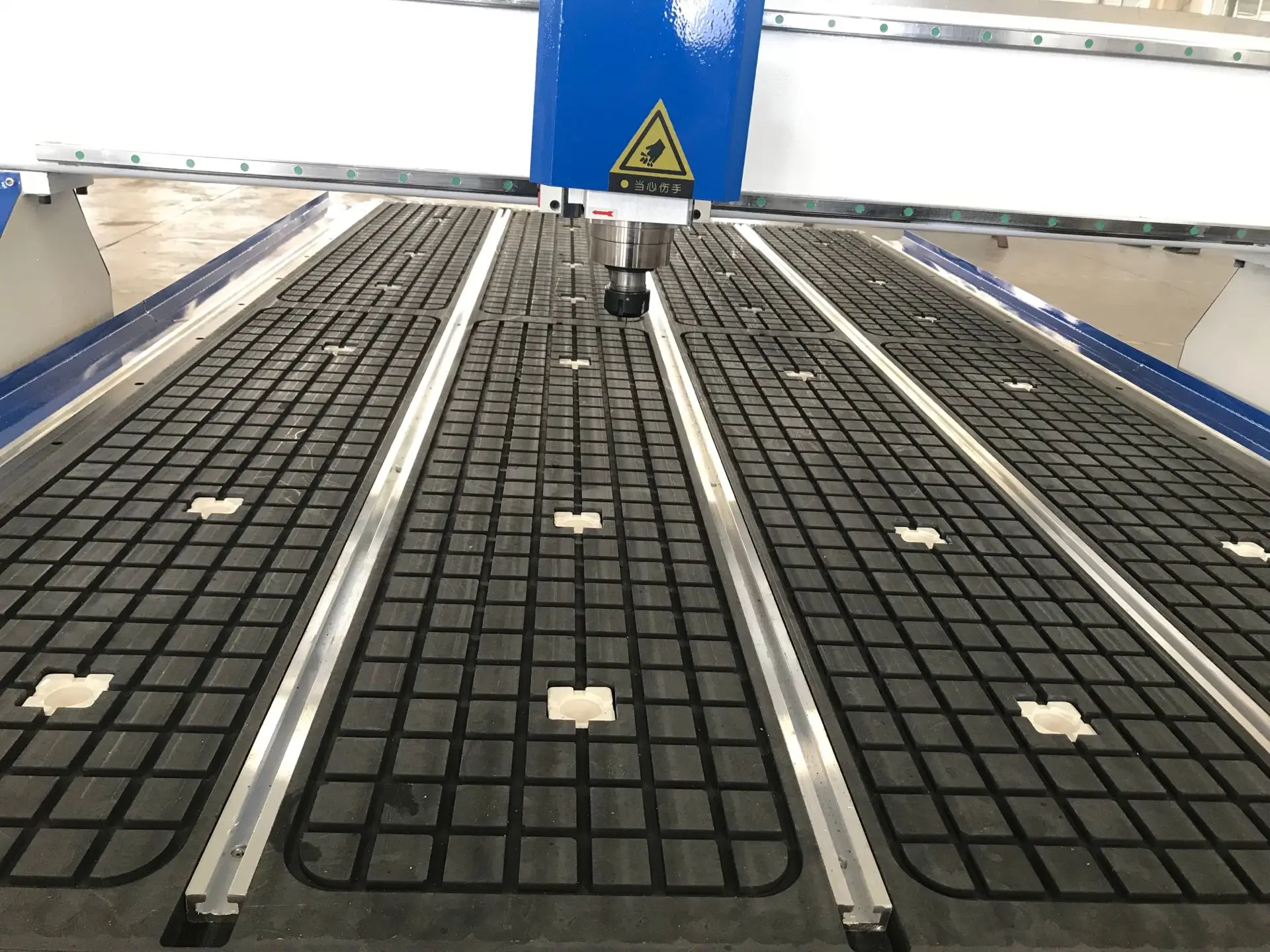

Vacuum &Tslot working table, double using table. It can fix board by vacuum absorption or by claps.
Thicker gantry and square linear guide rails.
Oil lubracation system

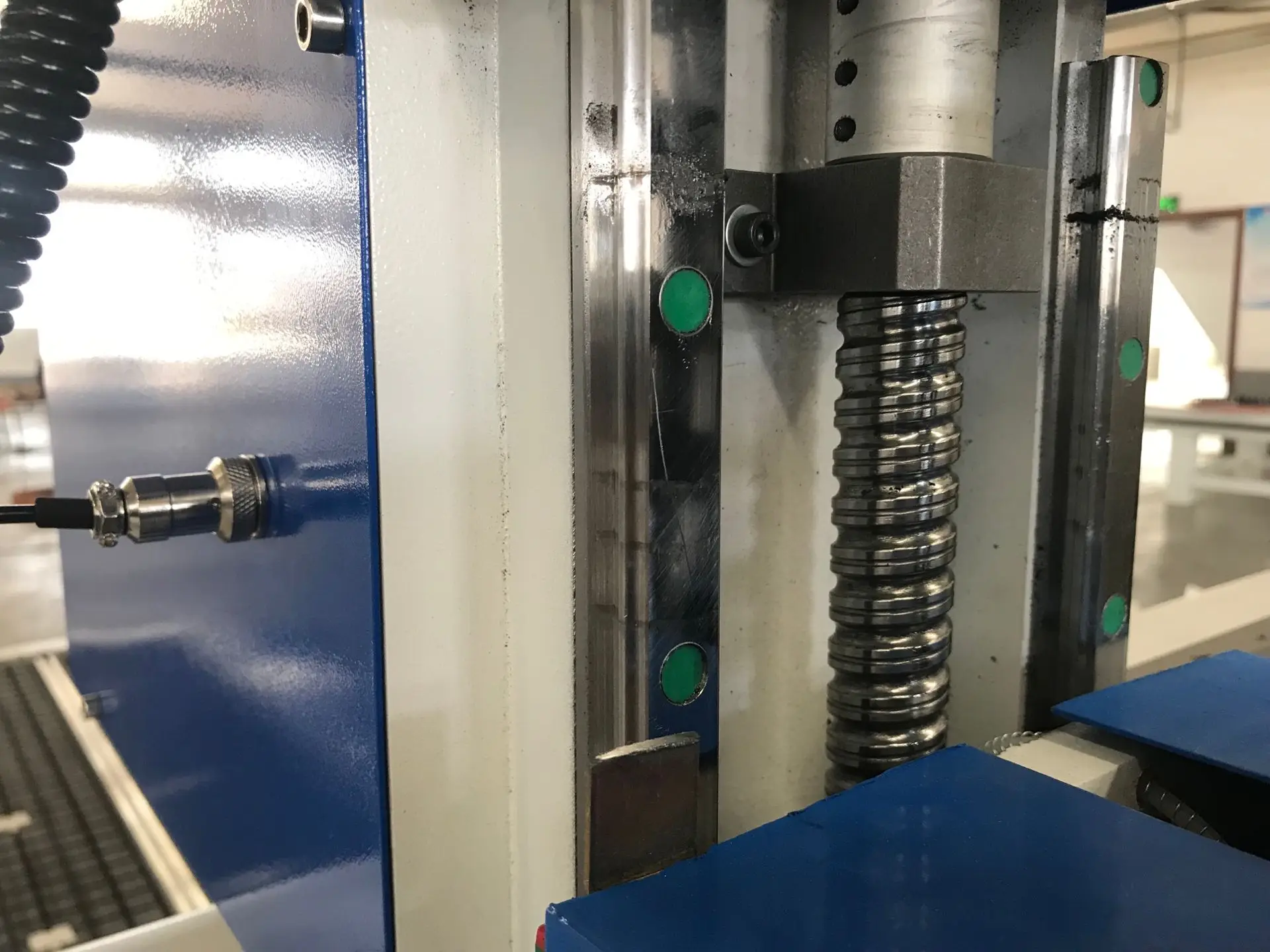

High precision ball screw transmission for Z axis
Heavy duty machine bed, with vacuum table

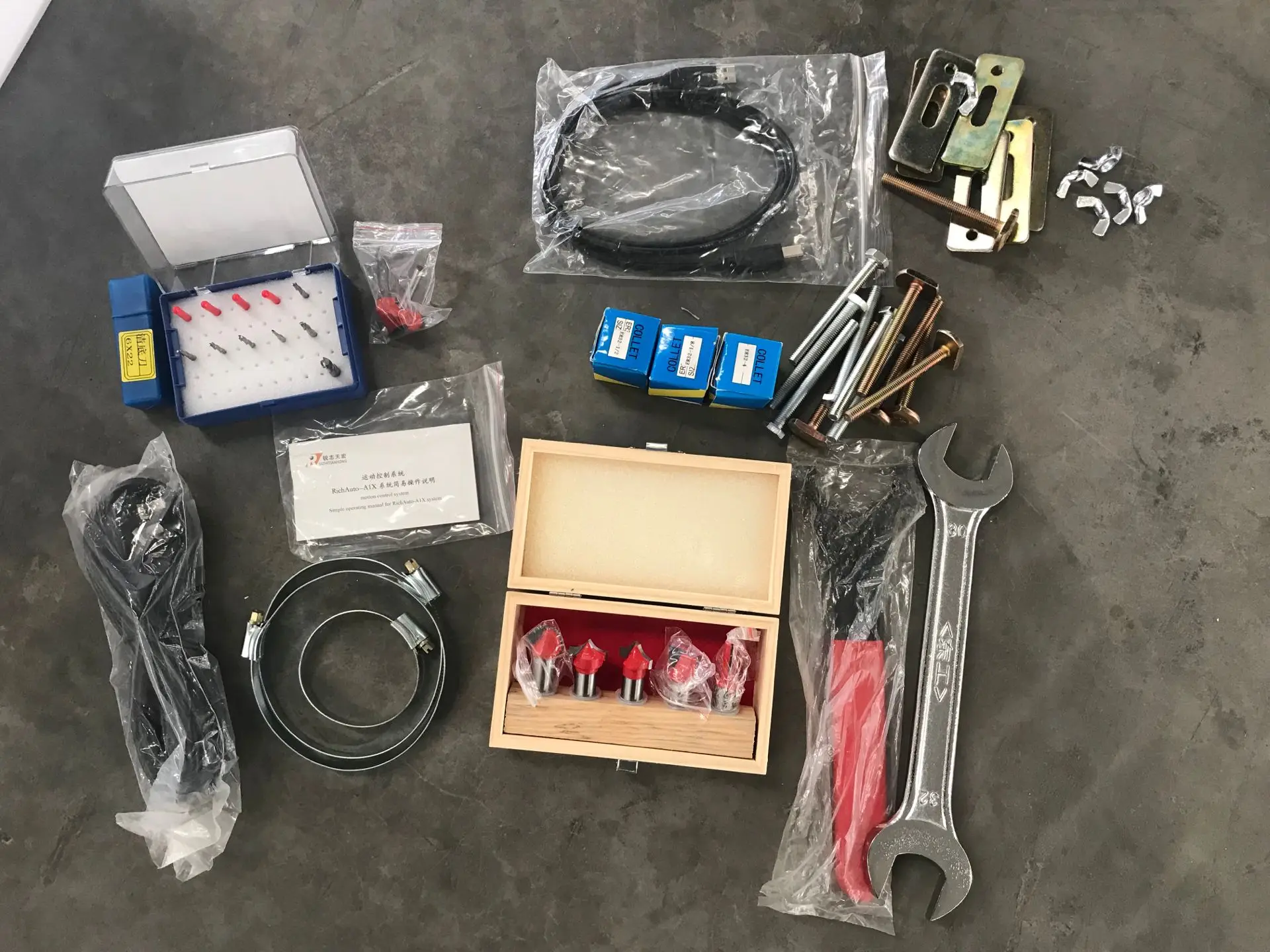

What's in tool box.
Vacuum pump
