Introduction

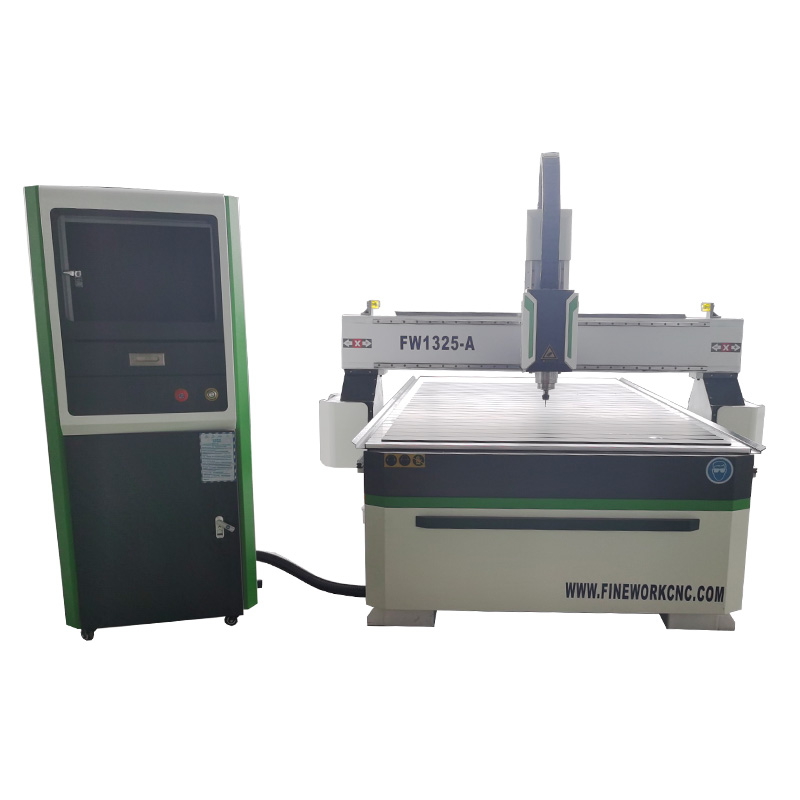

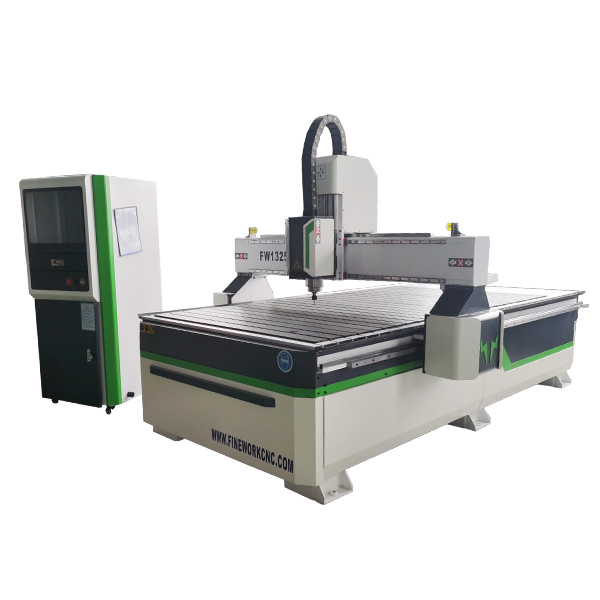

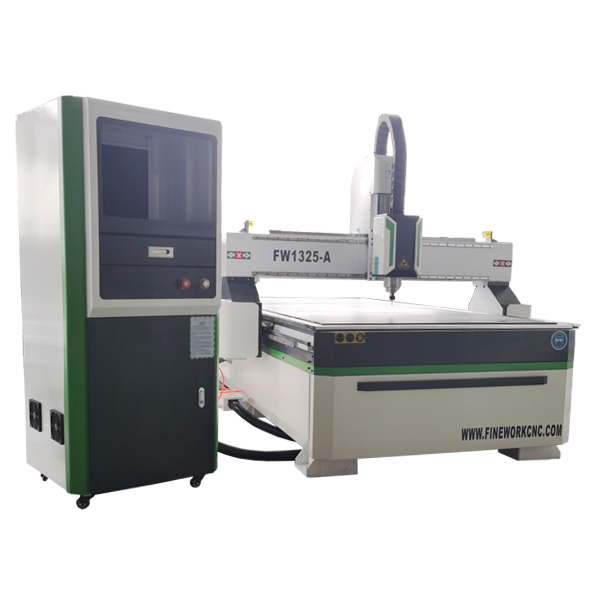

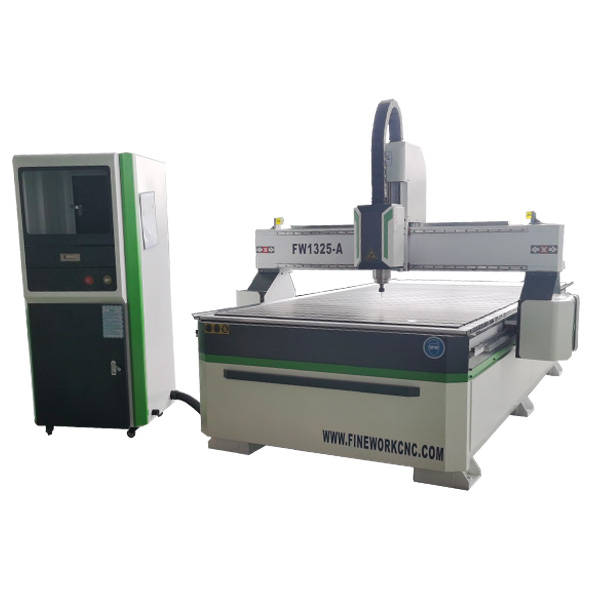

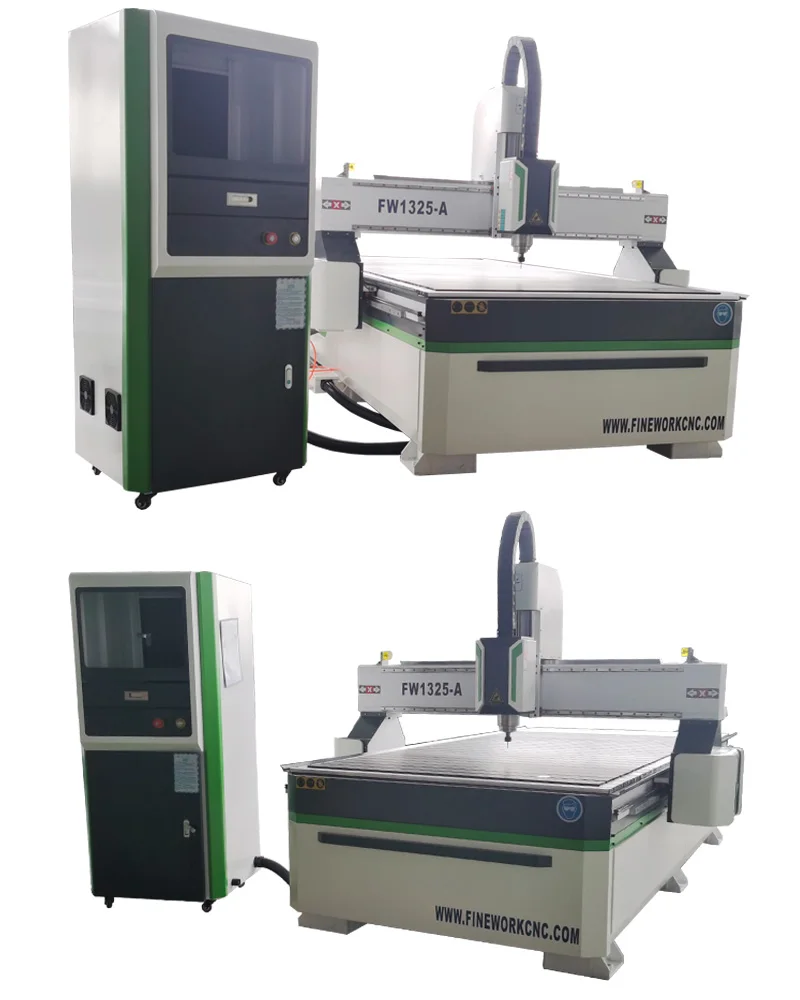

· The cnc stone router machine is specially designed for woodworking industrial
· All components used are top quality.
· Three 3kw water cooling spindle.
· Thicken and bigger steel pipe structure after special treatment, well welded, no distortion for whole structure, high precision and long using life.
Introduction
· The cnc stone router machine is specially designed for woodworking industrial
· All components used are top quality.
· Three 3kw water cooling spindle.
· Thicken and bigger steel pipe structure after special treatment, well welded, no distortion for whole structure, high precision and long using life.
Features
· Working area:1300*2500*200mm
· Control system:Ncstudio control system
· Inverter: 3.7kw Taiwan FULING inverter, the best brand in China.

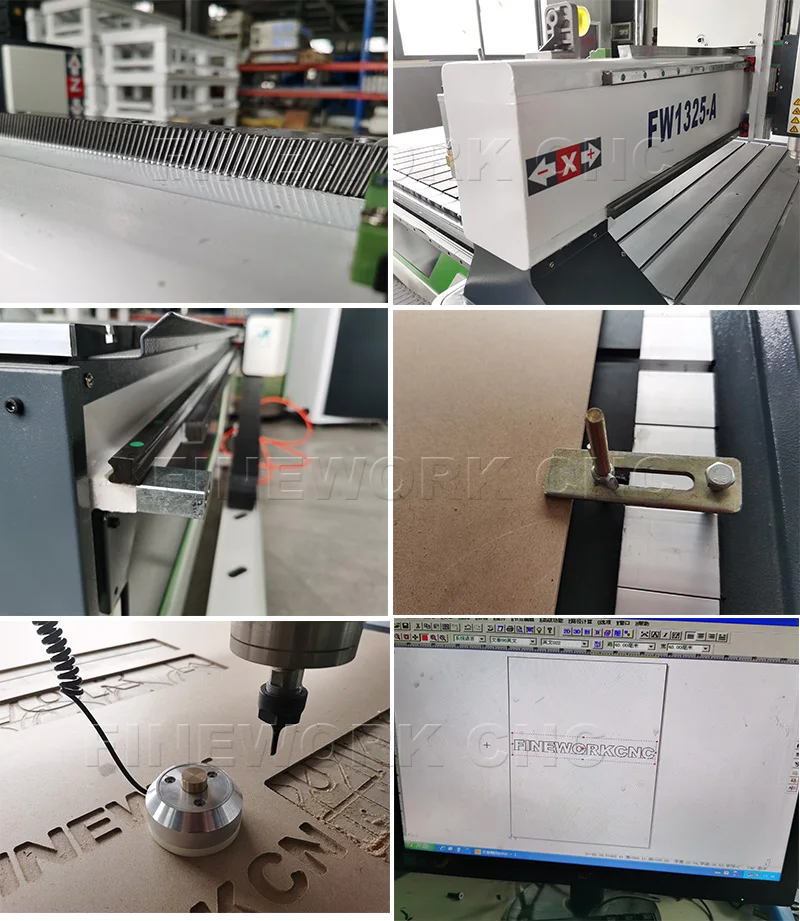

· Transmission:X,Y axis #20 HINWIN square linear guide,Helical rack gear.Z axis #20 HINWIN linear guide,Taiwan TBI ball screw.
· Working surface:T-slot , vacuum working table for option
· Optional parts:5.5kw vacuum pump,3kw double bag dust collector, rotary device
Parameters
Description | Parameter |
X,Y,Z Working Area | 1300x2500x200mm |
Table Surface | T-slot working Table ,vacuum table for option |
Frame | Thicker and bigger welded Structure |
X, Y Structure | #20 Tiwan HINWIN linear guide rail,helical rack gear |
Z Structure | #20 Tiwan HINWIN linear guide rail,Taiwan TBI Ball Screw |
Max. Power Consumption | (Without Spindle)6Kw |
Spindle Power | 3KW water cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Stepper motor, servo motor for option |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | Ncstudio control system |
Collet | ER20 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 Software |
Running Environment Temperature | 0 - 45 Centigrade |
PS:All the working area and specifications can be customized according to your requests.
Options:
♥ DSP controller A11
♥ Dust collector
♥ Water tank table with sprayer
♥ Vacuum and T-slot working table
♥ Servo motor
