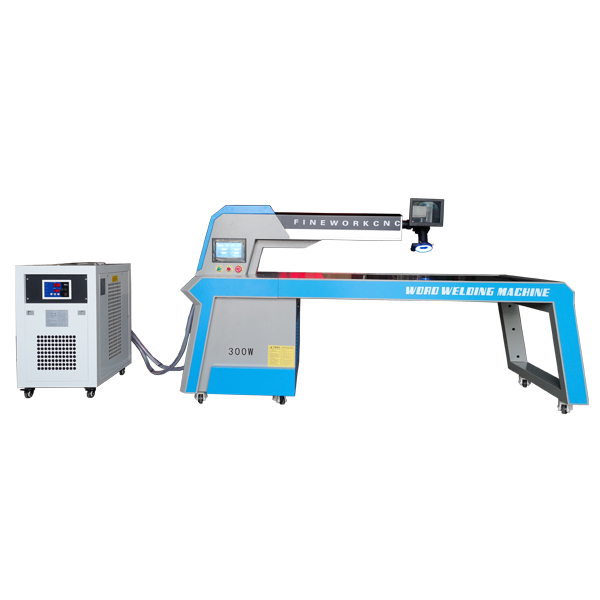

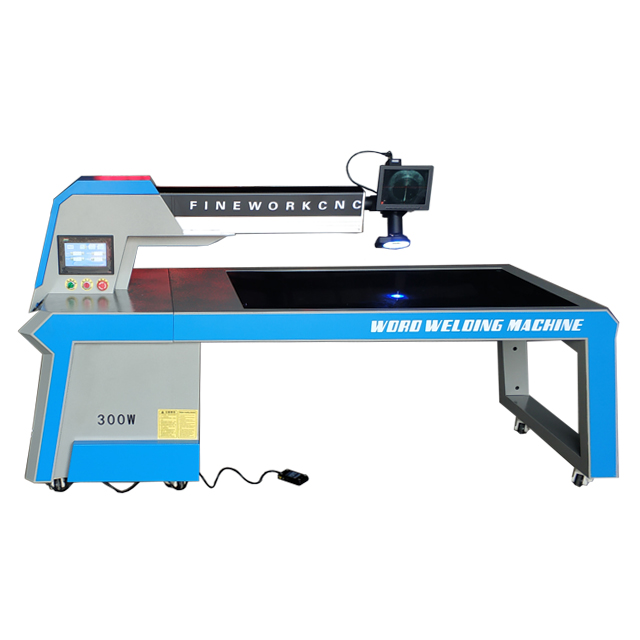

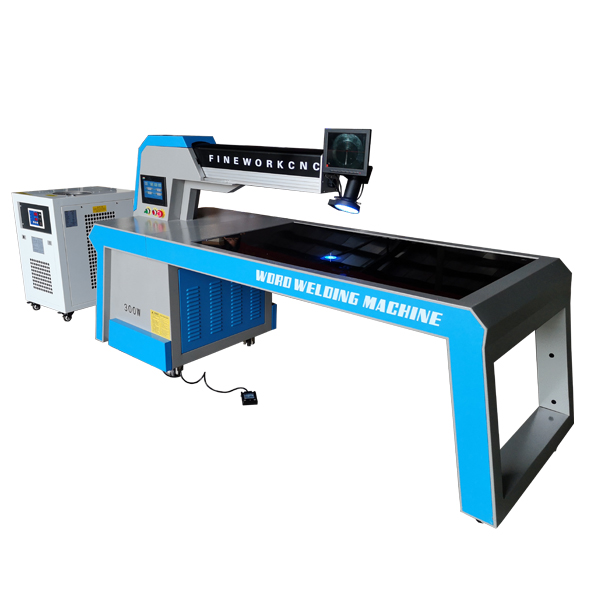

YAG laser welding machine

Product Attributes :

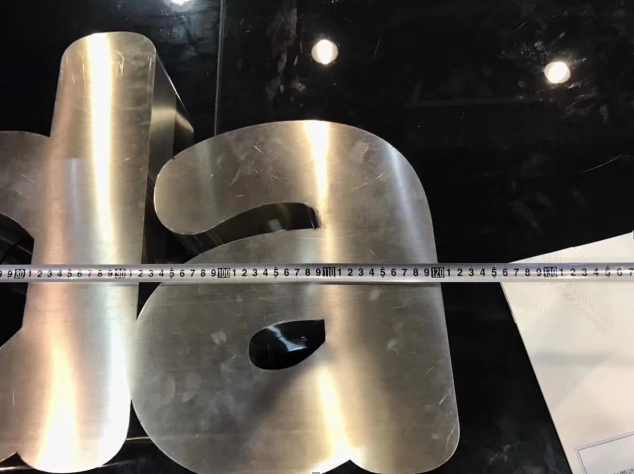

The advertising word laser welding machine is widely used in special welding of stainless steel, iron, galvanized, LOG and other products. The company's high-tech equipment made with British advanced technology has completely replaced the traditional argon arc welding, soldering and other processes. High welding efficiency, no color difference on the surface, no need for polishing and polishing, saving time and labor.

Product Description

Technical Parameters

Model	FW-300	FW-500
MAX Power	300w	500w
Laser source	Nd:YAG	Nd:YAG
Laser length	1064mm	1064mm
Welding minimum melting pool	0.1mm	0.1mm
Welding depth	1mm	1mm
Pulse Width	0.1-20msContinuously adjustable	0.1-20msContinuously adjustable
Pulse frequency	1-100HZ Continuously adjustable	1-100HZContinuously adjustable

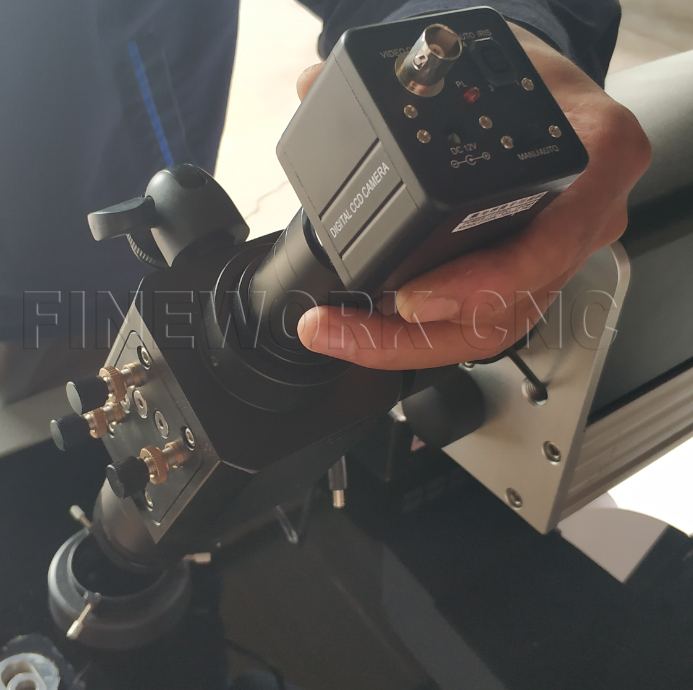

Observation system	CCD camera with red light positioning	CCD camera with red light positioning
Power consumption of the whole machine	≤9kw	≤12kw
electricity demand	220v/single phase/50Hz/30A	220v/single phase/50Hz/30A
Working area (mm)	900*600mm	2m*2.3m

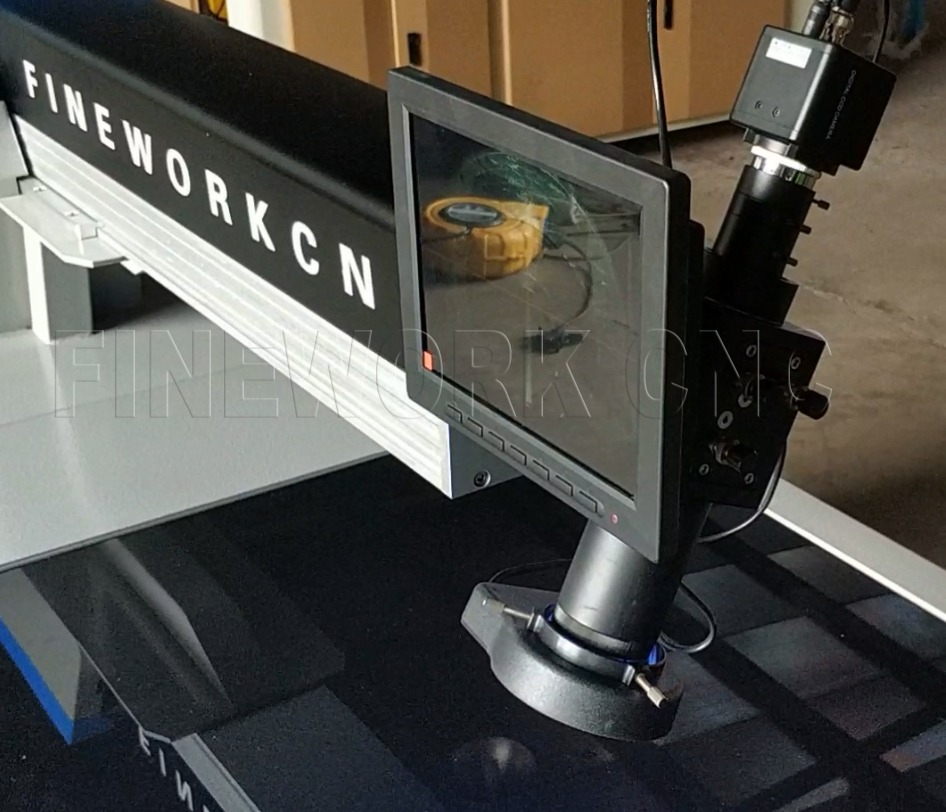

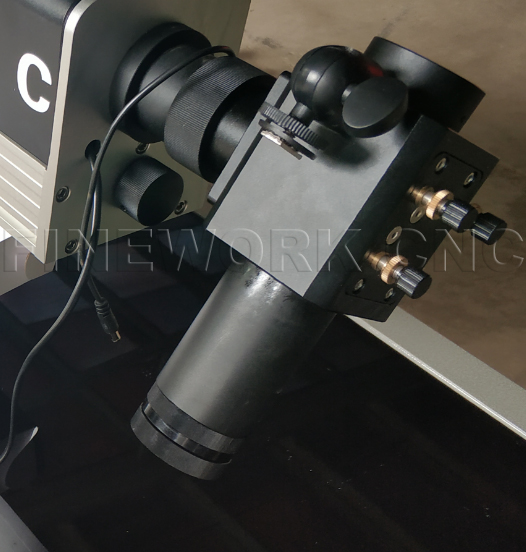

Adpot the glossp double coating mirror,the welding effect is clear and intuitional.

Reflect the welding details clearly,assuring the high welding accuracy and reducing the operator's visual fatigue

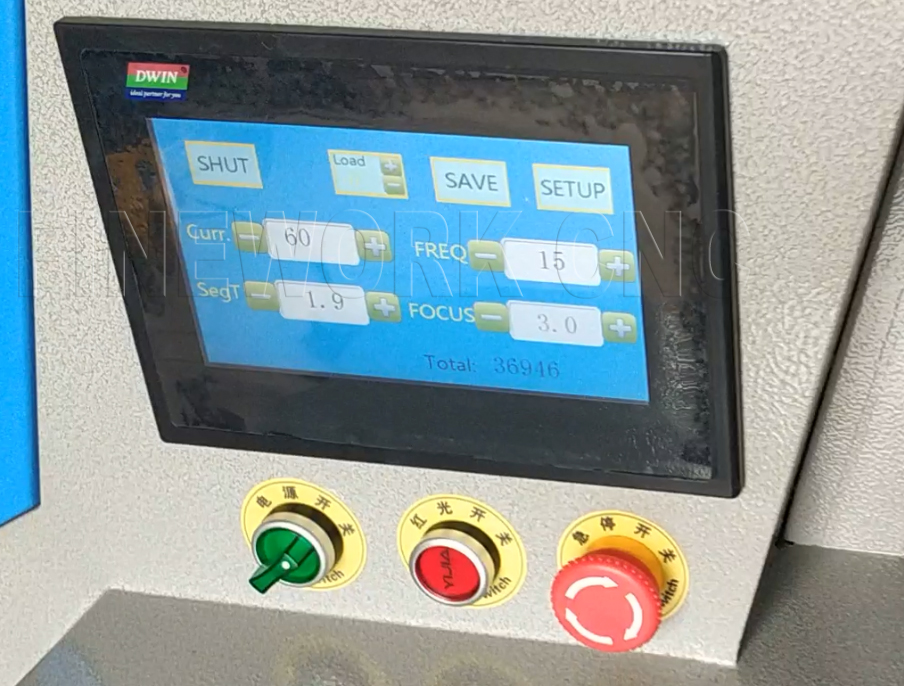

HD LCD touch control screen ,have chinese and english language ,easy operate

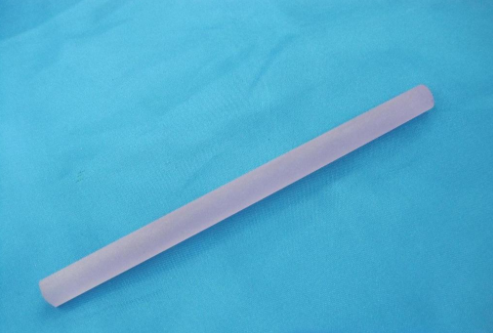

used the super 7*145 laser rods ,have characteristic :high gain ,high laser power ,beautiful welding point ,good thermal conductivity and thermal shock.
