1. Double servo control system, high precision , fast speed , improve the efficiency and stability of the machine.
2 .Original Germany imported cutter can be used circulated, low cost
3. The grove depth, frequency adjustable, to meet the need of different materials and thicknesses.
4. The appearance is compact,small footprint .small power can run the machine,save cost .
5.Unique encoder closed-loop self test system,make up if there is any error intelligently,to ensure 0 error of the machine.
6. The software easy to learn ,easy to operate.support: Input with DXF/AI files, support CAD,TYPE3, COREDRAW, ILLUSTRATOR,etc.software free upgrade for lifelong time.
Machine parameter :
| Model | Finework cnc | |||||||
| Material thickness | Aluminum:0.3-1.5mm, stainless:0.3-0.8mm | |||||||
| Material width | 20 ~ 135 mm or per your request | |||||||
| Power | 1000W | |||||||
| Voltage | AC220V,50/60HZ 1p | |||||||
| Air Pressure | 0.8MPA | |||||||
| Precision | 0.05 mm | |||||||
| Document format | AI/DXF | |||||||
| Feeding speed | 10~40M/MIN | |||||||
| Materials | aluminum and stainless. | |||||||
| Letter Range | 80mm and more | |||||||
| Machine Size | 220x80x165cm | |||||||
| Net Weight | 400KG | |||||||
| Precision | 0.05mm | |||||||

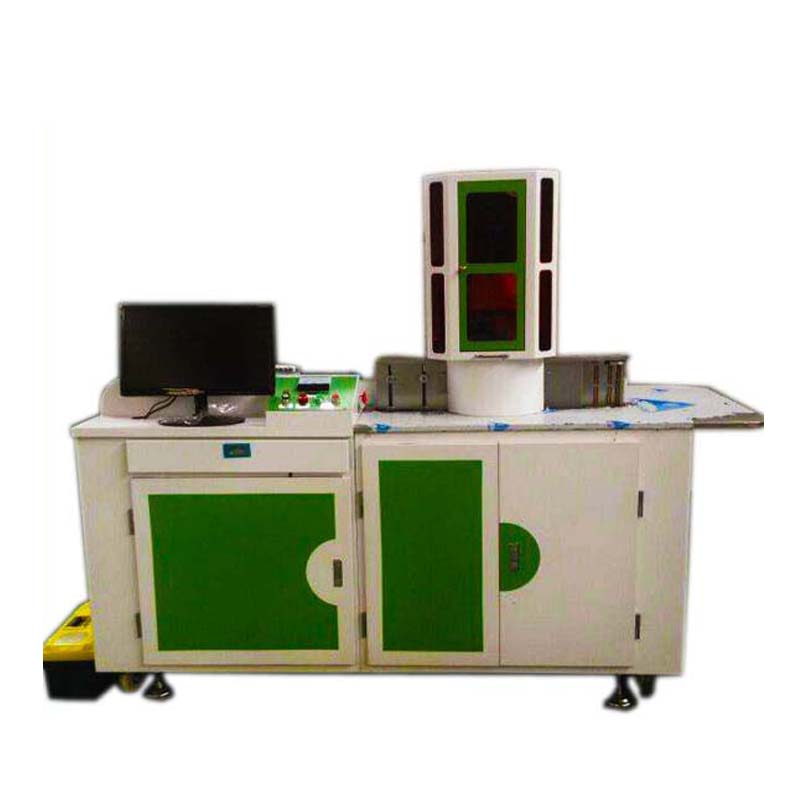

Machine picture show :

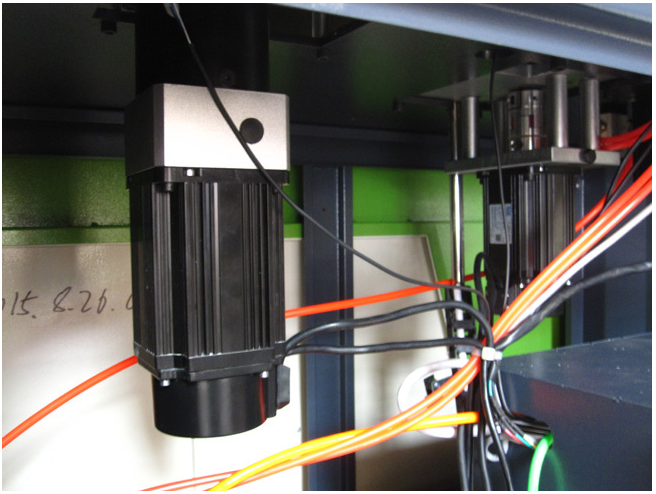

Cutting:
Double servo motor control system,ensure the cutting speed and strength.
Guide screw transmission ,automatic cutting ,the speed and times of cutting can be adjusted by software

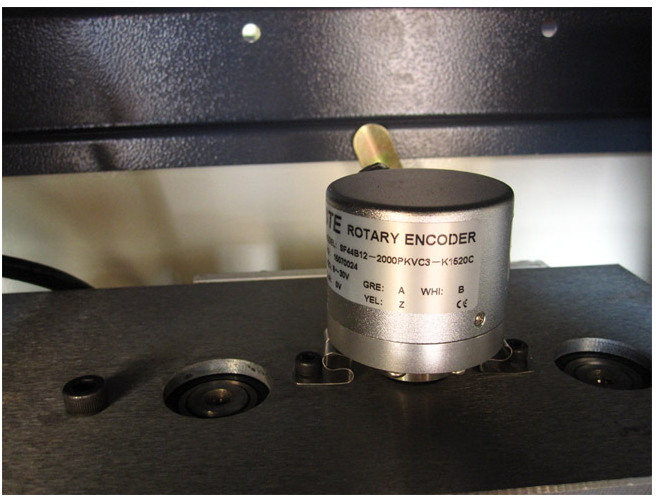

Encoder:
Closed-loop self test system with encoder,with an accuracy of 0.1mm.

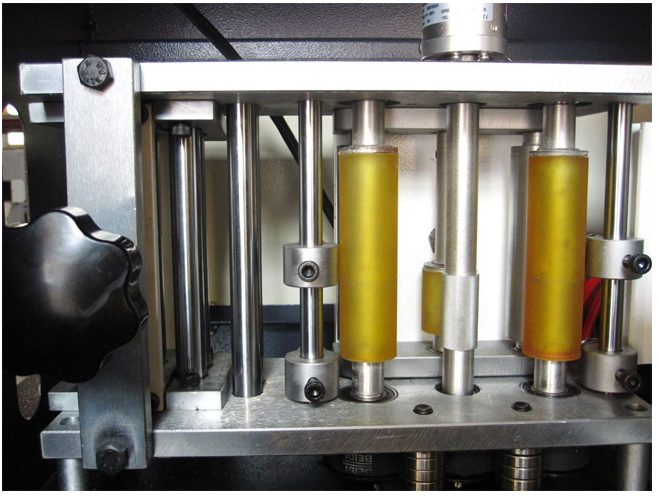

Feeding:
Rubber roller steady feeding,no scratch for the material.

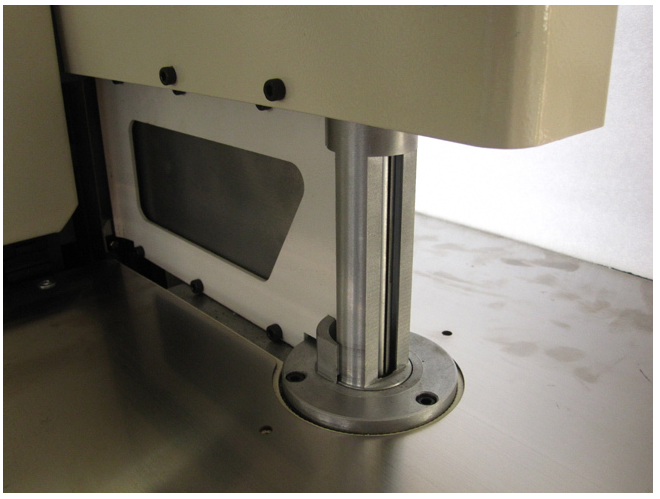

Bending:
Servo motor control,pat bending ,small springback,easy to bend small arc.
The bender is made of hard metals,very durable for years.
