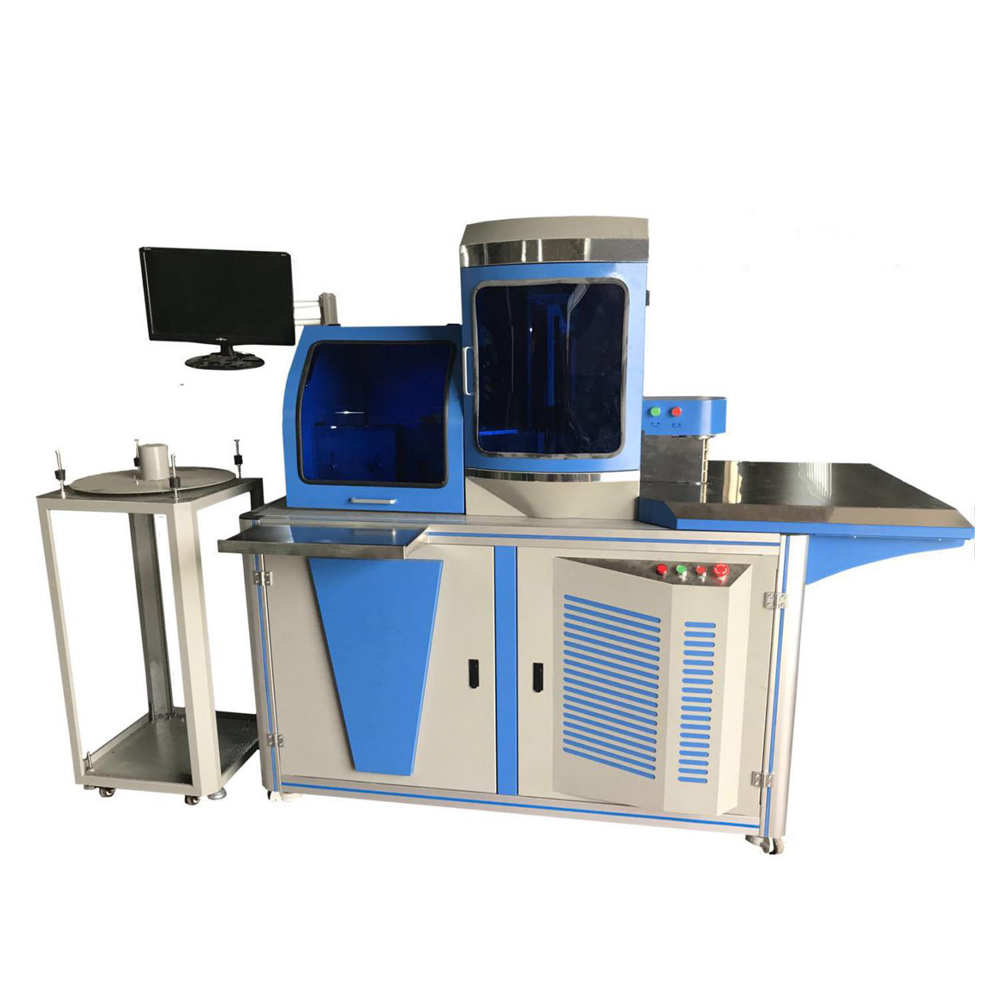

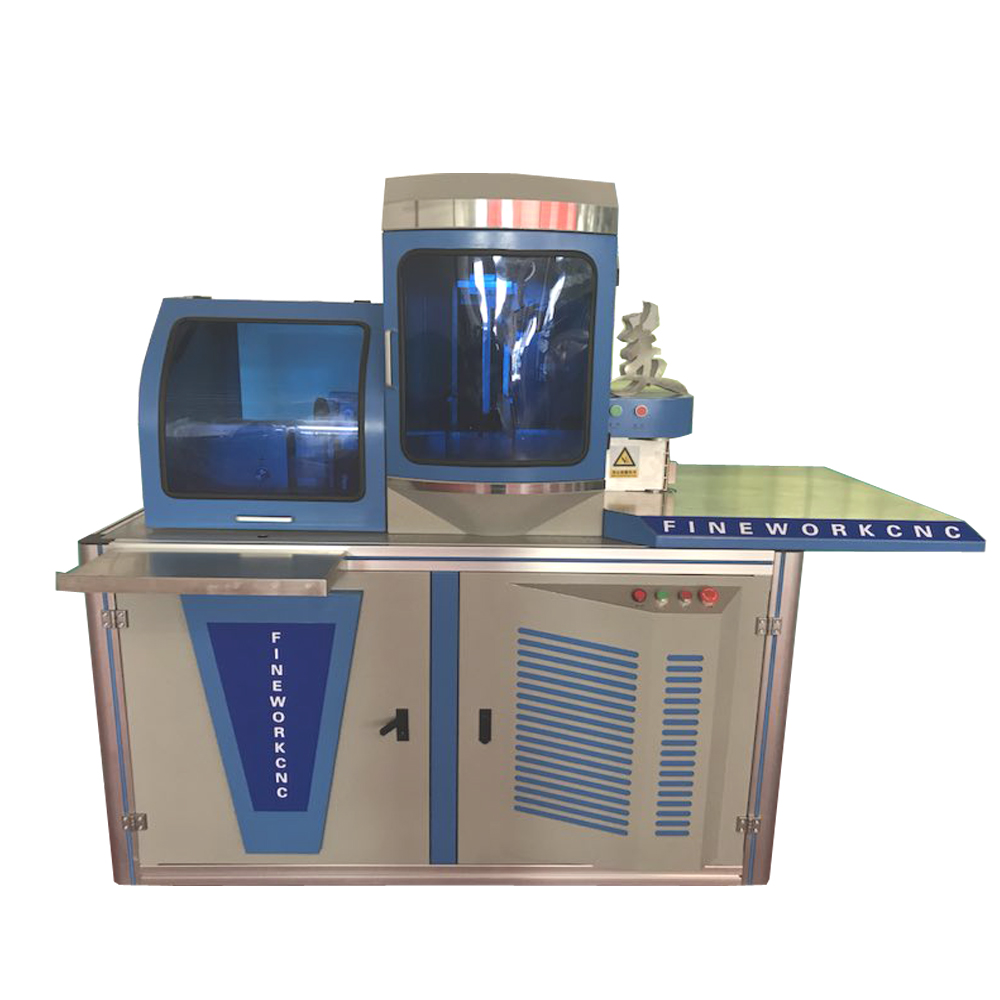

Finework Channel letter manual bending machine for outdoor letter word

Finework Channel letter manual bending machine for outdoor letter word

Product Attributes :

Product Description

Feathure

A: 16 axises linkage, feed easily and accurately

B: Adopt alternating bending mode to greatly improve the accuracy and efficiency

C: Proceed soft and hard material on the same platform, save the time and energy to switch the slotting knife

D: Automatically test the slotting depth, with function of repeatedly feeding cutter, extend the lifespan of the cutter

E: Unique pneumatic clamping for material feeding. No need to change the parameter to adjust the clamping with the material thickness to avoid material indentation

F: Adopt stepper motor control to achieve high stability and fast speed

G: Perfect match with engraving machine, plasma cutting machine, laser cutting machine

H: Automatically identify inside and outside of graphics, automatically calculate the length of each segment, start and stop at any point to join the word conveniently

Parameter

sheet metal bending machines for stainless steel make letters

Machine Technical Parameters
Working Principle	High accurancy, Auto-Feeding, Auto-Notching, Auto-Bending
Model	FW-SV
Application Material	Aluminum flat strip, Aluminum strip with folded edge,
	Aluminum profile, Stainless Steel, Galvanized iron
Material thickness	0.3mm-1.2mm
Material width	10mm-130mm (also can be customerized)
Feeding Speed	60mm/s
Air Pressure	0.6-0.8MPA
Control Axis	16 axises linkage
Max Total Power	5KW
Max Work Power	2KW
Voltage	AC220V,50HZ
Slot Degree	45°-135° (no limit for flat material)
Min Bending Diameter	15mm
Precision	0.05mm
Readable File	DXF, AI, PLT
Compatible Software	ARTCAM, CASMATE, TYPE3, CORELDRAW, ILLUSTRATOR, FLEXISIGN, ENROUTER
Dimension	2450mm830mm1610mm
Net Weight	360kg
