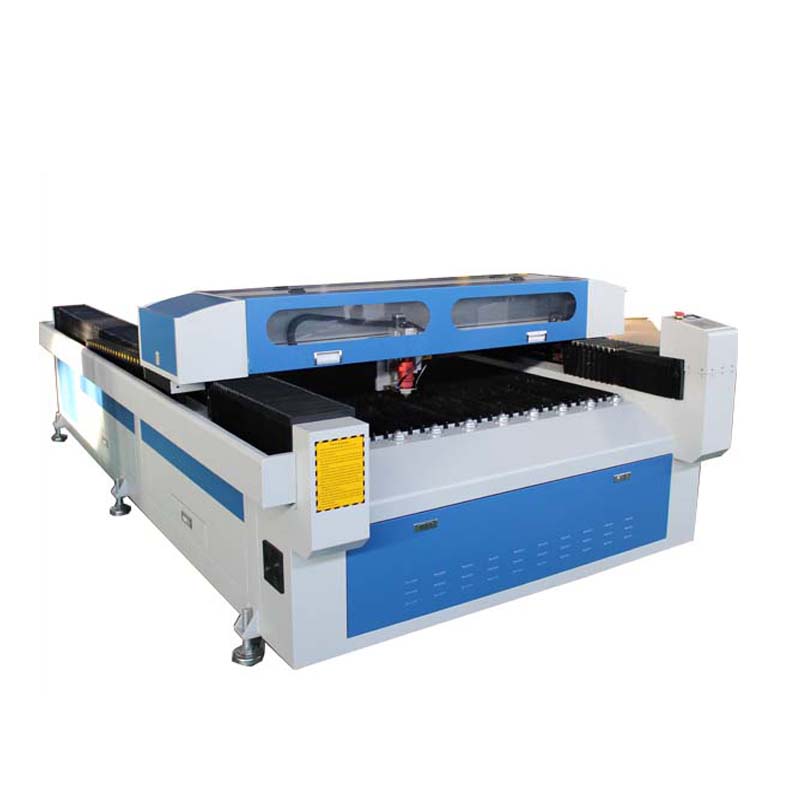

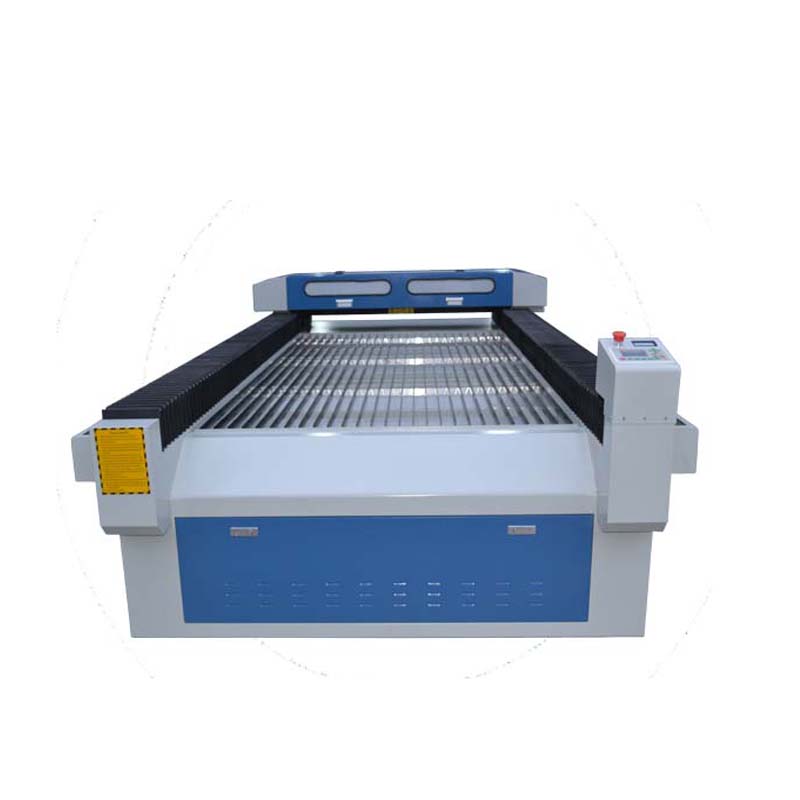

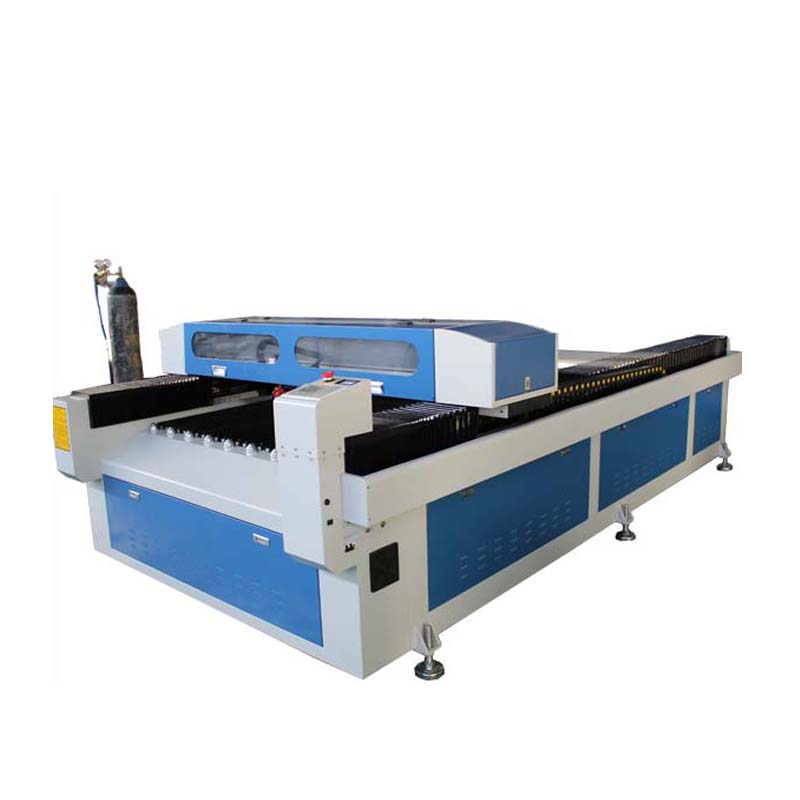

FW1325 metal and unmetal laser cutting machine

Work area (mm)

1300*2500mm

Machine Dimension:

2150*1430*1100 mm

Laser tube power

60/80/100/150W

Engraving speed

<500mm/s

Cutting speed

<400mm/s

Communication interface

USB

Work table

Strip panel/Honey comb board/auto feeding laser table

Location  precision

<0.01mm

Power supply

AC220V  +/-10% 50Hz

Drive mode

Stepper motor

Total power

<1250W

Design software

Coreldraw, Autocad

Picture format supported

PLT, DXF, BMP,JPEG, CDR,DWG

Color separation

reaches 256 colors to cut

Cooling system

Industrial chiller CW5200/CW6000

Working temperature

0 -45°C

Working humidity

5-95%  free of condensate water

Net weight

750KG
