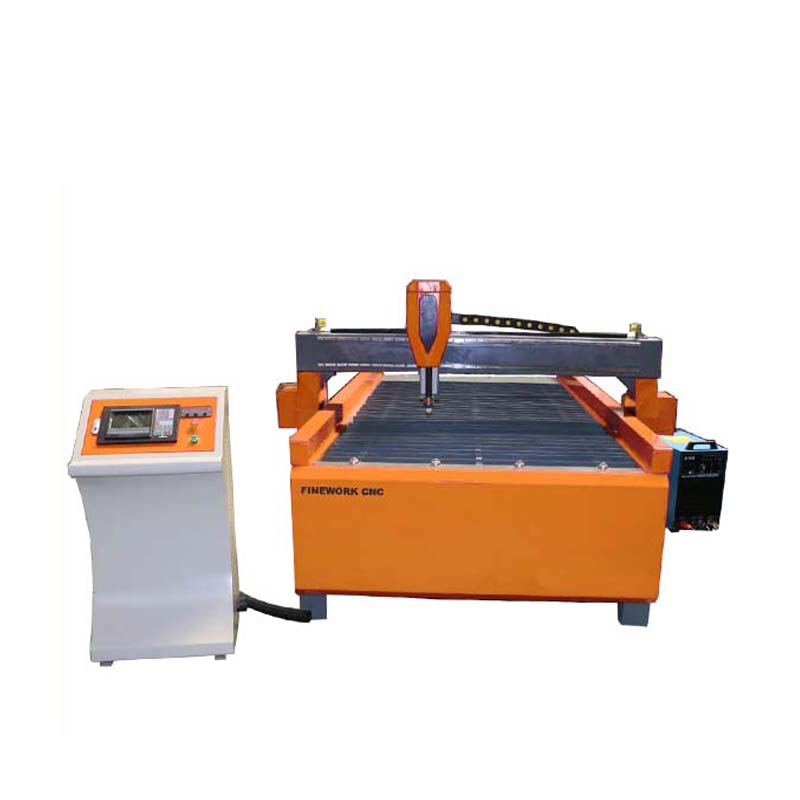

Plasam cutting machine for midle thick metal

Working Table

Blade table

2

Cutting thickness

0.3-20mm

3

Cutting speed

0-8000mm/min

4

Plasma Generator

HUAYUAN

 5

Motor and drive

Stepper motor, Yako drive/Servo motor and drive

5

Document transmission form

USB Interface

6

Working Form

Untouched Arc Striking

7

Control system

START control system with Torch Height Controller(THC)

8

Working Voltage

3-Phase 380V,60Hz/220V,60Hz

9

G.W.

1000KG

10

Packing Size

12.0 CBM

1 Welded lathe bed of thick-wall profiled steel, more solid and stable.

2 Reasonable lathe table design, 10 mm thickness steel plates fixed on lathe table covered by cast sheath with spikes.

 Steel plates will not be damaged even under raging flame. The level difference of whole double-deck platform remains in 0-1.5mm.

3 Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection.

4 Panasonic Servo motor,  high accuracy rack transmission. Low noise, stable and accurate coordinate movement.

5 Start control system made in Sino-US joint venture and design Software Type3 and Ucancam with auto material saving function.

6 American Cut-Master power supply (Power: 100A) together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma head and work piece

automatically in order to ensure cutting accuracy.

7 Best choice for all kinds of different thickness material and heterotypic sheet cutting.
