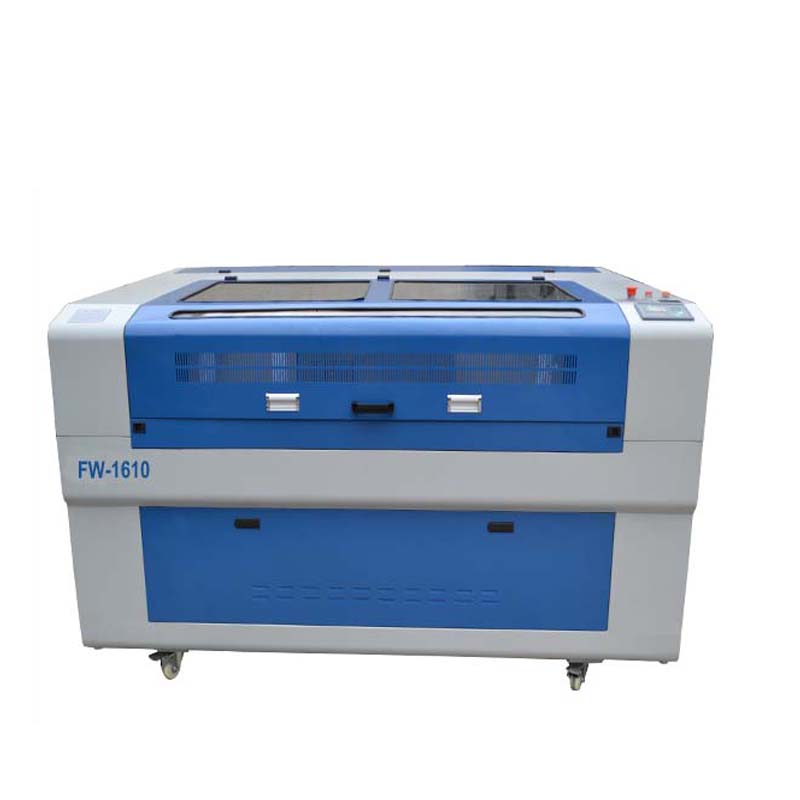

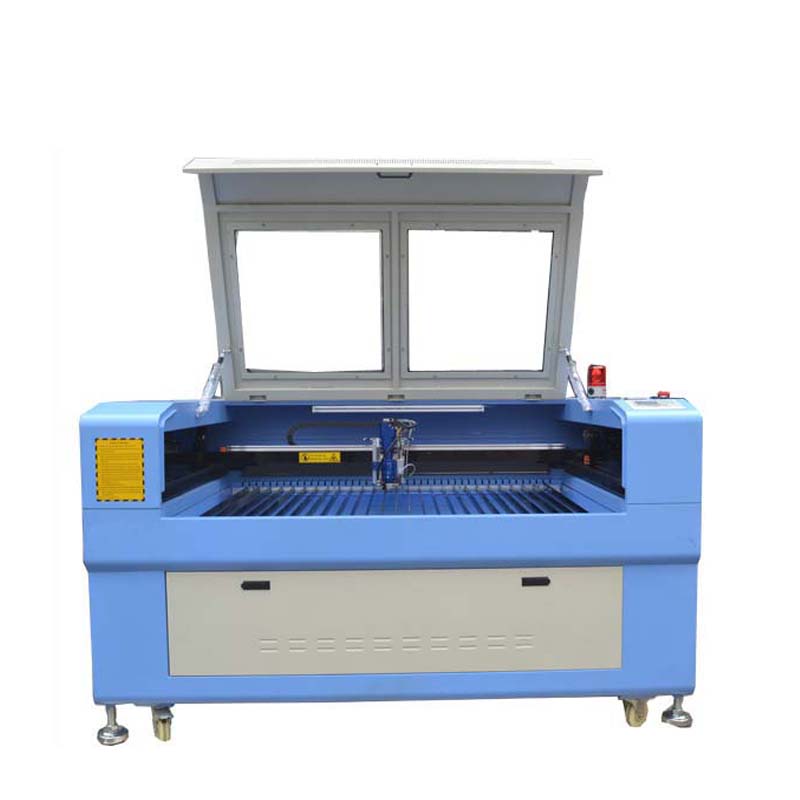

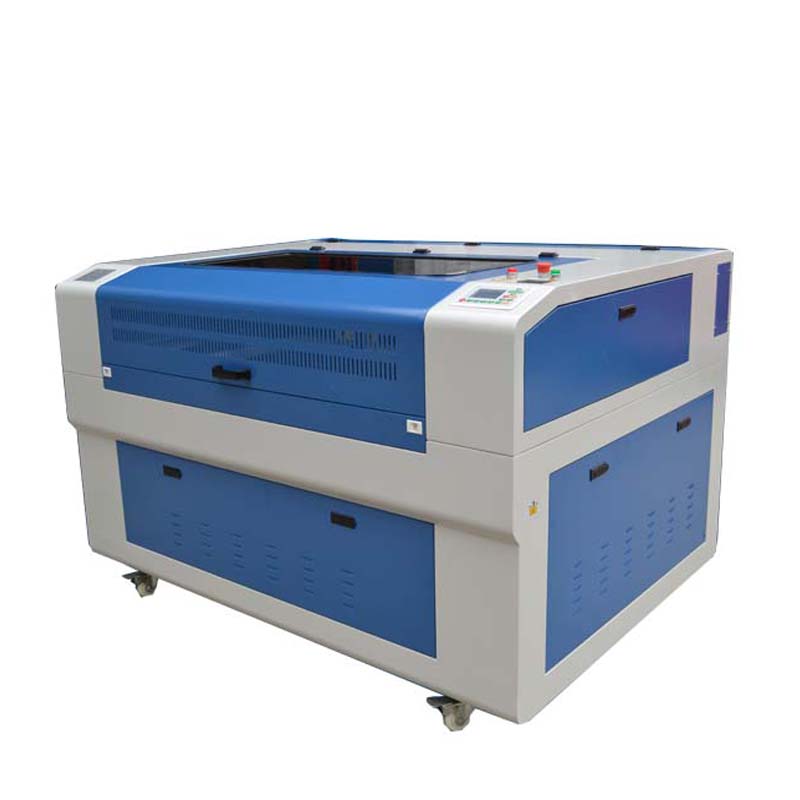

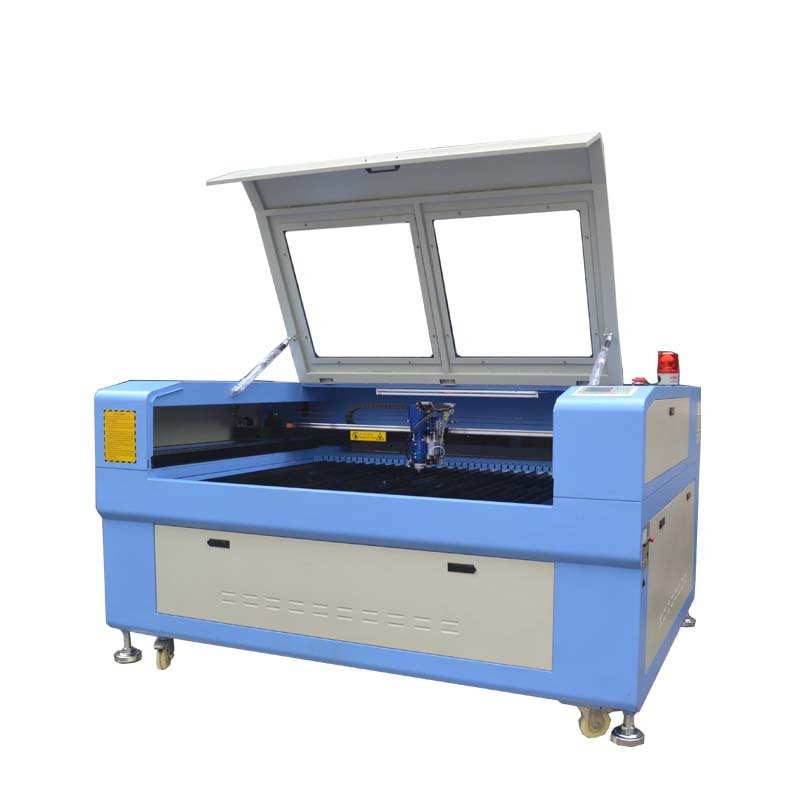

FW1390 metal laser cutting machine

Product Attributes :

Feature

1,The integration of high strength frame type lathe bed structure, good rigidity, ensures the high stability of the equipment.

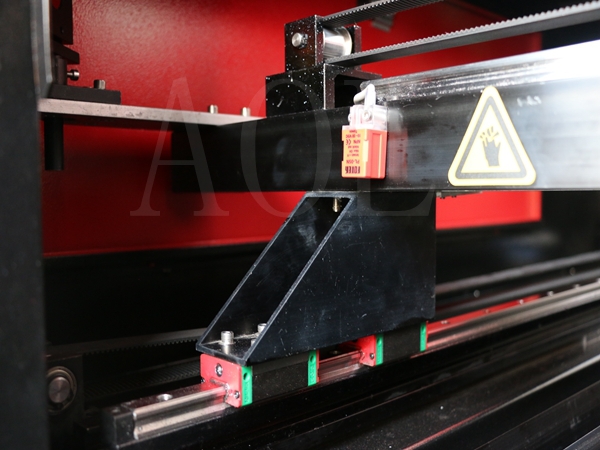

2,Guide rail base with high precision gantry , and adopts imported linear guide rail, installation and debugging adopt precision collimator test, ensure the high speed and high precision.

Product Description

Parameter :

Model	FW1390/1610 co2 metal laser cutting machine price
Working area	1600*1000mm
Laser power	150W glass laser tube
Laser type	CO2 laser tube,water-cooling
Engraving speed	0-40000mm/min
Cutting speed	0-20000mm/min
Power supply	220V/50HZ , 110V/60HZ
Position accuracy	0.01mm
Repetition accuracy	0.02mm
Graphic format supported	BMP, PLT, DST, DXF, AI
Guide rail	Hiwin from Taiwan
Transmission method	Belt transmission
Software supported	CorelDraw, PhotoShop, AutoCAD,TAJIMA
Driving system	Stepper motor and Leadshine driver
Net Weight	650kg
Optional part	Partial up-down work table, USB Port, Autofocus

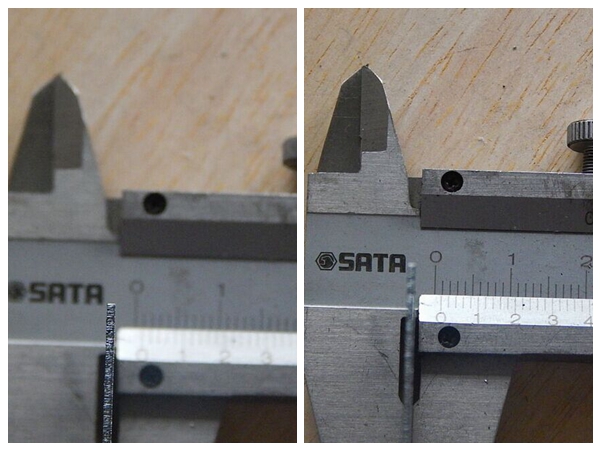

Cutting thickness and speed

Material	Thickness	Speed	Assistant gases	Pressure
Carbon steel	0.5	2.4-3m/min	Oxygen	0.5-0.6
Carbon steel	1.0	1.8m/min	Oxygen	0.5-0.7
Carbon steel	2.0	1-1.2m/min	Oxygen	0.5-0.8
stainless steel	0.5	2.4-3m/min	Oxygen	0.5-0.6
stainless steel	1.0	1.8m/min	Oxygen	0.6-0.7
stainless steel	1.5	1-1.2m/min	Oxygen	0.6-0.8

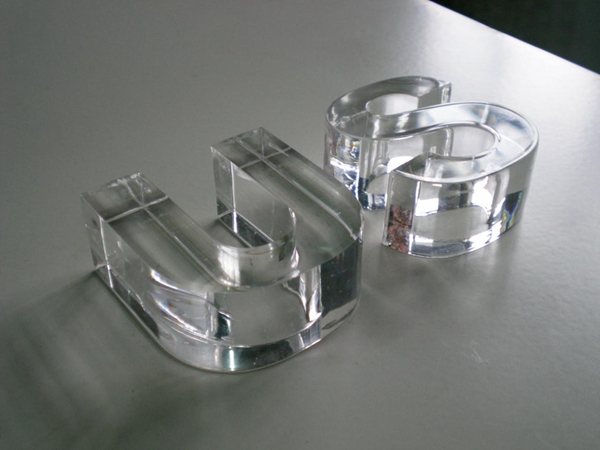

Acrylic	30	0.09-0.12m/min	Oxygen	--
MDF	20	0.6-0.9m/min	Oxygen	--
