Automatic tool changer wood cnc router

Product Attributes :

1300*2500*200mm working size,

T type heavy duty, thicken and bigger welded steel tube frame and steel gantry.

Using Taiwan HIWIN #25 square linear guide for XYZ axis, 10 times using life than common guide,

Germany SIEMENS 808D control system(SYNTEC control for option)

Germany SIEMENS 1KW servo motor and driver( Japan YASKAWA servo motor for option)

9kw Italy HSD ATC air cooling spindle, the best brand in the world,

11kw Taiwan DELTA inverter, best brand in Asia,

Germany ball screw for Z axis,

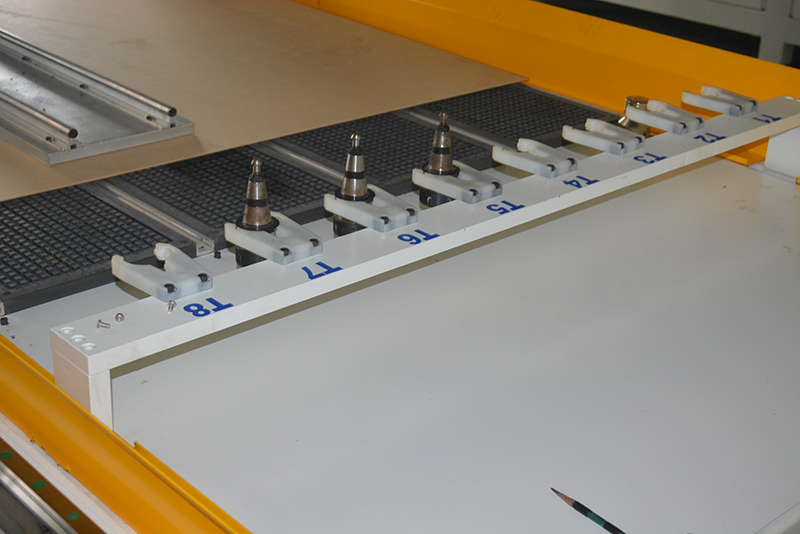

Auto tool sensor and auto tool changer,

Product Description

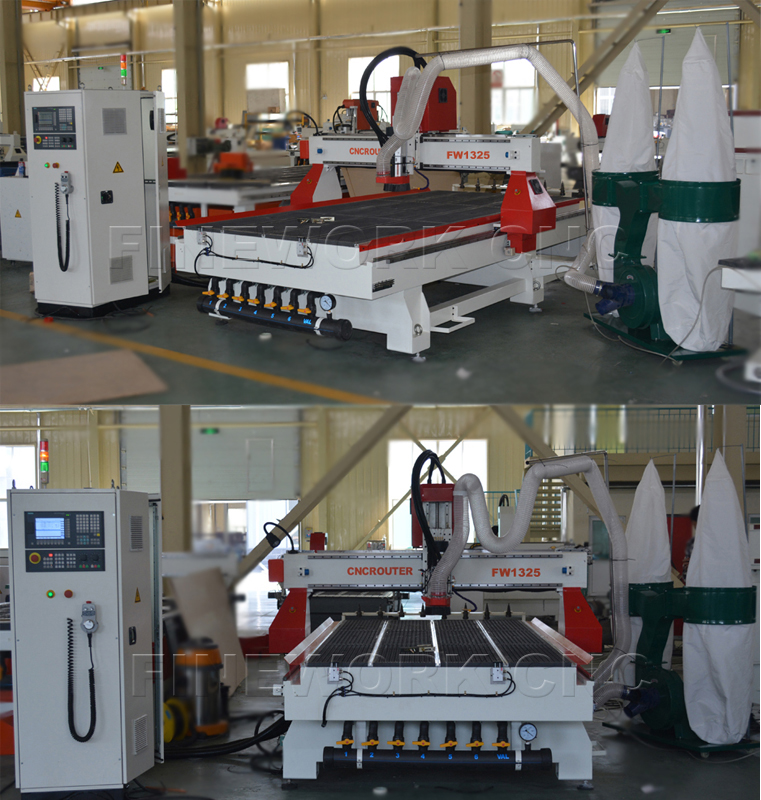

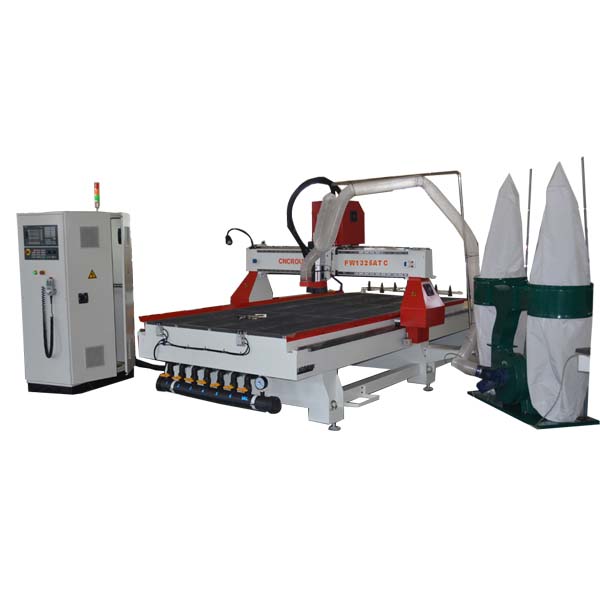

Machine Picture:


Parameter:

Brand	FINEWORKCNC
Model	FW1325ATC
Frame	Thicken Steel Square Tubes 8mm
Working Table	Bakelite table with aluminumT slot,vacuum table
Working Area	13002500200mm
Guide rail	Taiwan Hiwin linear bearing 30mm on x,y,z axis

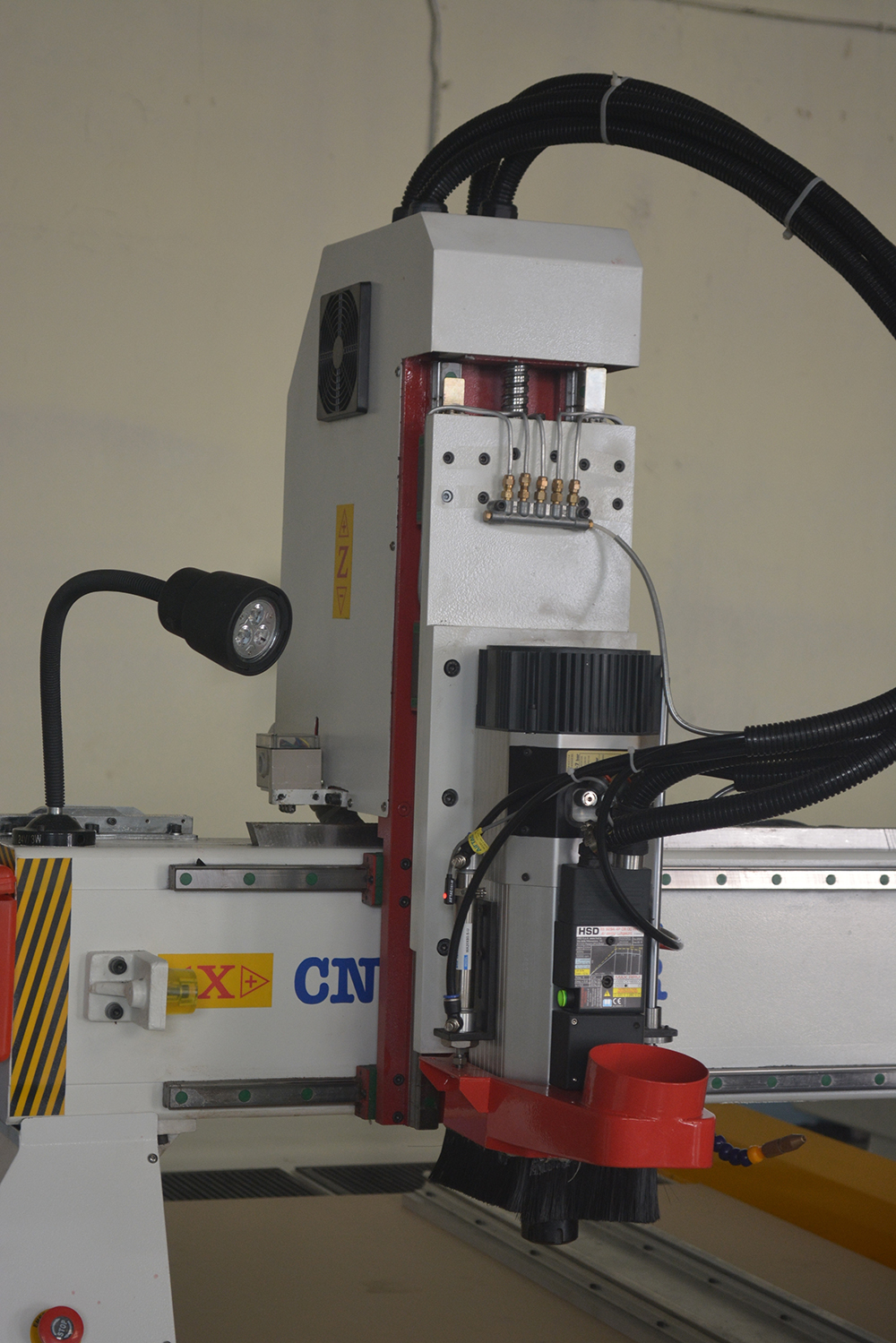

Spindle	9kw Italy HSD Aircooling Spindle

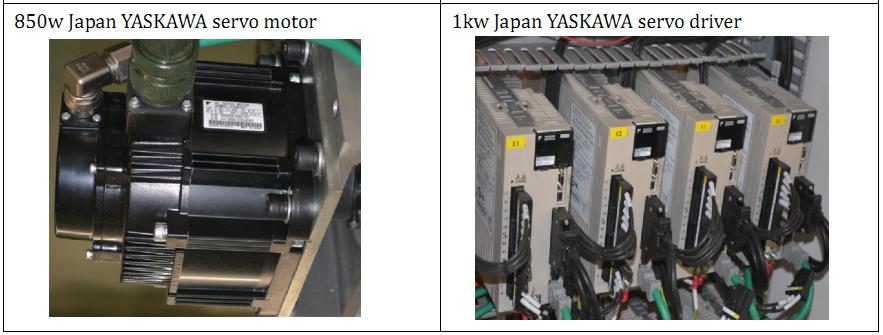

Motor	Japan Yaskawa 850w Servo Motor
Inverter	11kw Japan omron/Taiwan Delta Inverter
Working Speed	30m/m
Working accruacy	0.05mm

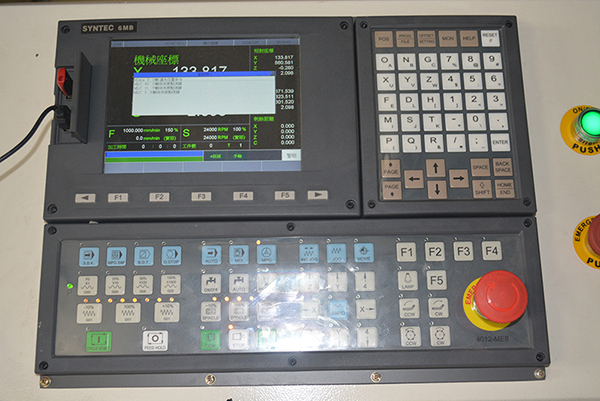

Control System	Taiwan Syntec 6MB control system
Command Dictate	G code
Software	Artcam/Ucancam/type3/Alphacam
Voltage	380V/50HZ/3 Phase
Gross Weight	2050kg
Package Size(LWH)	3.72.31.9m
