Application Materials:
Non metal Material such as
Craft gifts, furniture, leather garments, advertising signs, model making, food packaging, electronic components, pharmaceutical packaging, medicine packaging, textile, rubber plate, wood, bamboo products, acrylic plate, plastic, organic glass, tile, marble, jade, crystal, shell,etc, and all kinds of nonmetallic materials.
Machine parameter :
NO | Model | FW-10W/20W/30W/50W |
1 | Laser power | Fiber 10W/20W/30W/50W air cooling |
2 | Working area | 110*110mm(option:150*150mm200*200mm,300*300mm) |
3 | Laser Wavelength | 1064nm |
4 | Response time | 0.5ms |
5 | Frequency of pulse | 20-100KHz |
6 | Max marking depth | ≤0.4mm |
7 | Marking speed | ≤8000mm/s |
8 | Marking lines | 1-10 lines(in the marking area) |
9 | Minimum line width | 0.01mm |
10 | Minimum character | 0.15mm |
11 | Repeatability accuracy | ±0.002mm |
12 | Resolution ratio | 0.1mm |
13 | Marking content | Text,pattern,date,bar code,etc |
14 | Operation system | Microsoft Windows XP or Windows 2000 |
15 | Control software | EZCAD control software |
16 | Graphic format supported | bmp, jpg, gif, tga, Ai, bmp, dst, dxf, plt,png,tif,ai,dxf,dst,plt,etc. |
17 | Unit power | ≤1.2KW |
18 | Operation temperature | 5°C-40°C |
19 | Relative moisture | ≤ 90%,no fog |
20 | Supply Voltage | 220V/50Hz/10A |

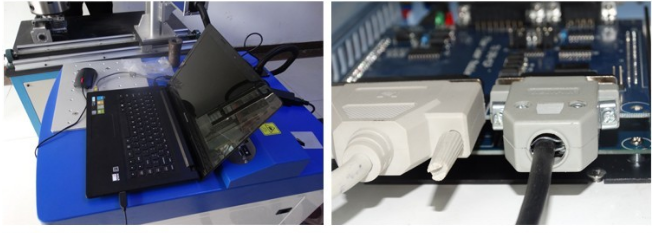

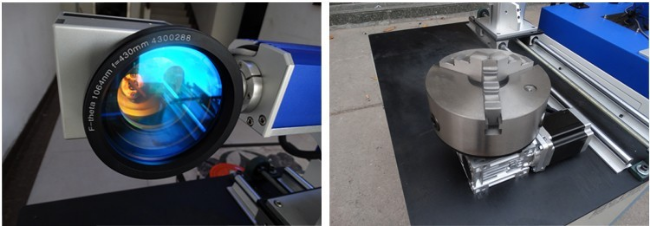

Machine spare part details

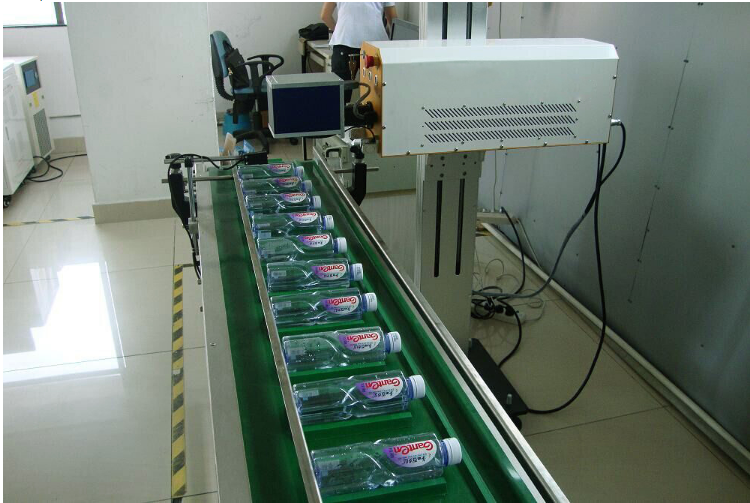

Machine samples
