Jinan Finework CNC Machinery Co.,Ltd
1. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction.
2. High pulse repeating rate and stable power bring high speed laser marking.
3. High speed 2-3 times over than traditional diode pumped marking machine.
4. Air-cooling smart machine size!
5. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%
6.Suitable for various fiber laser generators.

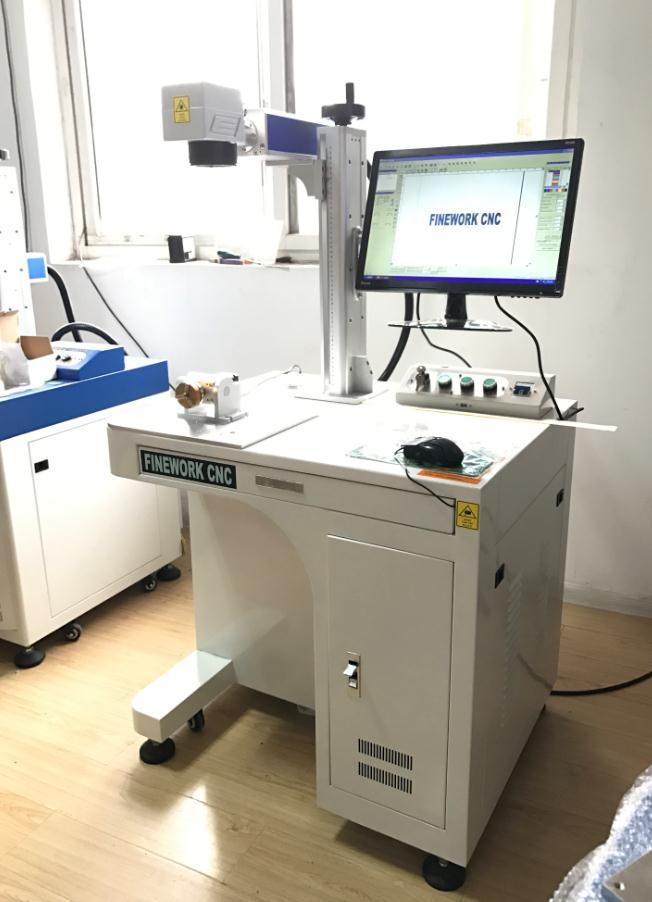

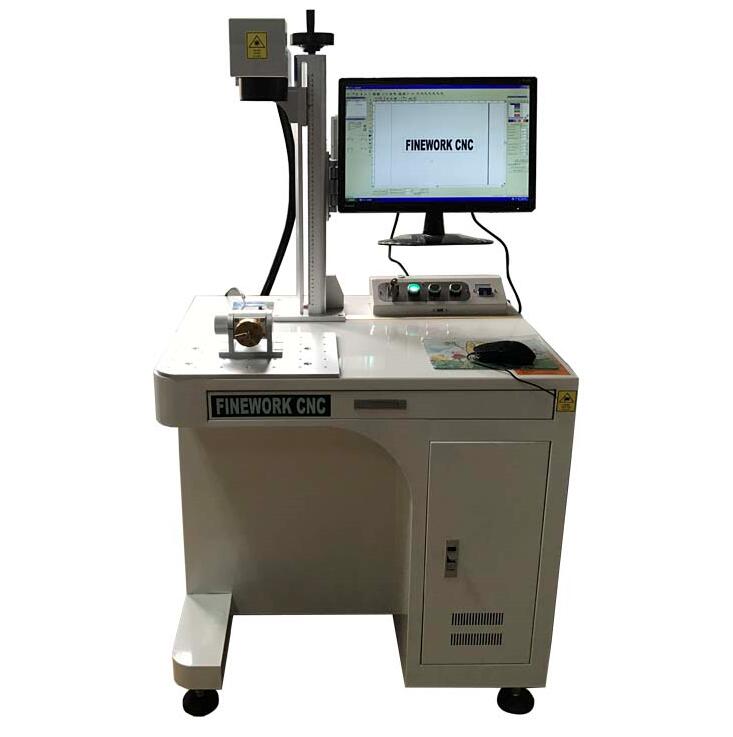

Machine picture:
Parameter:
Laser power | 10W | 20W | 30W | 50W | Option |
Laser wave length | 1064nm | ||||
Sandard marking area | 110*110mm | ||||
Optional marking area | 200*200 300*300 customerized aviliable | ||||
Minimum character | 0.15mm | ||||
Marking speed | ≤7000mm/s | ||||
Marking depth | 0.01~1mm | ||||
Repeat frequency | 20KHZ~80KHZ | ||||
Output laser beam quality | M²≤2 | ||||
Focus spot diameter | < 0.01mm | ||||
Control interface | Standard USB port | ||||
Graphic format supported | BMP,JPG,AI,PLT,DST,DWG ETC. | ||||
Marking format | Text,symbols,graphics,images,barcodes,two-dimension bar. date marking,batch number,serial number etc. | ||||
Operating temperature | 0-45°C | ||||
Cooling way | Built-fan for air cooling | ||||
Working voltage | 220V-50Hz(single phase)or 110V-60Hx(single phase) | ||||
Computer | Including laptop cpmputer per set(software installed) | ||||
Laser marking oftware | Ezcad(English version)(the other optional software please contact us) | ||||
General power | <0.5KW | ||||
Working environment | Clean and dust-free or dust less | ||||
Working condition | 5%~75%,free of condensed water | ||||

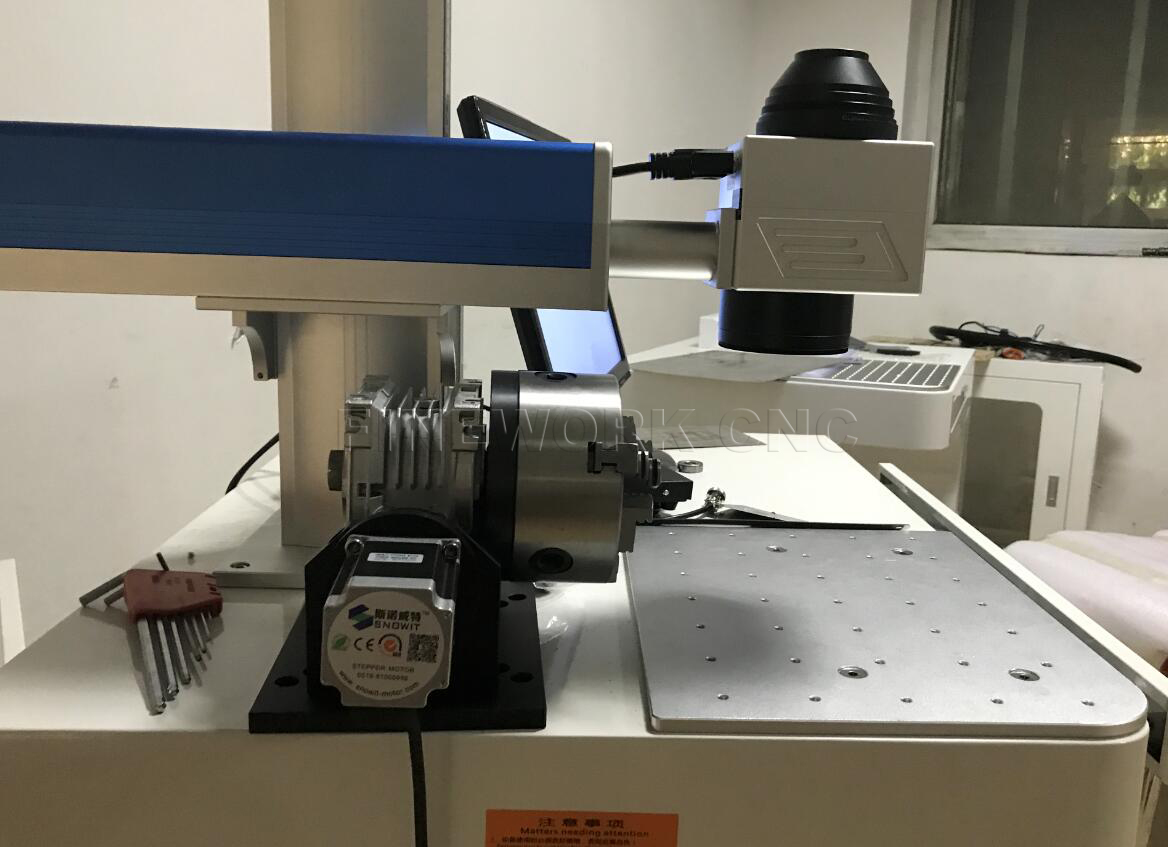

Optional device | Rotary marking attachment ;X/Y adjustable table | ||||
Application:
Electrical Engineering and Electrical part and component
Mobile (Cover,battery,keyboard, I Phone Case)
Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
Building materials,PVC pipe
Car motor car spare part ,Insturment and meters and cutting tool
Plastic case,aviation and aerospace,
Military product,hardware fitting and accessory,sanitary appliance
Food and beverage ,Medicine package and medical instrument,solar PV industry
