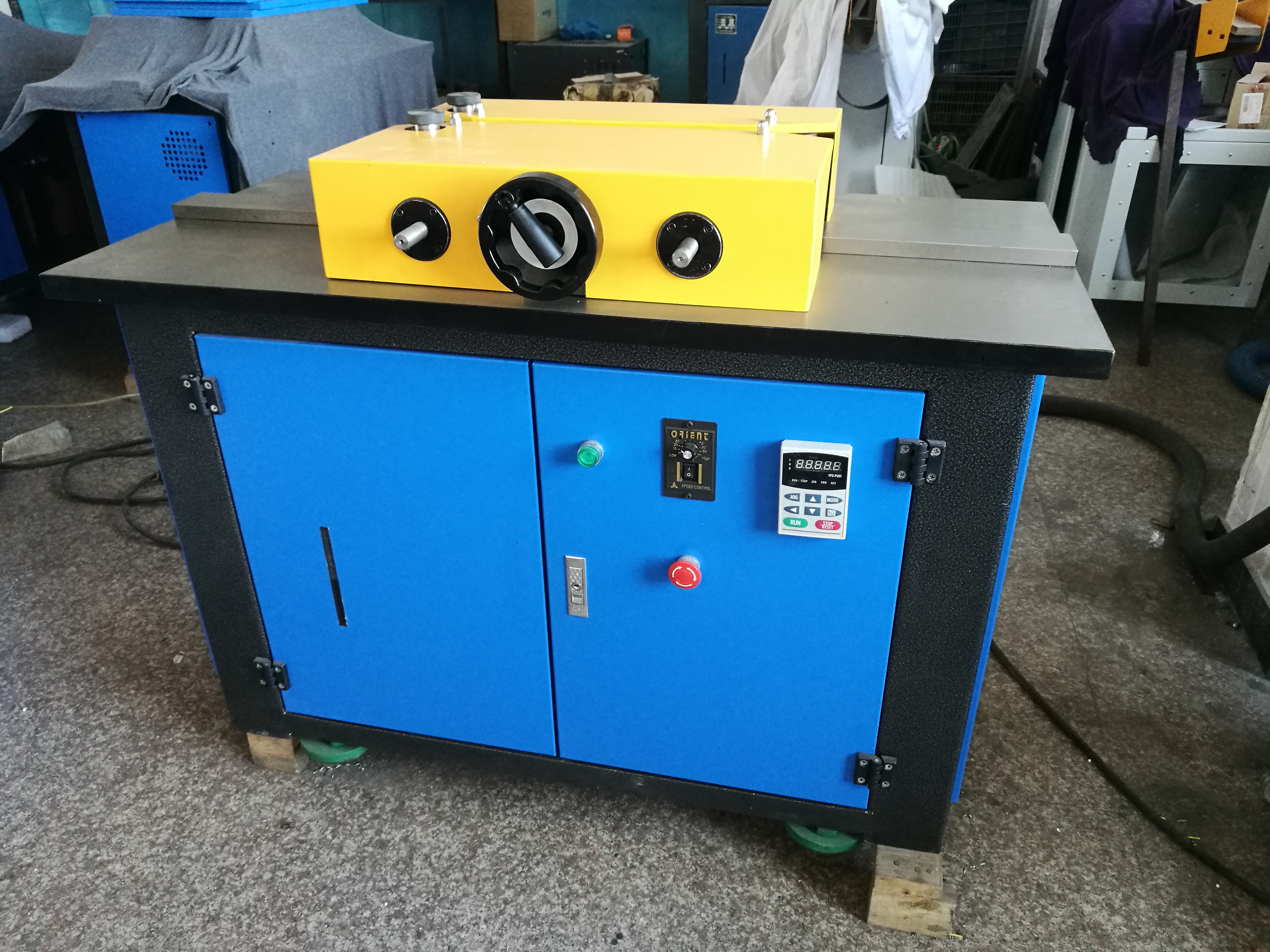

Large sheet acrylic polishing machine FW-1500

Machine Specification

Max material thickness

Customized max 80mm

Principal axis ending heat

<0.01mm

Cutting speed

0-1000mm/min

Spindle RPM

2000-20000 rpm

Work bench beeline error

<0.05mm

Invert

Taida

Feed Speed(infinitely adjustable)

Standard 700mm/min

Total machine power

5.5KW

Electrical requirements

220V /380V

Machine dimensions

Length (side to side)

1150mm

Width (front to back)

550 mm

Height

950 mm

Shipping weight

480 Kg

Shipping dimensions

Machine 1240*650*1000mm

Extra lenth of machine table

Include extra length for table to be 1590MM
