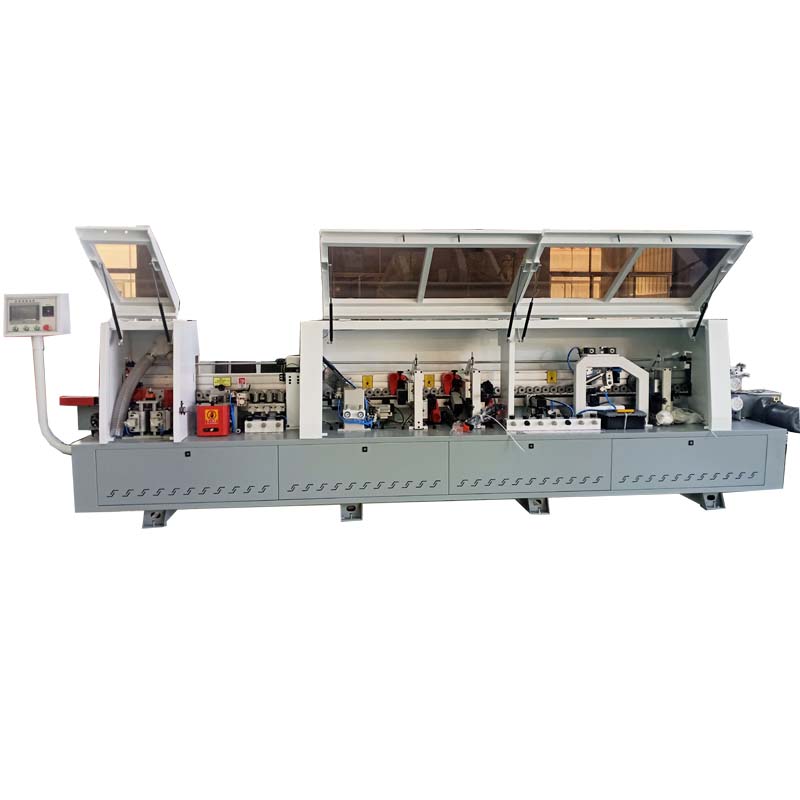

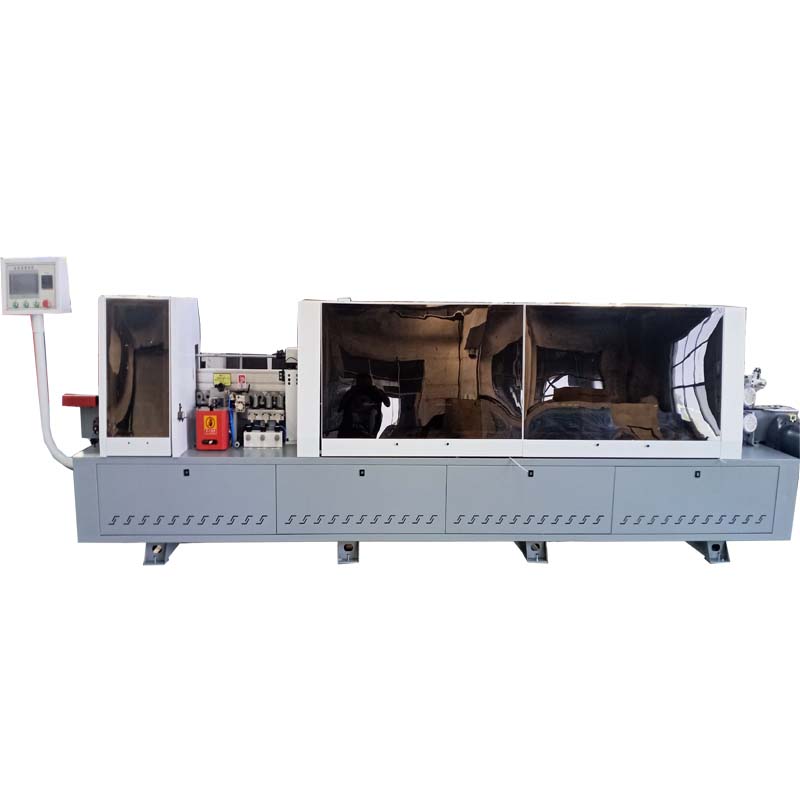

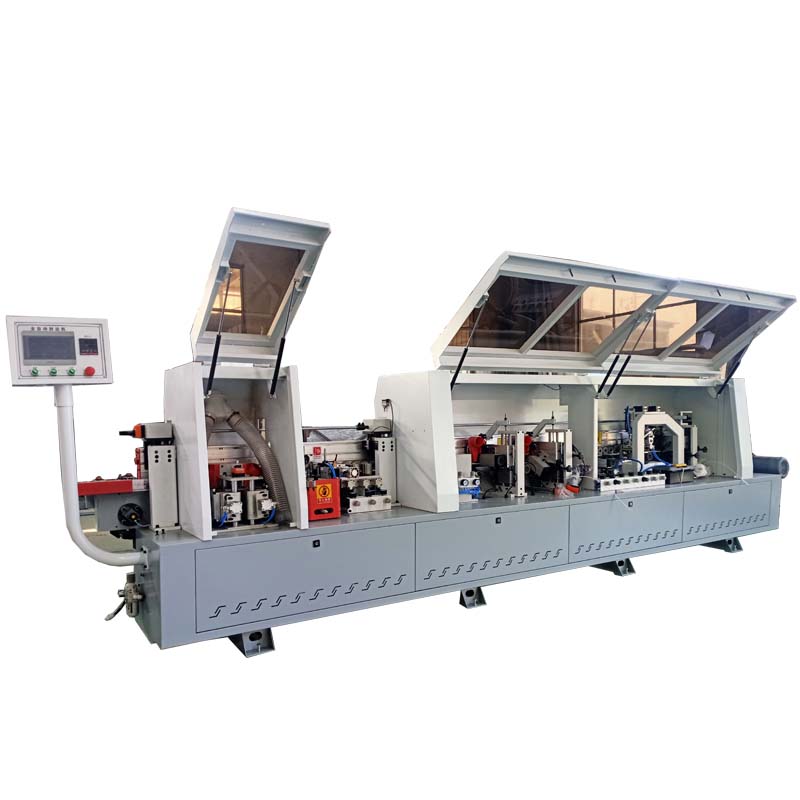

High quality automatic edge banding machine for wooden furniture making edge bander
1.Pre-milling equipment with double trimming blades works on the waved effect that is caused by precise sliding table saw.
2.The gluing mechanism adopts a special structure to gelatinize the plates and costing materials unifiormly, ensure a more solid
conglutination.
3.End trimming mechanism through a precise guide track movement, adopt automatic tracking and high frequency motor fast cutting
structure to ensure the cutting surface smoothly.
3.Rough/Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high frequency motor
fast cutting structure to ensure the trimming plates smoothly.
4.Corner trimming unit is to make the board ending more smooth and aesthetic.
5.Scraping unit for a perfect finishing of the applied edge.
6.The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more smooth surface.
| Type | FW-360A | |
| Banding tape thickness | 0.4-3 mm | |
| Banding tape width | 12-55 mm | |
| Work piece thickness | 10-60 mm | |
| Work piece length | >=100 mm | |
| Work piece width | >=50 mm | |
| Heating power | 1.8 KW | |
| Feeding motor power | 2.2 KW | |
| Glue spreading power | 0.55 KW | |
| End trimming power | 0.37 KW x 2 | |
| Rough trimming motor power | 0.75 KW x 2 | |
| Fine trimming power | 0.75 KW x 2 | |
| Polishing motor power | 0.18 KW x 2 | |
| Feeding speed | 10-23 m/min | |
| Air pressure | 0.8 Mpa | |
| Overall dimension | 4570x850x1520 mm | |
| Packing size | 4600x880x1580 mm | |
| N.W. | 1500KGS | |
| G.W. | 1600 KGS | |
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provide engineer oversea service.
1.Our Payment term?
L/C and T/T or other ways.
2.Delivery Time?
30 days after down payment.We have our own forwarder and we have long term cooperation with each other and have closely relationship with each other,so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of one shift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situation during warranty period, and all the round-trip courier transportation cost of damaged/repaired replacement parts in warranty period should be borne by the buyer.
Wearing parts are not included.
(3)24 hour technical support by email or calling
(4)User-friendly English manual for machine using and maintaining
