Promotion cnc router 1212

Product Attributes :

1)wholly iron cast frame
2)advanced designation and device
3)high accuracy
4)mini and cheap

Product Description

We are manufacturer and specialized in cnc router ,laser engraving and cutting machine,

plasma cutting machine and cutter plotter, with 10 years production and sales experience

in this field and 8 year export and service experinece for overseas’ buyers.

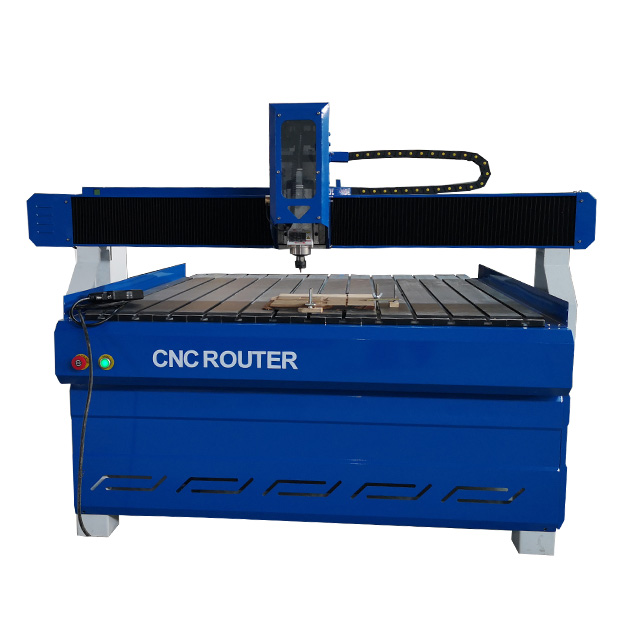

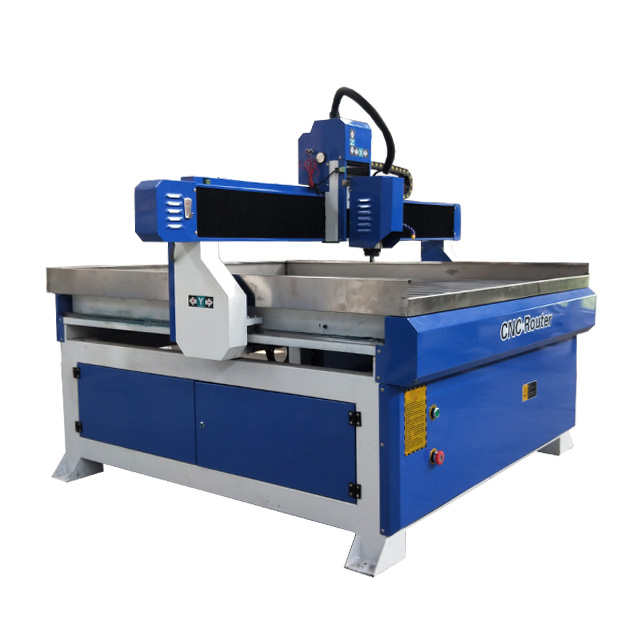

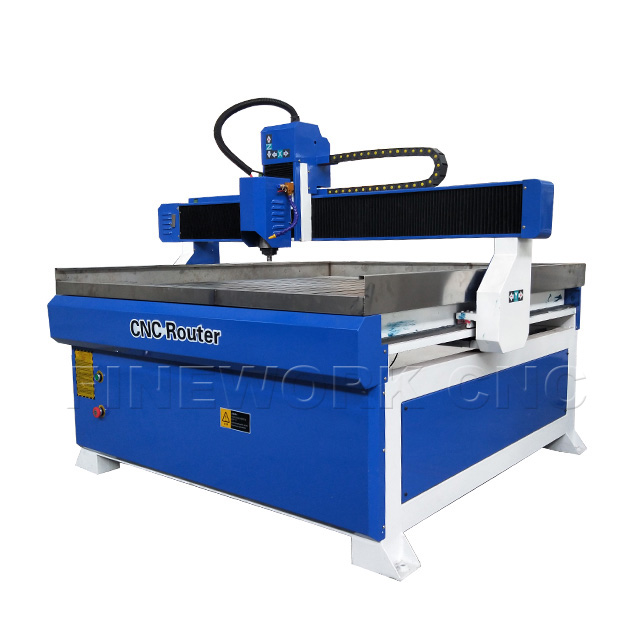

Promotion cnc router 1212

Product Description

Specifications-
alibaba promotion cnc router 1212

1)wholly iron cast frame
2)advanced designation and device
3)high accuracy
4)mini and cheap

Features and Specialtie-

1.high accuracy ball bearing guide screw of taiwan,minimize the slit.
2.imported linear rail,self lubricating glide.
3.our routers have the features of recarving after stop and the power failure may be restored.
4.unique preservation way of the zero point.
5.use for long time and no distortion.
6.this type is also suitable for advertisement.
7.Iron cast wholly frame, double- screw auto eliminating ball screw, floor-type linear guide transmission.
8.High power water cooling brushless motor
9.stepper motor could enhance work efficiency.
10.break-point memory pointesfor 10 pcs, reducing material waste.
11.High compatibility, applicable for CNC software: type3, Artcam, Castmate, Pore, Weitai, variable CAD/CAM etc. It is easily to process relief sculpture, shadow carving, three dimension characters in fancy style etc.

Applicable material-

Microlite,.natural grantie, seeing stone, bowlder, marble, rostone, glass, grass, aluminum, iron, plastic and wood etc.

Applicable industry-

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

NO.	Description	Parameter
1	X,Y,Z Working Area	600x900x100mm
2	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
3	X,Y,Z repositioning Positioning Accuracy	±0.05mm
4	Lathe Structure	Cast Aluminum/Cast Iron/with mist sprayer&flume
5	X, Y Structure	Shaft Linear Bearings and Ball Screw
6	Z Structure	Ball Screw
7	Max. Consume power	3.0Kw
8	Max. Motion Speed	0-6000mm/min
9	Max. Working Speed	0-3000mm/min
10	Spindle Power Motor	1.5kw water-cooling spindle
11	Spindle Speed	0-24000RPM
12	Drive Mode	Stepper Motor
13	Resolution	<0.01mm
14	Collet	ER11
15	Command	G code, uoo, mmg, plt,nc
16	Control System	NC Studio or DSP offline
17	Interface	USB
18	Flash Memory	128M
19	Software	Type3/Ucancam V9/Artcam
20	Working Voltage	AC220V/380V, 50/60Hz
21	Running circumstance	Temperature: 0℃~45℃ Relative humidity: 30%~75%
22	Packing Size	1420x1030x1160mm	1520x1200x1250mm
23	Net Weight	165KG	220KG
24	Gross Weight	202KG	250KG
All parameters above subject to change without prior notice
