Jinan Finework CNC Machinery Co.,Ltd
3D laser engraving machine adopts industrial design, which can engrave one big block of crystal or several small blocks at the same time. Its products can give person crystal-clear and fine noble visual image, that' s elaboration for your home decoration
Technical Index:
| Finework 3d laser engraving machine | |
| laser / laser wavelength | semiconductor diode/ 532nm |
| laser repetition frequency | 4000hz |
| marking speed | 220,000dots/min. |
| max. marking scope | 300*400*150mm |
| focus diameter/resolution | 0.02nm/ 800DPI |
| working | with high speed scanner+X+Y+Z (5 axis) |
| positioning accuracy | 10μm |
| continuous working time | 24 hours |
| coolinf/quality warranty | air colling |
| lifetime | more than 20,000hours |
| gross power/noise | 1.5KW/ 50db |
| power requirement | single phase 220V or 110 V (+/- 10%), 50Hz or 60 Hz |
| software | self reseach software for 3D, 2Ddots cloud, and for control machine |
| suitable materials | Crystal, glass, hard plastic, acrylic, metal, etc. |
working environment | temperature10-28°C, humidity less than 70%, non-condensed |

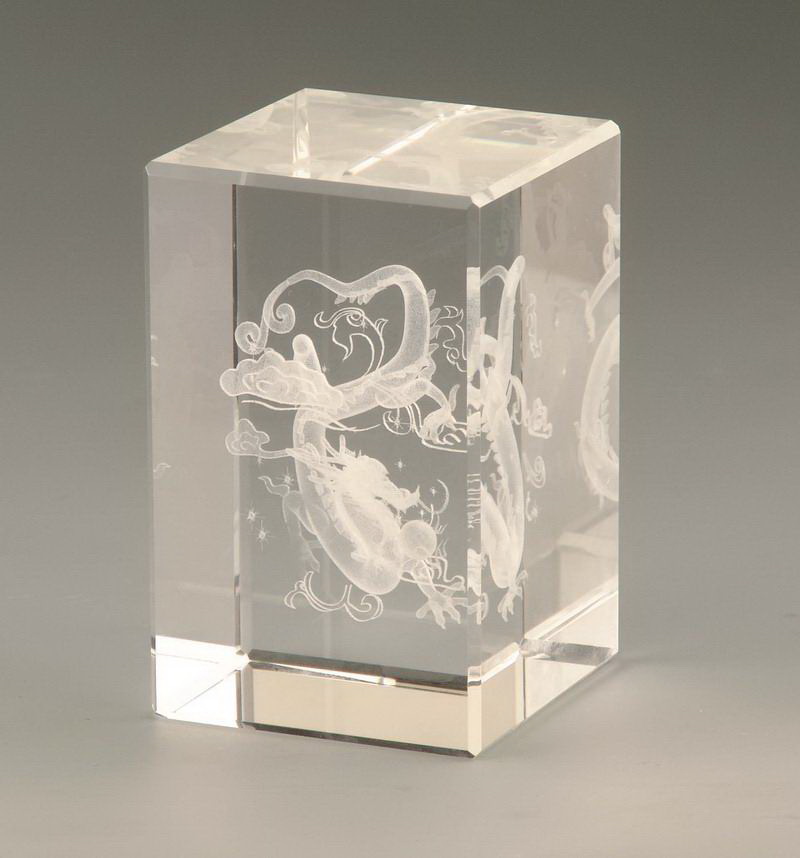

Machine sample :
