Adjusting the laser machine light path

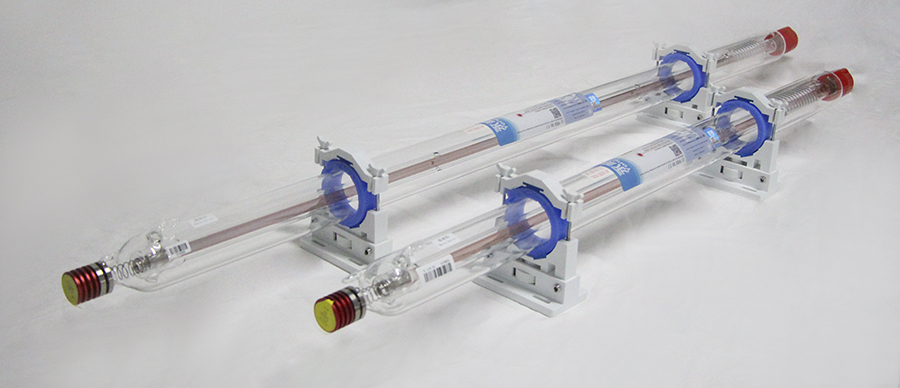

Laser Tube Introduction

From the light road map

1. Laser tube

2. The first piece mirror

3. The second piece mirror

4.The third piece of mirror focusing mirror

5. 6. Processing Objects

7. Working platform

That light guiding optical system. Laser engraving machine adopts aviation optical systems. The whole system is managed by a laser, three mirrors, focusing mirror and associated adjusting means. These are the main parts of the machine.

The optical path of the engraving and cutting are closely related. Therefore, when the optical path adjustment must be careful and cautious.

Note: Before the machine is working to ensure good water circulation, otherwise the laser tube damaged.
